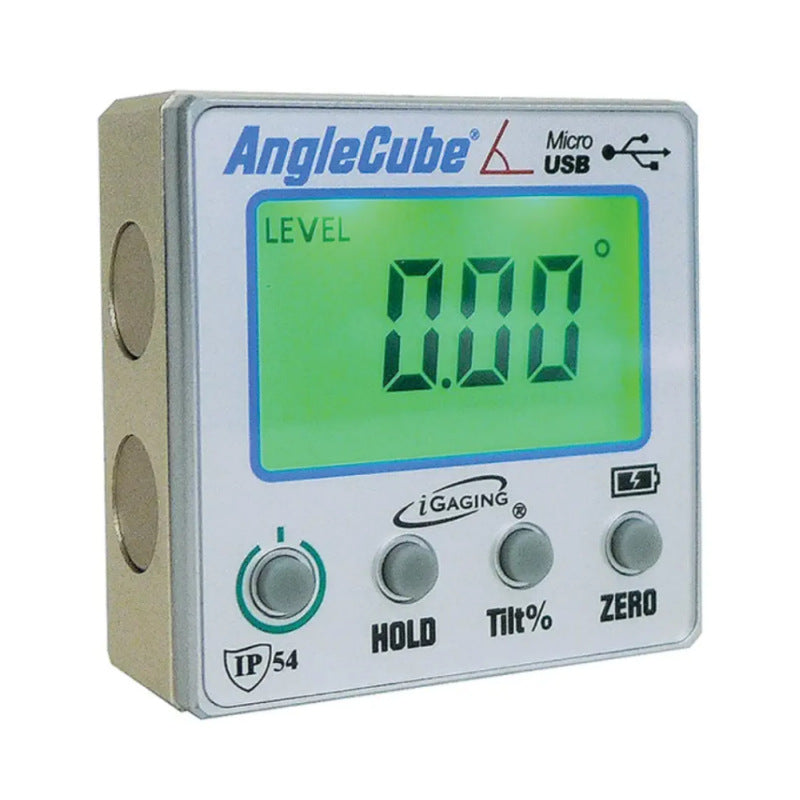

AngleCube Digital Angle Gauge Backlit

AngleCube Digital Angle Gauge Backlit - 3rd Generation

The AngleCube will help you adjust & set the tilt angle of any saw blade, machine, table or fence in the shop to within 1/20°. An internal sensor also lets the unit measure absolute level. LCD characters are 1/2" high and the display automatically inverts when the unit is turned upside down. The display is backlit so it's easy to read - even in areas with less than ideal lighting.

Magnets located on three sides of the unit give maximum placement flexibility. Hold function locks in reading. Case measures 2.13" square x 0.91" thick. Built-in battery charges with the included micro USB cable.

Features

• iP54 protective rating: Moisture and dust resistance
• Backlit display for easy viewing
• Ultra-Response measure speed
• Magnetics on bottom and 2 sides
• Precision digital level sensor
• Anodized finish
• Alloy aluminum body
• Micro USB data output port (Cable for charging or data output option included)
• Supplied in protective pouch
• Built-in rechargeable battery

Specifications

• Tilt range: 0-90°
• Resolution: 0.05°
• Accuracy: ±0.2°
• Repeatability: 0.1°
• Dimensions: 2.13" x 2.13" x 0.91"
• Weight: 2.7 oz
