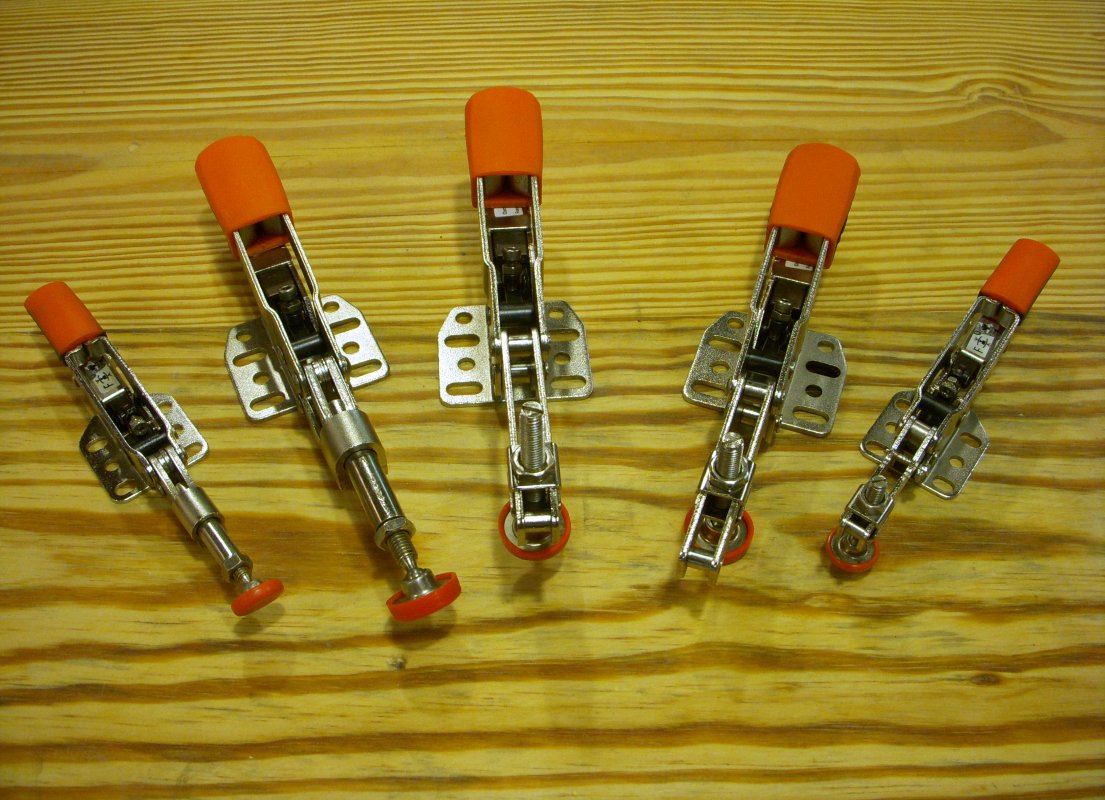

Bessey Auto-Adjust Toggle Clamps

Bessey's Auto-Adjust Toggle clamps will revolutionize the way you use toggle clamps. Unique among toggle clamps, they automatically adjust to different workpiece thicknesses while maintaining constant clamp pressure. An adjustment screw sets the clamping force anywhere from 25 to 550 lbs, depending on the requirements of the job.

Since you don't have to adjust for stock thickness, you'll be able to work faster. Since each Bessey Auto-Adjust Toggle clamp handles a range of clamping thicknesses, each one will replace a range of ordinary toggle clamps.

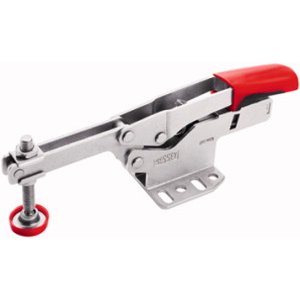

STC-HH20 Horizontal Toggle Clamp

• Clamping Capacity – 0-20mm (0-13/16")
• Clamping Force – 25-250 lbs.
• Holding Capacity – 450 lbs.
• Clamping Pad Diameter – 19.5mm (3/4")
• Maximum Reach – 35mm (1-3/8")
• Baseplate – 45mm x 42mm (1-3/4" x 1-5/8")

STC-HH50 Horizontal Toggle Clamp

• Clamping Capacity – 0-40mm (0-1-9/16")
• Clamping Force – 25-550 lbs.
• Holding Capacity – 700 lbs.
• Clamping Pad Diameter – 24.5mm (7/8")
• Maximum Reach – 60mm (2-3/8")
• Baseplate – 53mm x 60mm (2-1/4" x 2-3/8")

STC-HH70 Horizontal Toggle Clamp

• Clamping Capacity – 20-60mm (13/16" - 2-3/8")
• Clamping Force – 25-550 lbs.
• Holding Capacity – 700 lbs.
• Clamping Pad Diameter – 24.5mm (7/8")
• Maximum Reach – 60mm (2-3/8")
• Baseplate – 53mm x 60mm (2-1/4" x 2-3/8"

STC-IHH15 Inline Toggle Clamp

• Clamping Capacity – 0-10mm (0-3/8")
• Clamping Force – 25-250 lbs.
• Holding Capacity – 450 lbs.
• Clamping Pad Diameter – 19.5mm (3/4")
• Baseplate – 45mm x 42mm (1-3/4" x 1-5/8")

STC-IHH25 Inline Toggle Clamp

• Clamping Capacity – 0-16mm (0-5/8")
• Clamping Force – 25-550 lbs.
• Holding Capacity – 700 lbs.
• Clamping Pad Diameter – 19.5mm (3/4")
• Baseplate – 53mm x 60mm (2-1/4" x 2-3/8")

Additional Information

Read Jeff Fleisher's review of the Bessey Auto-Adjust Toggle Clamps.

Free Table Saw Tenon Jig Plan — This jig uses a toggle clamp to safely and securely hold your workpiece while cutting a tenon. It's a simple example of toggle clamp use in the shop.
