Record Power
CamVac 2000w Wall-Mounted Dust Extractor CGV286-3W
CamVac 2000w Wall-Mounted Dust Extractor CGV286-3W
Couldn't load pickup availability

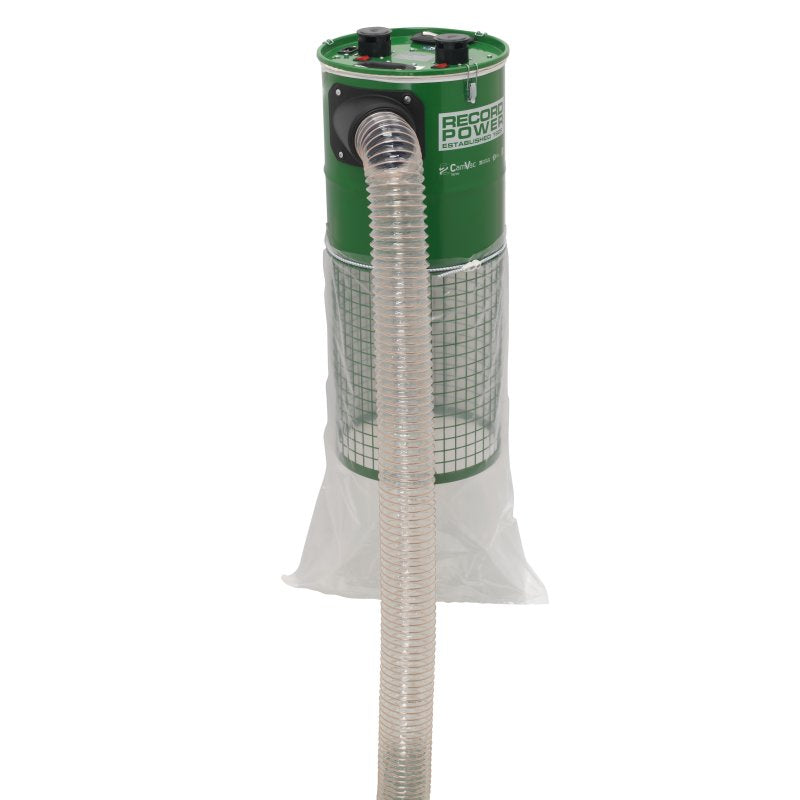

The CGV-286-33 WALL Dust Extractor offers an impressive 39 gallon capacity while maintaining a very compact profile. The waste is collected in reusable bag which is fitted to the exterior of a strong steel cage to retain its shape. The cyclonic neutral vane theory technology draws the waste into the drum with great force and directs it around the outside edge, keeping the filters cleaner and allowing the waste to fall to the bottom of the bag. In addition to wood dust and chips, it can tackle workshop debris, nails, and many other types of waste. It features the CamVac triple filtration system for effective removal of fine particles.
In order to take advantage of the CGV-286-33 WALL's large capacity, it needs to be mounted on a wall or the optional stand (sold separately).

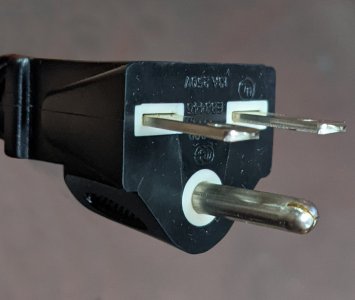

PLEASE NOTE: This dust extractor runs on 230v power. It comes with a NEMA 6-15P plug. (See the picture above.) You will need a 230v 15a or 20a outlet with the correct configuration to use this dust extractor.
Features
- Twin Motor
- Three Stage Filtration
- Cyclonic Inlet
- Acoustic Outlet
- Filtration: 0.5 microns
Specifications
- Capaciity — 39 gallons (150 liters)
- Air flow — 228 cfm (108 liters/second)
- Filtration — 0.5 microns
- Inlet Port — 4"
- Motors — 1.3hp x 2 (1000w x 2)
- Power — 230 volt, 10 amp
- Size — 14-1/2" W x 16-1/4" D x 34-7/16" H
(370mm W x 412mm D x 875mm H) - Weight — 28.6lbs (13kg)
Included
- CGV-286-33 WALL Dust Extractor
- DX100X Easy-Fit Cuff
- 4" x 6ft (100mm x 2M) Hose
- Bayonet Inlet Fitting
- Wall Mounting Bracket
- 150L (39 gallon) Plastic Waste Bag
- Bungee Cord (to hold on the plastic bag)
- One Complete set of filter bags
