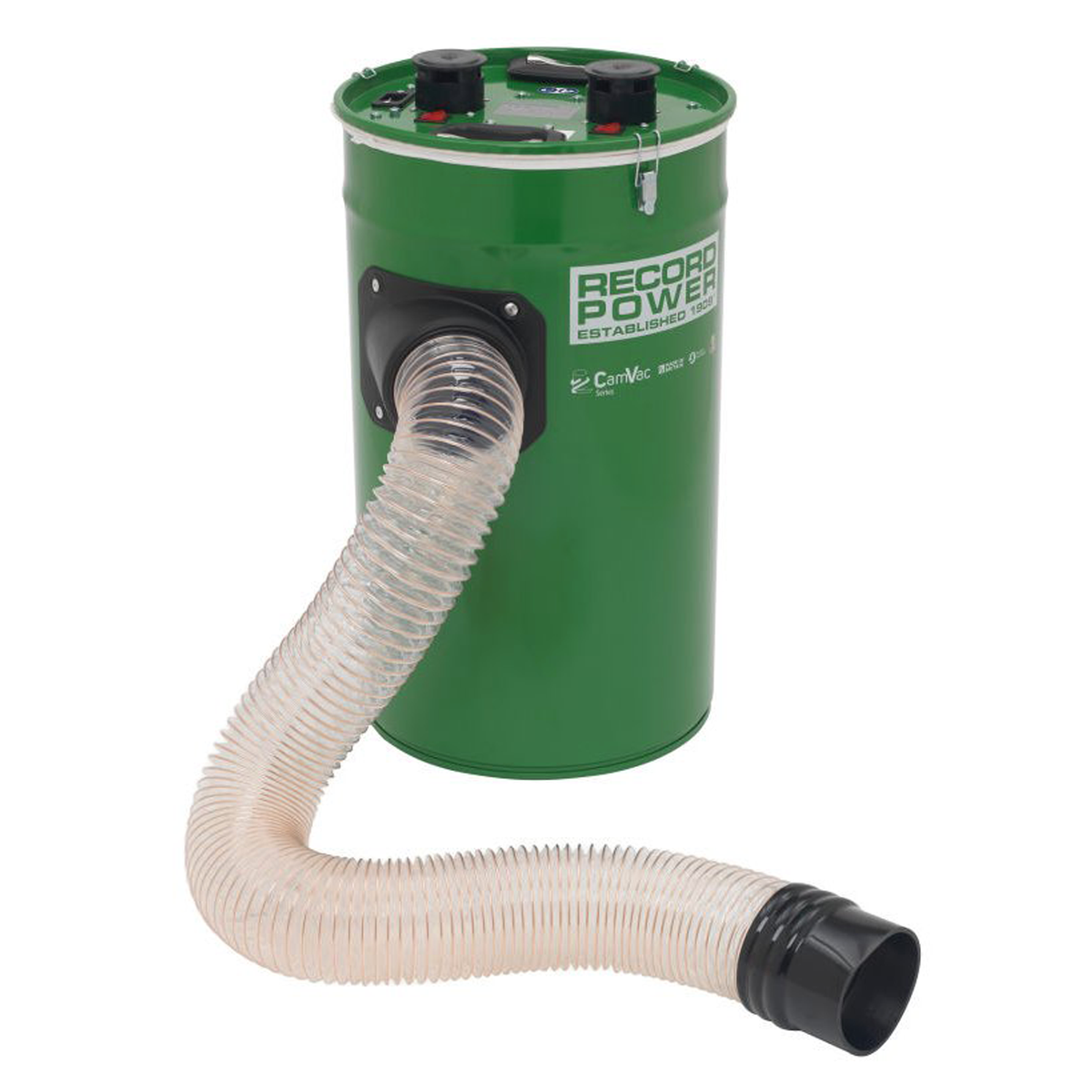

CamVac 55L 2000w Dust Extractor CGV336-4

The CGV336-4 Dust Extractor offers an impressive 14-1/2 gallon capacity while maintaining a very compact profile. In addition to wood dust and chips, it can tackle workshop debris, nails, and many other types of waste. It features the CamVac triple filtration system for effective removal of fine particles. The cyclonic neutral vane theory technology draws the waste into the drum with great force and directs it around the outside edge, keeping the filters cleaner and allowing the waste to fall to the bottom of the drum as it loses momentum. The lid features an acoustic outlet for the motor which, with the optional hose connected to it, directs the sound of the motor away from the machine and greatly reduces excess noise in the workshop.

At only 28.6 lb, the CGV336 is relatively easy to move around the shop. Once it's filled with dust, it will be substantially heavier. To make it easier to move the full extractor, we offer a caster set that mounts on the bottom of the drum.

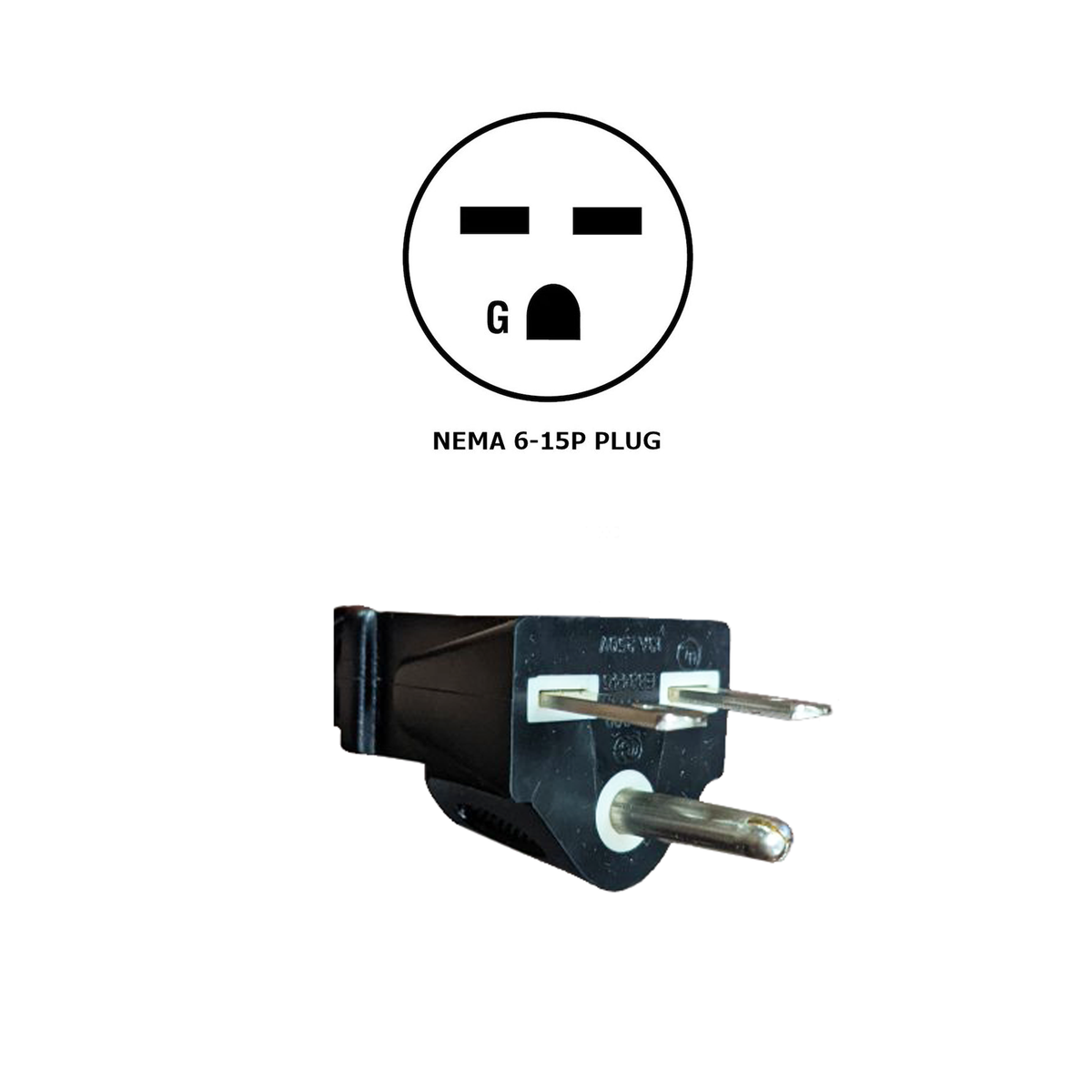

PLEASE NOTE:  This dust extractor runs on 230 V power. It comes with a NEMA 6-15P plug. (See the picture to the right.) You will need a 230 V 15 A or 20 A outlet with the correct configuration to use this dust extractor.

Features

• Twin Motor
• Three Stage Filtration

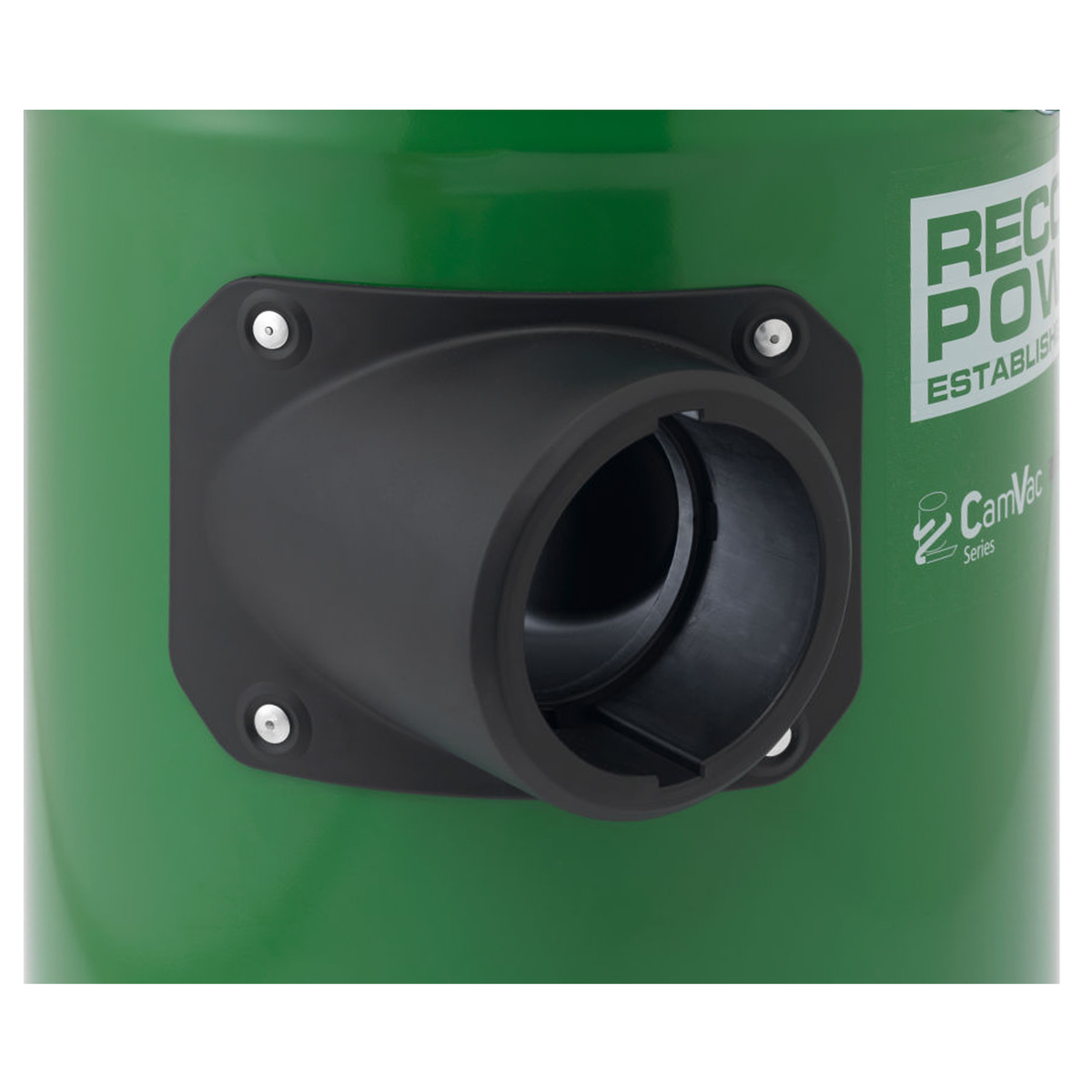

• Cyclonic Inlet
• Acoustic Outlet
• Filtration: 0.5 microns

Specifications

• Capaciity - 14-1/2 gallons (55 liters)
• Air flow - 228 cfm (108 liters/second)
• Filtration - 0.5 microns
• Inlet Port - 4"
• Motors - 1.3 hp x 2 (1000 W x 2)
• Power -  23 V, 10 A
• Size - 14-1/2" W x 16-1/4" D x 24-1/2" H
  (370 mm W x 412 mm D x 624 mm H)
• Cord - 13' (4 m)
• Weight - 28.6 lb (13 kg)

Includes

• CGV336-4-US Dust Extractor

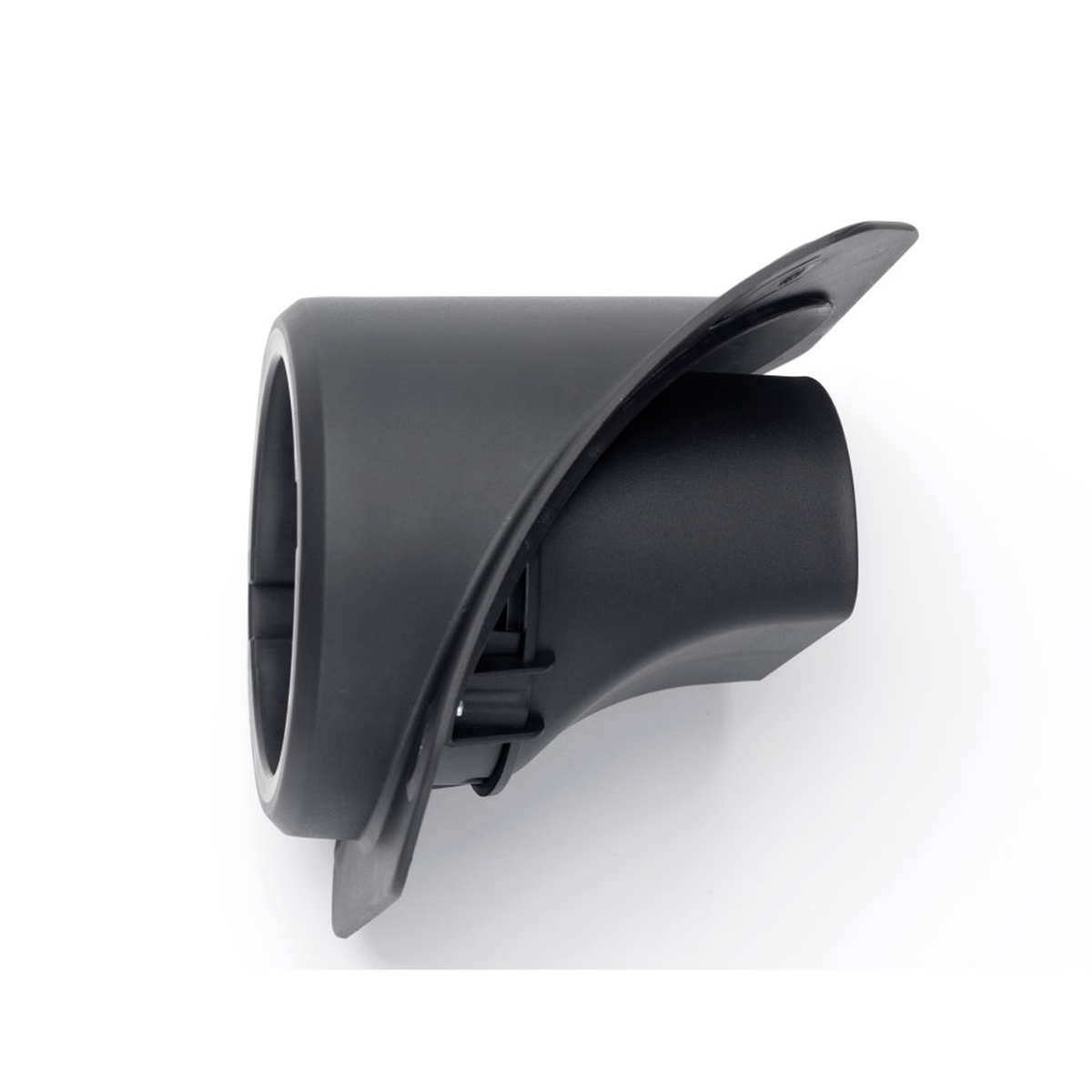

• DX100X Easy-Fit Cuff
• 4" x 6' (100 mm x 2 m) Hose

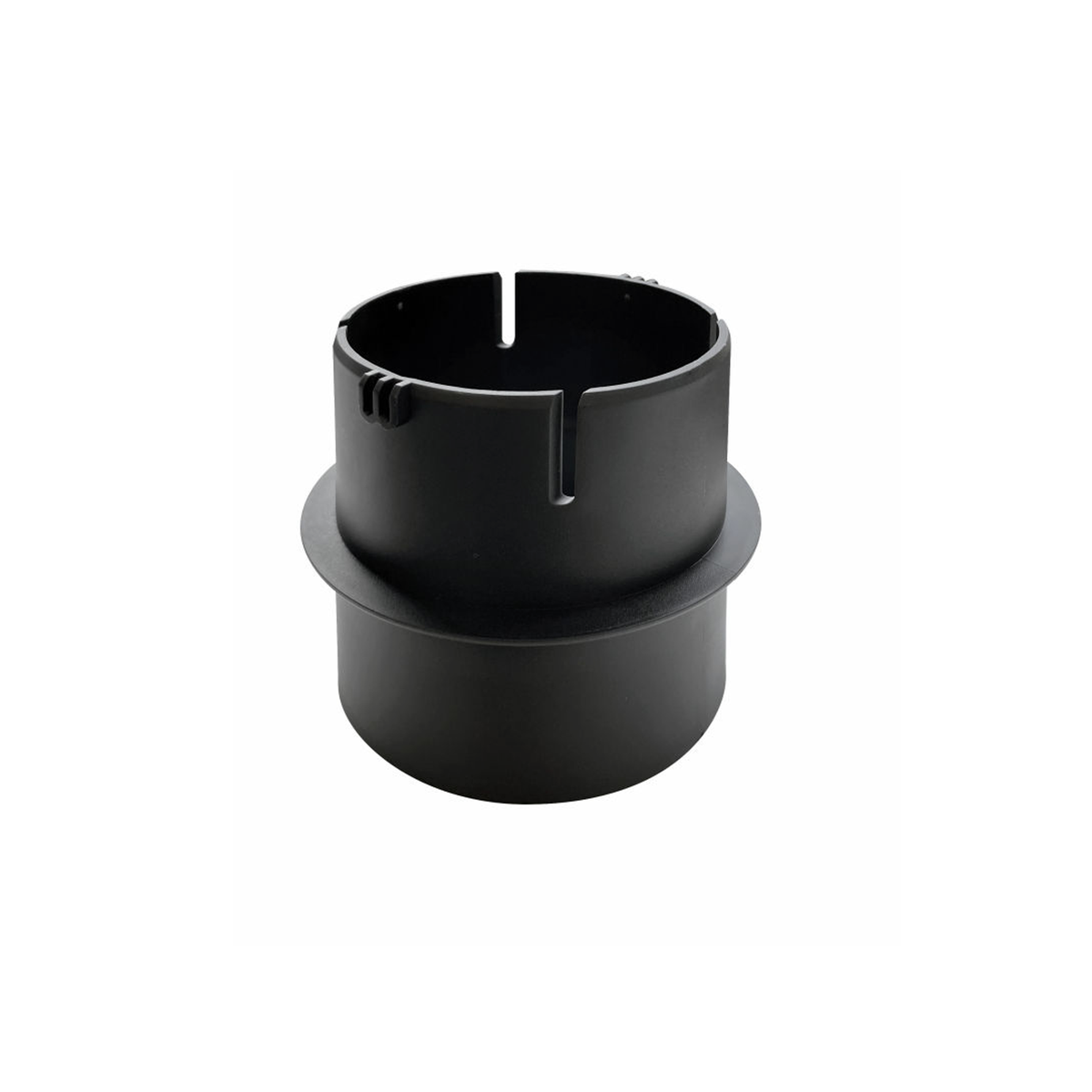

• Bayonet Inlet Fitting
• One Complete set of filter bags
  • Cloth Drum Filter Bag
  • Cloth Motor Filter Bag - 2
  • Paper Motor Filter Bag - 2
  • Elastic Bands - 2

Additional Information

Record Power CamVac Dust Extractor Manual PDF
