CamVac 90L 3000w Dust Extractor CGV386-6

The CGV386-6 Dust Extractor offers an impressive 23-3/4 gallon capacity while maintaining a very compact profile. In addition to wood dust and chips, it can tackle workshop debris, nails, and many other types of waste. It features the CamVac triple filtration system for effective removal of fine particles. The cyclonic neutral vane theory technology draws the waste into the drum with great force and directs it around the outside edge, keeping the filters cleaner and allowing the waste to fall to the bottom of the drum as it loses momentum. The lid features an acoustic outlet for the motor which, with the optional hose connected to it, directs the sound of the motor away from the machine and greatly reduces excess noise in the workshop.

At 43 pounds, the CGV386-6 is relatively easy to move around the shop. Once it's filled with dust, though, it can be very heavy. To make it easier to move the full extractor, we offer a caster set that mounts on the bottom of the drum.

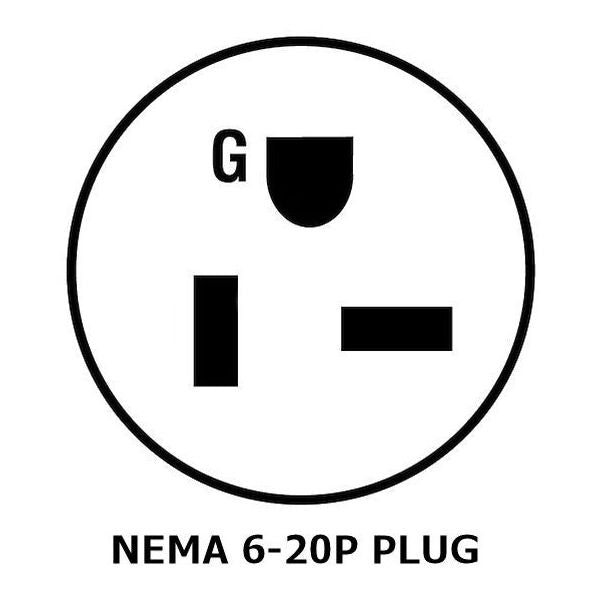

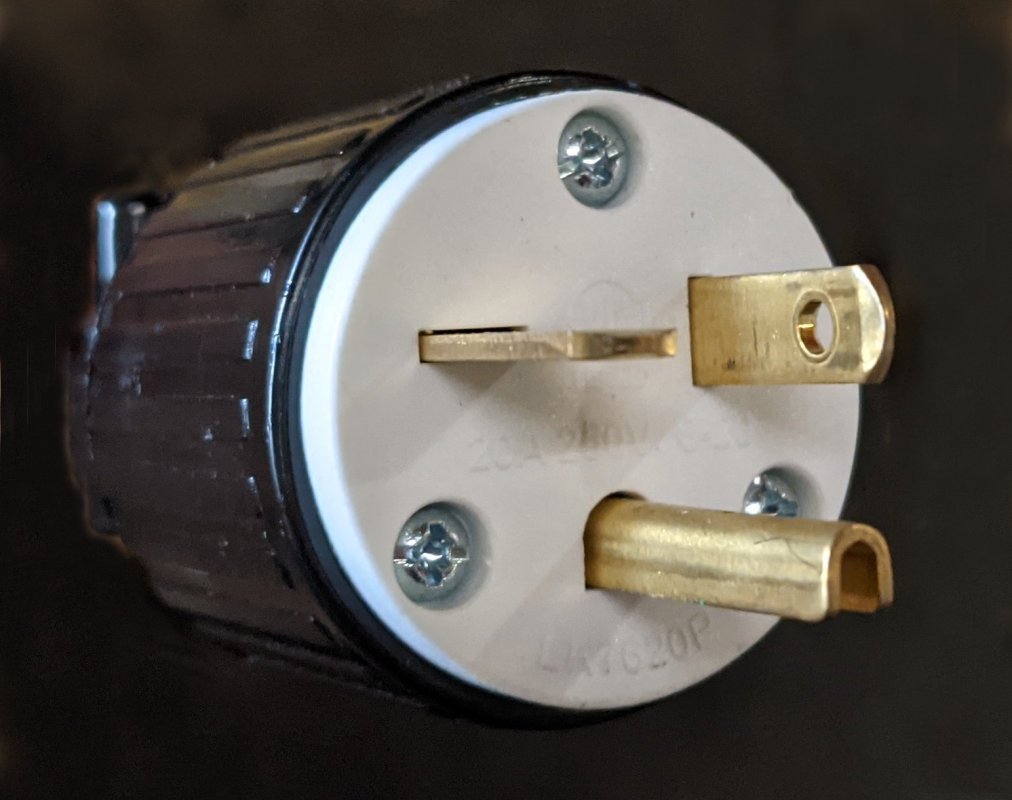

PLEASE NOTE: This dust extractor runs on 230 V power. It comes with a NEMA 6-20P plug. (See the picture above.) You will need a 230 V 20 A outlet with the correct configuration to use this dust extractor.

Features

• Triple Motor
• Three Stage Filtration
• Cyclonic Inlet
• Acoustic Outlet
• Filtration: 0.5 microns

Specifications

• Capaciity - 23-3/4 gallons (90 liters)
• Air flow - 343 cfm (162 liters/second)
• Filtration - 0.5 microns
• Inlet Port - 4"
• Motors - 1.3 hp x 3 (1000 W x 3)
• Power - 230 volt, 13 amp
• Size - 18-13/16" W x 20-1/2" D x 22-9/16" H (478 mm W x 520 mm D x 573 mm H)
• Weight - 43 lb (19 kg)

Includes

• CGV386-6 Dust Extractor

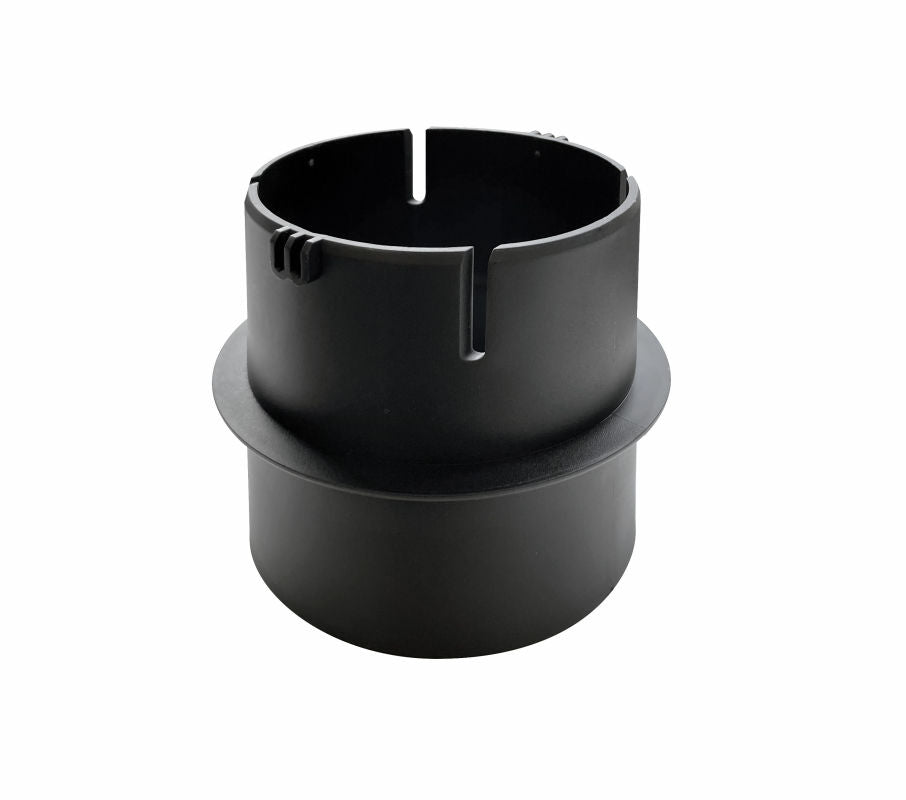

• DX100X Easy-Fit Cuff
• 4" x 6 ft (100 mm x 2 M) Hose

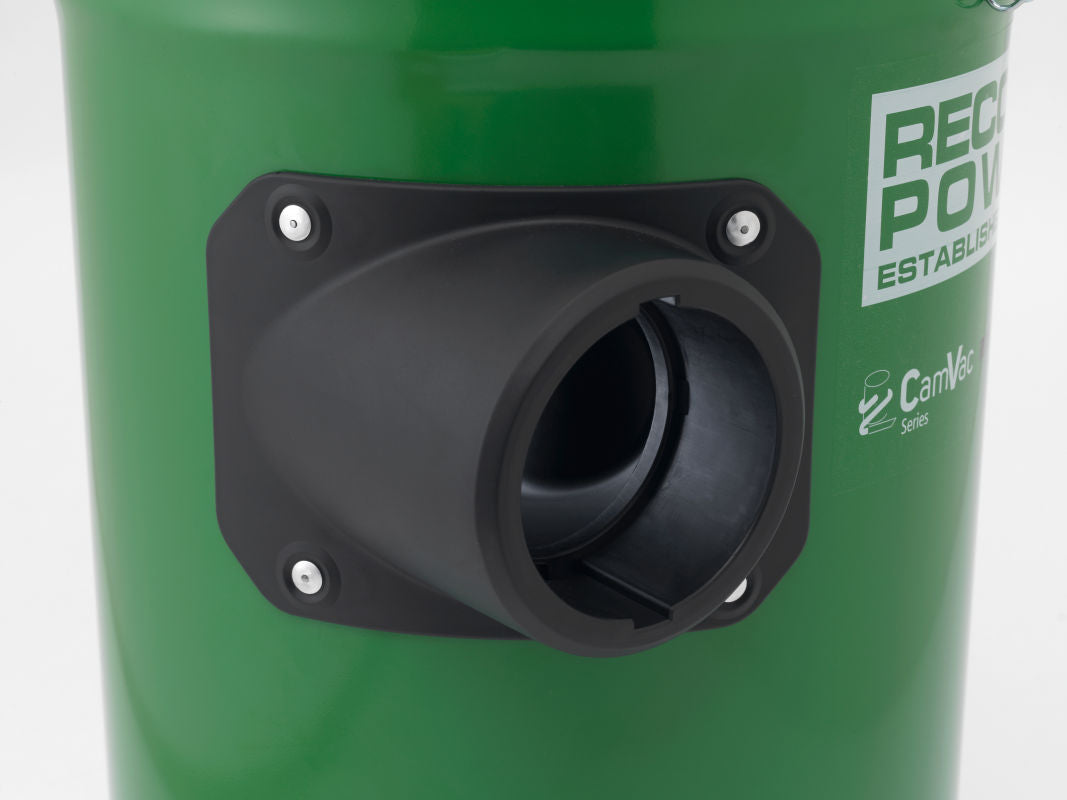

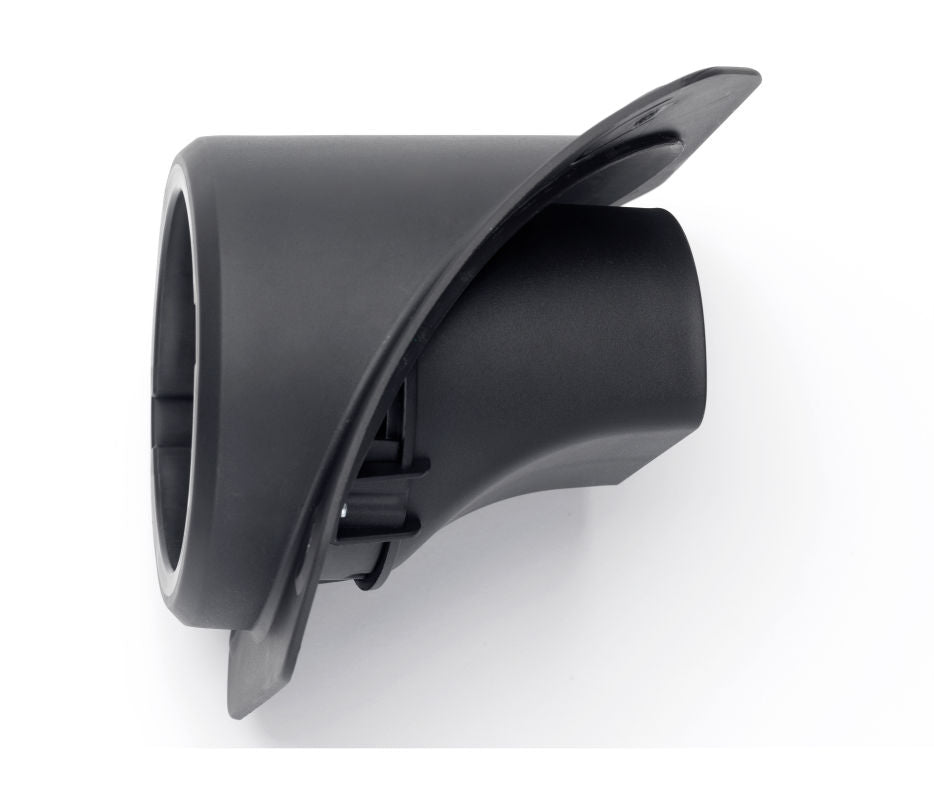

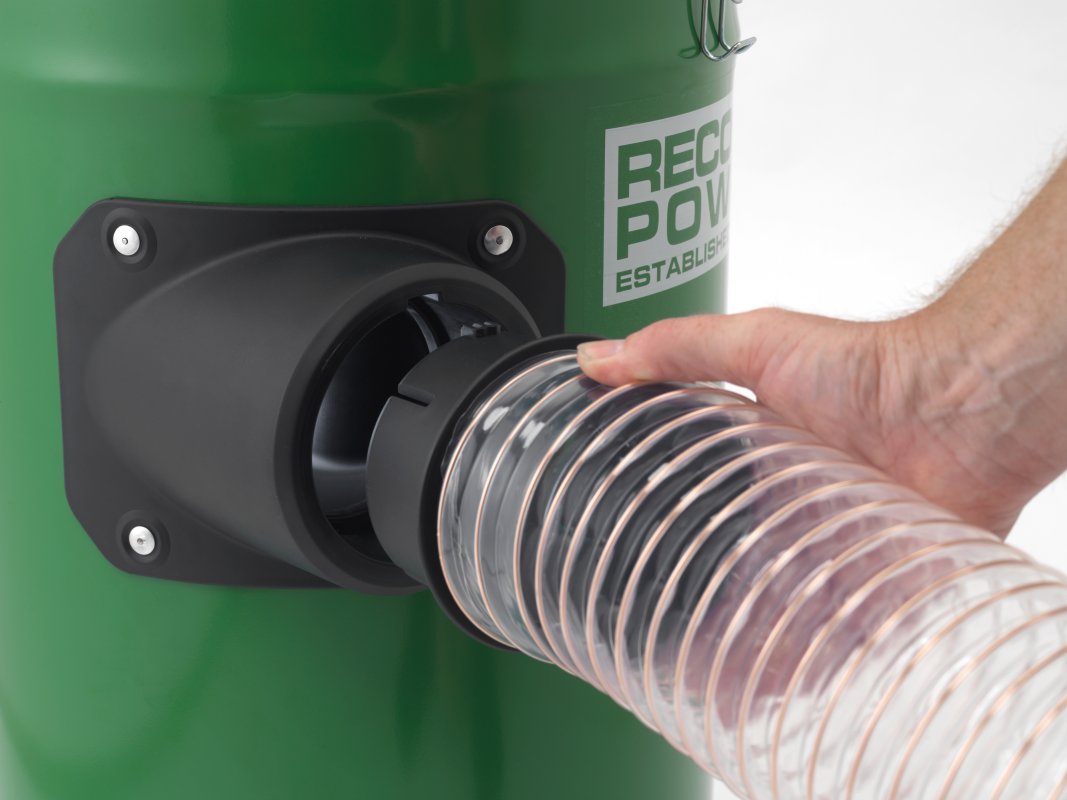

• Bayonet Inlet Fitting
• One Complete set of filter bags
• Cloth Drum Filter Bag
• Cloth Motor Filter Bag - 2
• Paper Motor Filter Bag - 2
• Elastic Bands - 2

Additional Information

Record Power CamVac Dust Extractor Manual PDF
