ECE 600mm Frame Saw

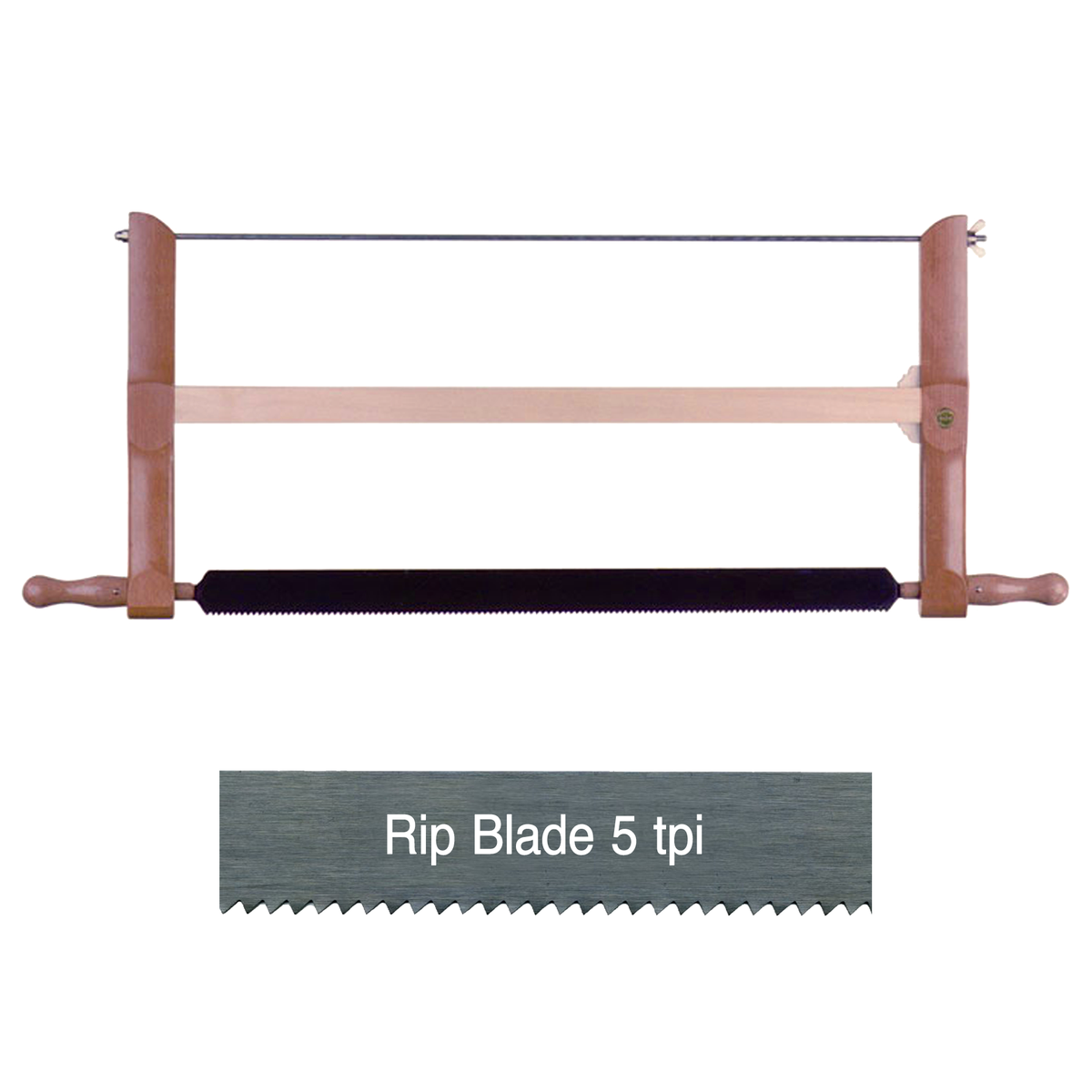

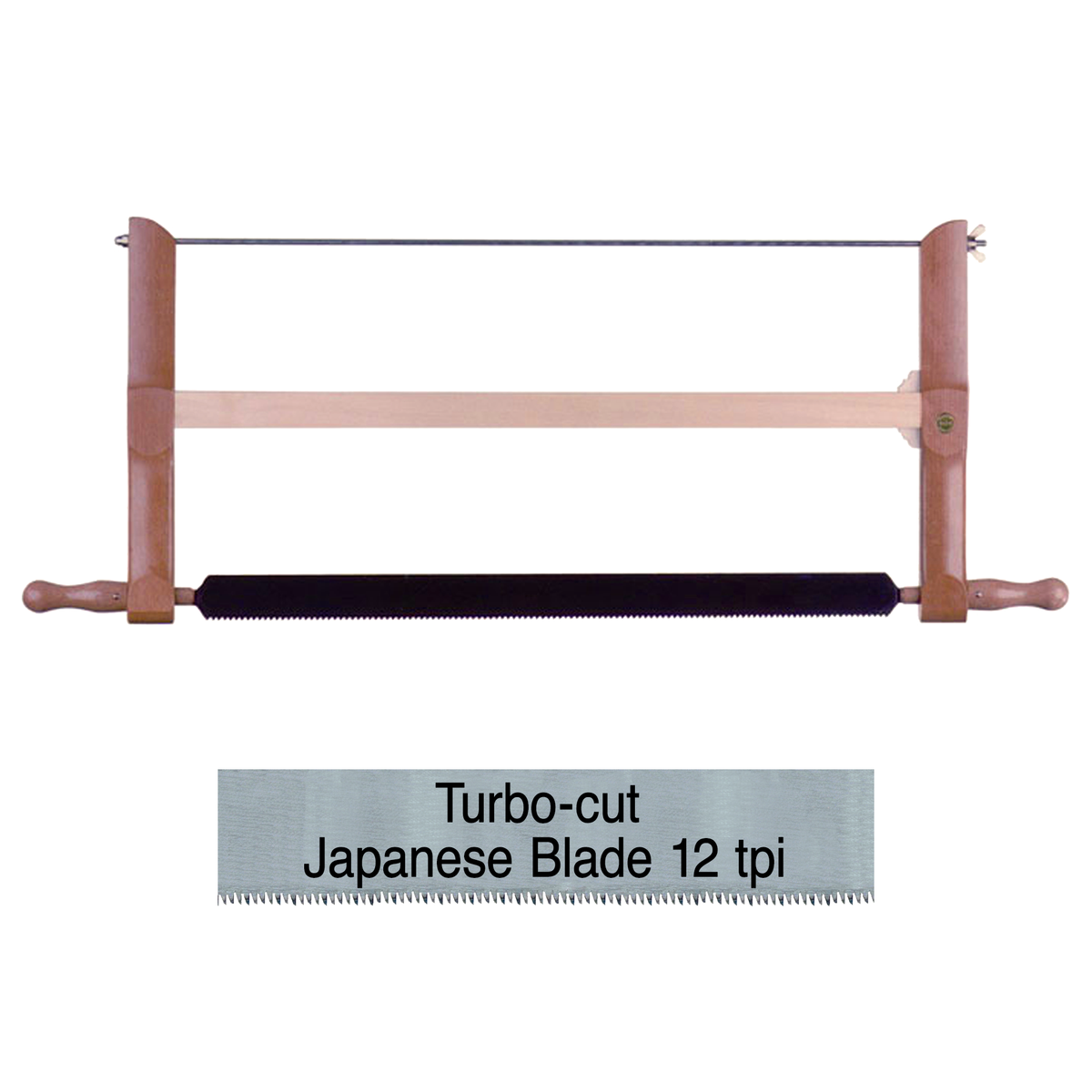

This frame saw has European hardwood vertical arms and handles with a pine horizontal stretcher to make it lightweight. Tension is applied via a wing nut at one end of the tensioning rod that links the vertical arms. The blade can be rotated through 360° for better cutting angles and for safe storage, (protecting the blade teeth with the teeth facing in). Comes with a 5 tpi rip blade or 12 tpi Turbo-Cut Japanese Blade.

This saw is a little lighter and a little shorter than our ECE 700 mm Saw, making it easier to manuever. It also has a five optional blades, while the 700 mm saw only offers three.

We offer a range of optional blades to fit this saw.

Made in Germany by E. C. Emmerich.

Specfications

• Overall blade length - 600 mm (23-5/8")
• Hole-to-hole Blade length - 577 mm (22-3/4")
• Blade width (5 tpi rip) - 40 mm (1-9/16")
• Blade thickness - 0.75 m (.030")
• Kerf - 1.5 mm (.060")
• Maximum cut depth - 150 mm (6")
  (With blade in straight position)
• Stretcher to blade centerline - 130 mm (5-1/8")
• Outer dimensions - 345 x 895 mm (13-1/2" x 35-1/4")
• Weight - 1.04 kg (2.3 lb)

Features

• Beech cheeks and handles
• Pine stretcher
• Zinc plated solid tension rod with wing nut
• Re-sharpenable blade
