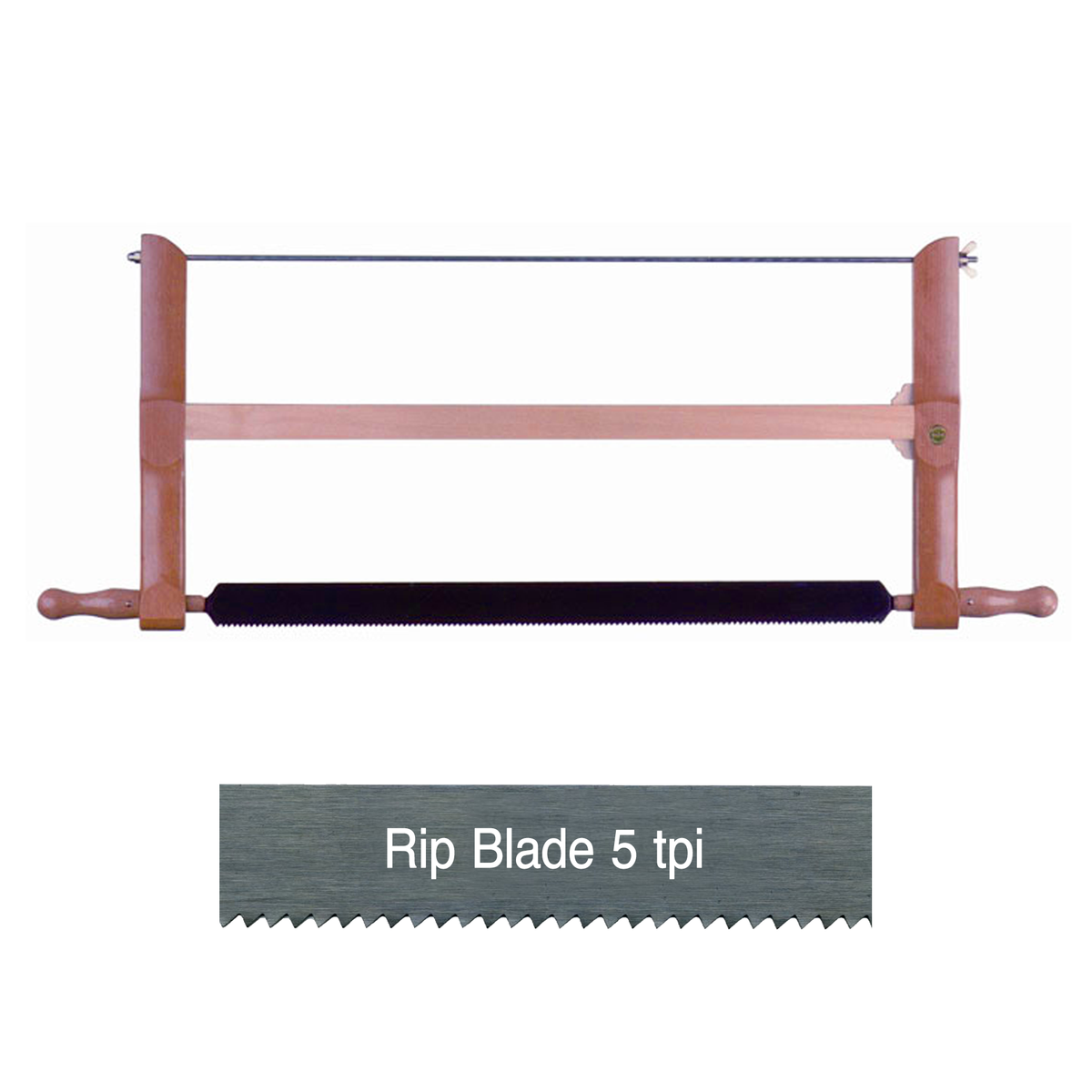

ECE 700mm Frame Saw

This frame saw has European hardwood vertical arms and handles with a pine horizontal stretcher to save weight. Tension is applied via a wing nut at one end of a tensioning rod that links the vertical arms. The blade can be rotated through 360° for better cutting angles or to store the blade with the teeth in. Comes with a 5tpi rip blade.

This saw is the same as our ECE 600 mm Frame Saw in all aspects except length and weight. This saw is a little heavier and a little longer making it better for large jobs. (It also has a three optional blades, while the 600 mm saw offers five.)

We offer a range of optional blades to fit this saw. The super-charged Turbo Cut Japanese style blade that fits the Classic 700 Frame Saw also fits this saw.

Made in Germany by E. C. Emmerich.

Specfications

• Overall blade length - 700 mm (27-9/16")
• Hole-to-hole Blade length - 680 mm (26-3/4")
• Blade width - 40 mm (1-9/16")
• Blade thickness - 0.75 m (.030")
• Kerf - 1.5 mm (.060")
• Maximum cut depth - 150 mm (6")
  (With blade in straight position)
• Stretcher to blade centerline - 130 mm (5-1/8")
• Tooth Pattern - 5 tpi Rip
• Outer dimensions - 345 x 1000 mm (13-1/2" x 39-3/8")
• Weight - 1.13 kg (2.5 lb)

Features

• Rip tooth blade
• Beech cheeks and handles
• Pine stretcher
• Zinc plated solid tension rod with wing nut
• Re-sharpenable blade
