Hock Krenov-style Wooden Plane Plans

$4.00 USD

Sale Sold out

Shipping calculated at checkout.

Plan Flat Bottom Plane Plan - 6 inch x 1-1/4 inch Flat Bottom Plane Plan - 9 inch x 1-1/2 inch Flat Bottom Plane Plan - 11 inch x 1-3/4 inch Round Bottom Plane Plan - 6 inch x 1-1/4 inch Round Bottom Plane Plan - 8 inch x 1-1/2 inch Round Bottom Plane Plan - 10 inch x 1-3/4 inch Rabbet Plane Plan - 6 inch x 1 inch Set of Seven Plans

If you want to build a wooden plane but need a little guidance the first time out, these plans will help you construct your first plane. Each 11" by 17" plan is a Krenov-style design and uses a Hock plane iron (not included).

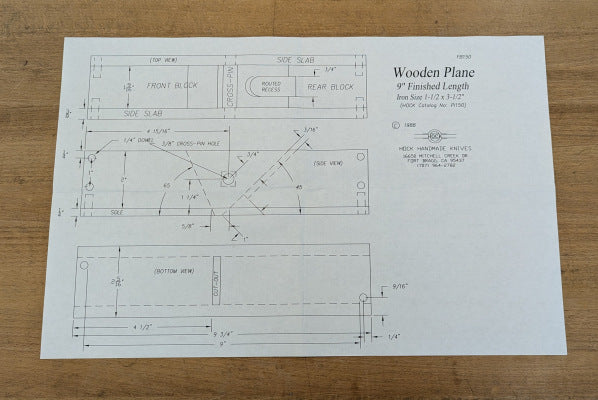

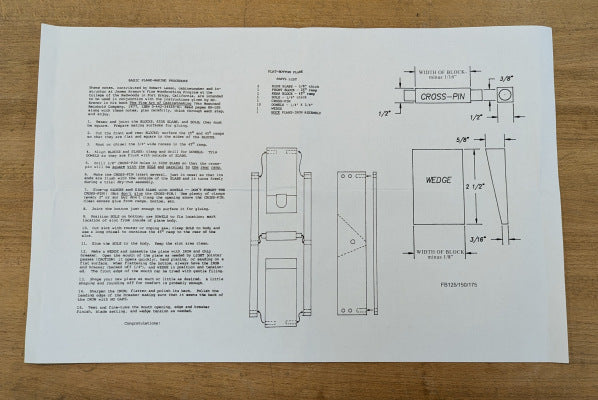

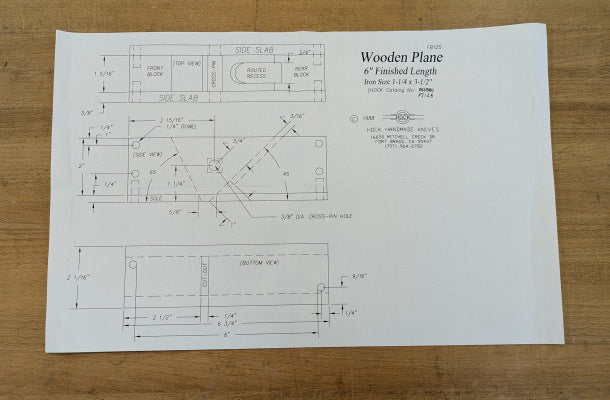

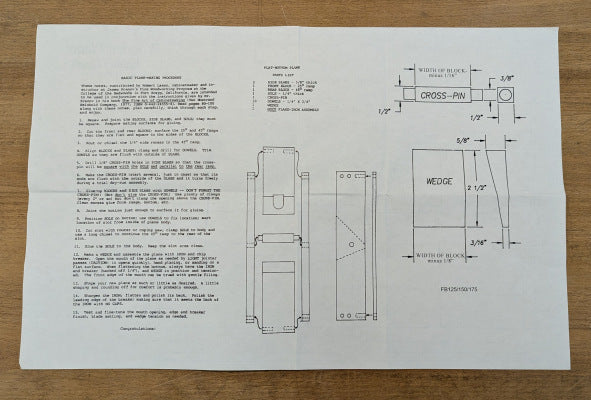

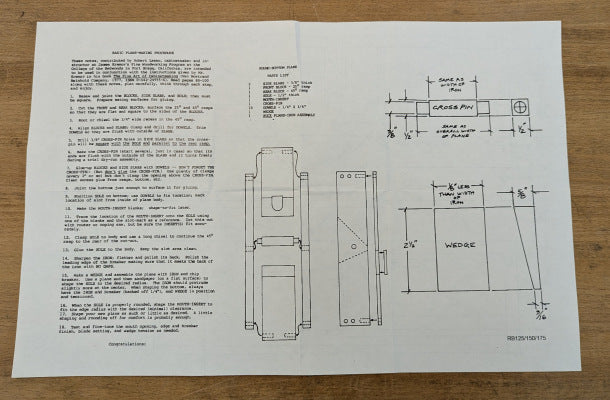

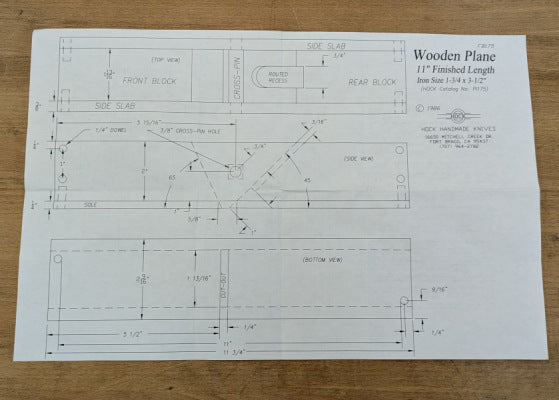

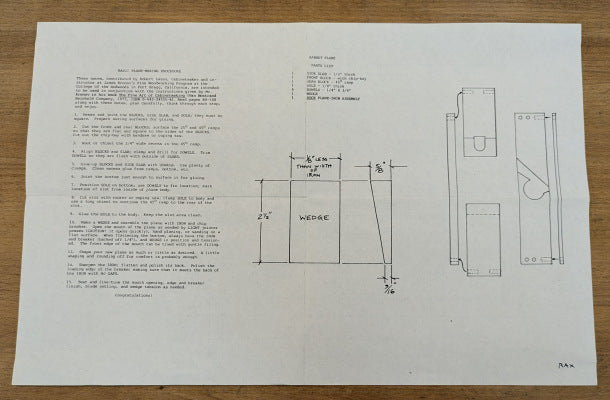

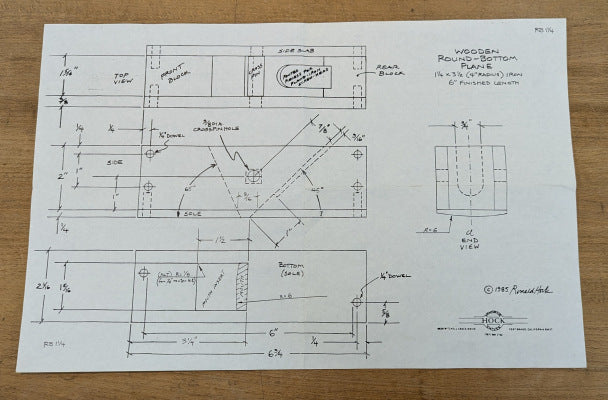

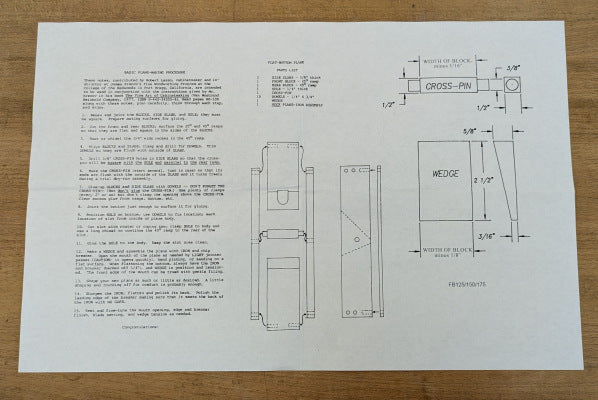

The front of the plan has a full size drawing of each component. The back has a materials list and the assembly instructions. In the plans listed above, the size of the plane is indicated by the sole length x the iron width. Each set includes one plan.

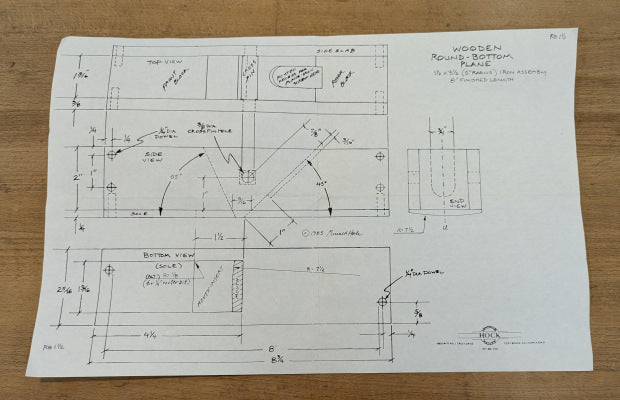

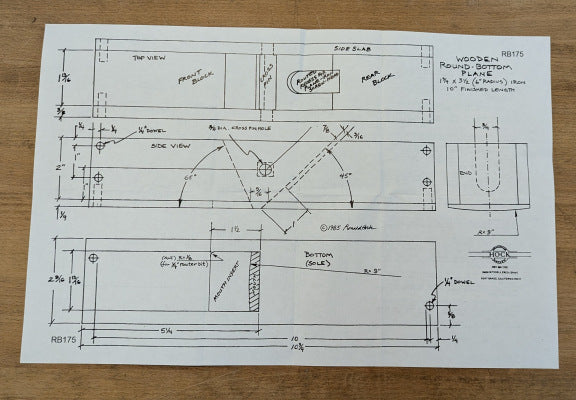

Round Bottom Planes use a Hock 3-1/2" Long Plane Iron with a Curved Edge.

Flat Bottom Planes use a Hock 3-1/2" Long Plane Iron with a Straight Edge.

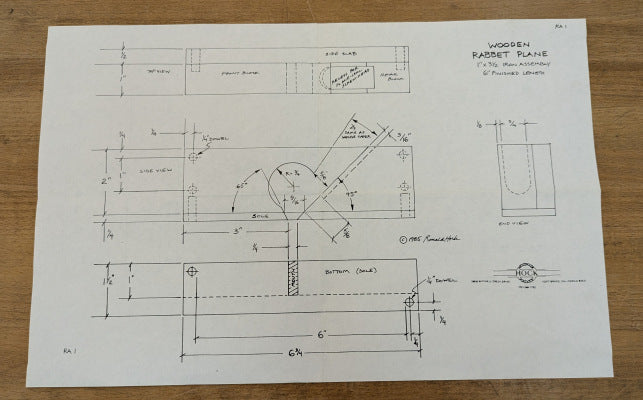

Rabbet Planes use a Hock 1" x 3-1/2" Plane Iron with a Straight Edge.
