Lignomat Ligno-Scanner Pinless Moisture Meters
Lignomat Ligno-Scanner Pinless Moisture Meters
Couldn't load pickup availability
Ligno-Scanner moisture meters scan up to 3/4" deep without marring the wood at all. You can check an entire board without probing or cutting, even through finishes. The 1-5/8" x 2-5/8" scanning pad allows you to cover large boards quickly. Ligno-Scanner meters are best used on dressed lumber. The entire scanning pad needs to be flat on the material and in contact with the surface.
Ligno-Scanner meters adjust for different wood species without math. Each meter comes with a laminated wood group chart that helps you set the meter for the species you are measuring.
Models
Model D measures moisture 3/4" deep. If your lumber is thicker than 3/4" check from both sides. If you use this meter on thinner materials, the reading may be inaccurate.

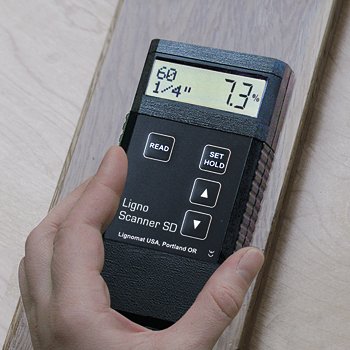

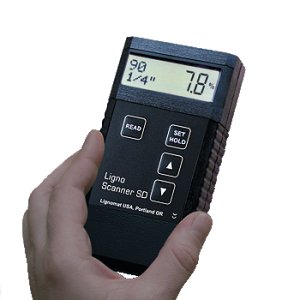

Model SD has two depth settings. It measures 1/4" deep or 3/4" deep. If the material is thinner than the depth setting, the reading may be inaccurate.
Each Meter Includes
- 9v battery
- Pouch
- Manual
- Laminated wood group chart
- 2 year warranty
| Model | Range | Resolution | Species Settings |
Measurement Depth |
Materials | ||
|---|---|---|---|---|---|---|---|
| D | 5-60%♦ | 0.1% | 71 | 3/4" | Wood | ||
| SD | 5-60%♦ | 0.1% | 71 | 3/4" & 1/4" | Wood | ||
| ♦Actual moisture measurement range will be vary from nominal depending on the wood species setting. | |||||||
Additional Information
Model D
Model SD
