Micro Jig MatchFit Router Bits

The Micro Jig MatchFit Router Bits are designed to make your own dovetail tracks for the MatchFit Dovetail Clamp Pro and the MatchFit Dovetail Clamps .

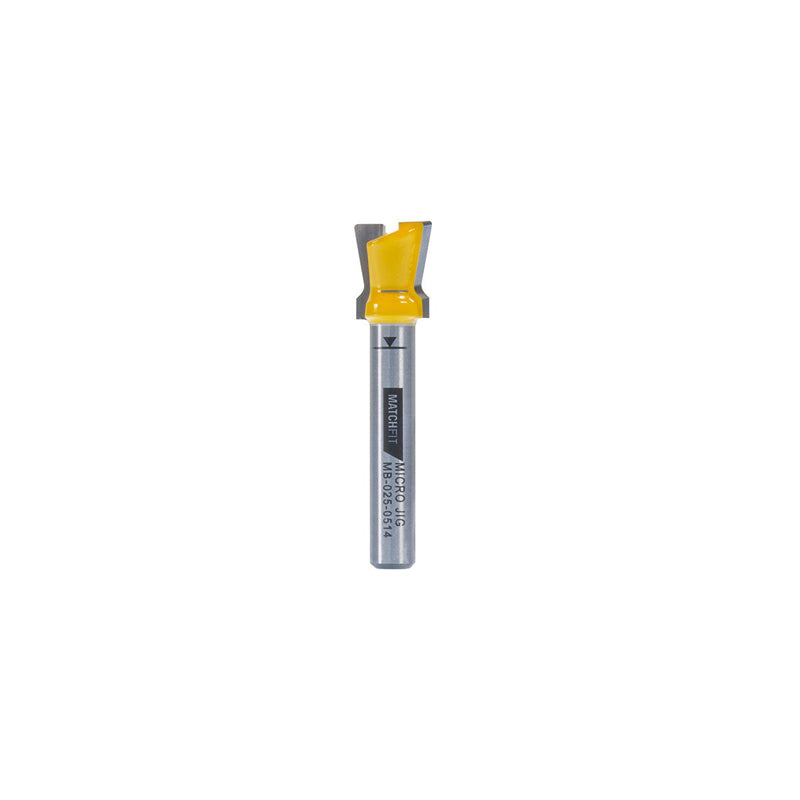

Micro Jig MatchFit 1/2" 14° Dovetail Bit:

• Built-in roundovers that cut clean dovetail grooves in a single pass
• 1/16" roundover to prevent tearout
• 1/32" roundover to strengthen the bottom
• Laser cut router collet safety line
• Laser cut depth of cut set-up line

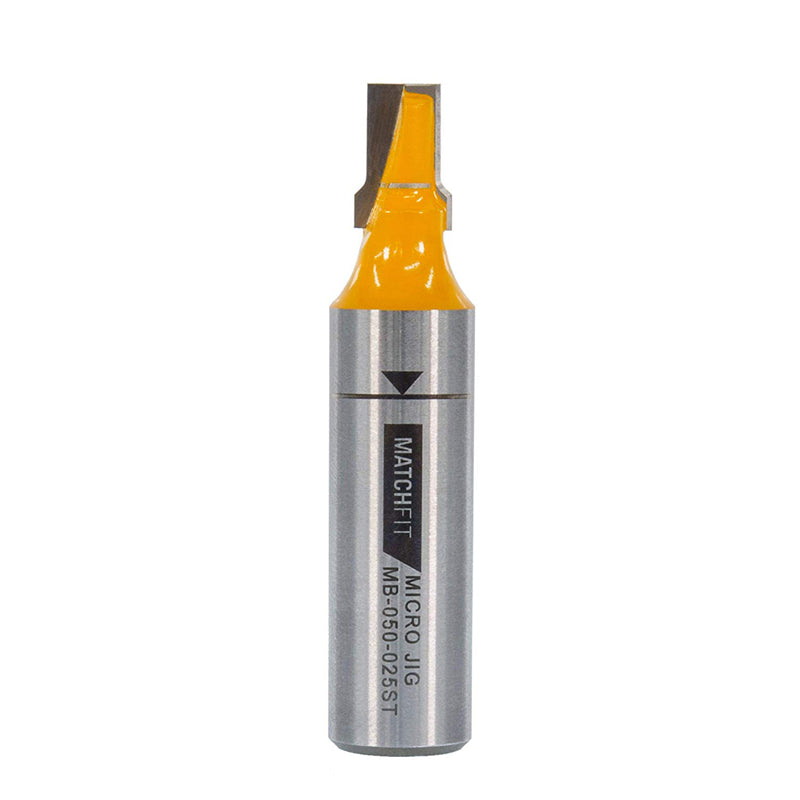

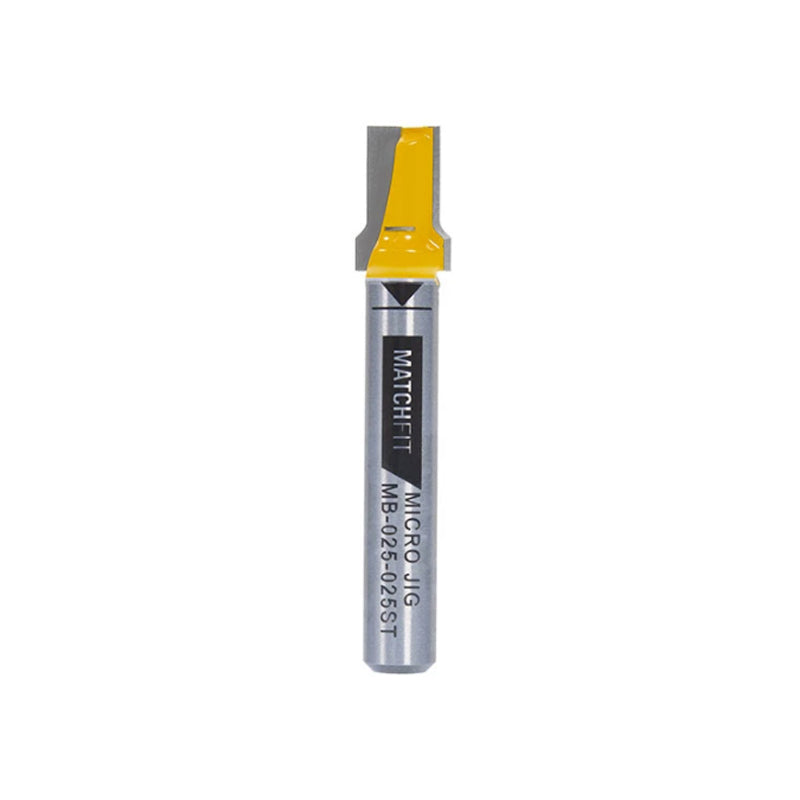

MatchFit 1/4" Relief Bit:

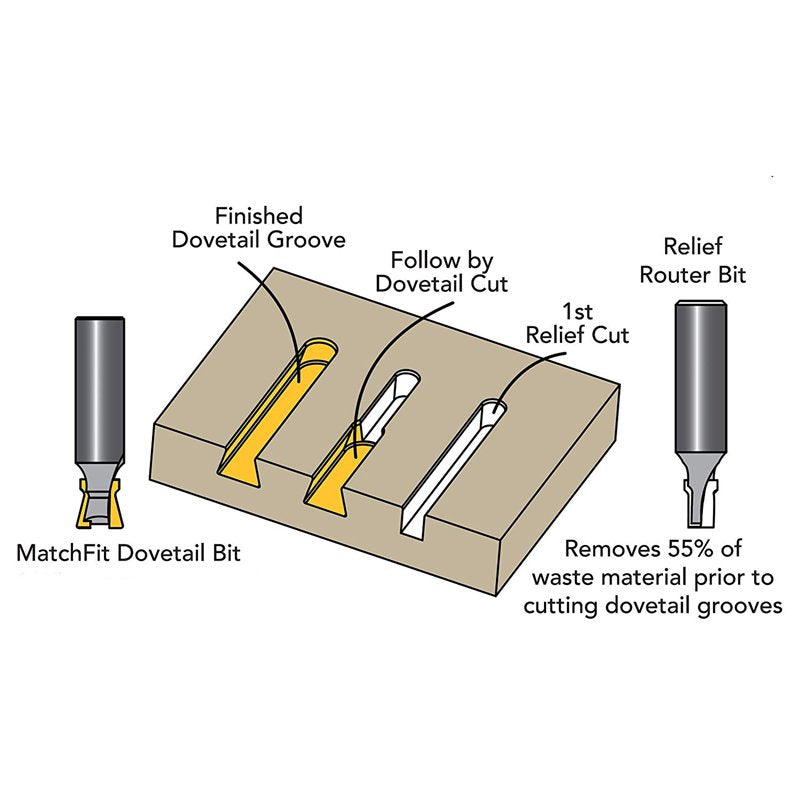

• Specially designed to route 1/4" relief grooves in material prior to using the MatchFit 14° Dovetail Router Bit
• The relief bit removes 55% of waste material, reducing stress on your Dovetail Router Bit and improving the quality of dovetail grooves
• Laser etched router collet safety line
• 11/32" laser etched depth guide allows you to quickly dial in cutting depth
• 1/16" roundover smooths out the top shoulders of the groove to prevent tearout
• 3° degree upshear carbide cutter for more efficient chip removal
