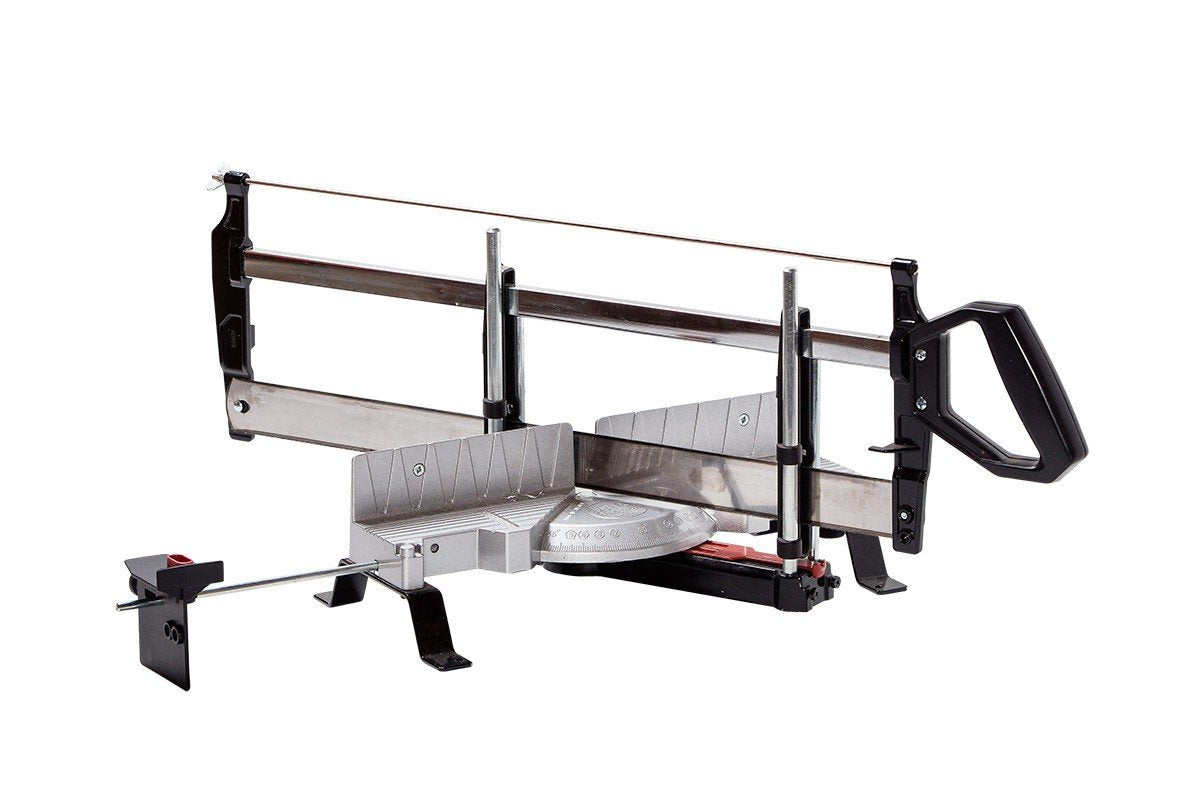

Nobex Proman 110 Miter Saw

Nobex's versatile Proman compound miter saw has specially milled grooves in the table surface to hold stock at correct settings for compound miters. 11 positive stops (90, 15, 22-1/2, 30, 36 & 45 degrees) provide precision cutting for up to 12-sided frames. Table is 2-1/8" wide x 13-3/4" long. Rear fence height is 1-3/4". Max. stock thickness 4-1/4"; max. width 7" at 90 degrees or 4" at 45 degrees. Comes with 22-1/4" 24 tpi blade, 1 stock clamp & length stop for cutoffs up to 30" long.

Precise construction and elegantly simple design are the hallmarks of these fine Swedish joinery tools. Die-cast aluminum tables and light-weight, bowsaw-style cutting assembly allow quick, precise set-up, very large capacity & very smooth cutting.

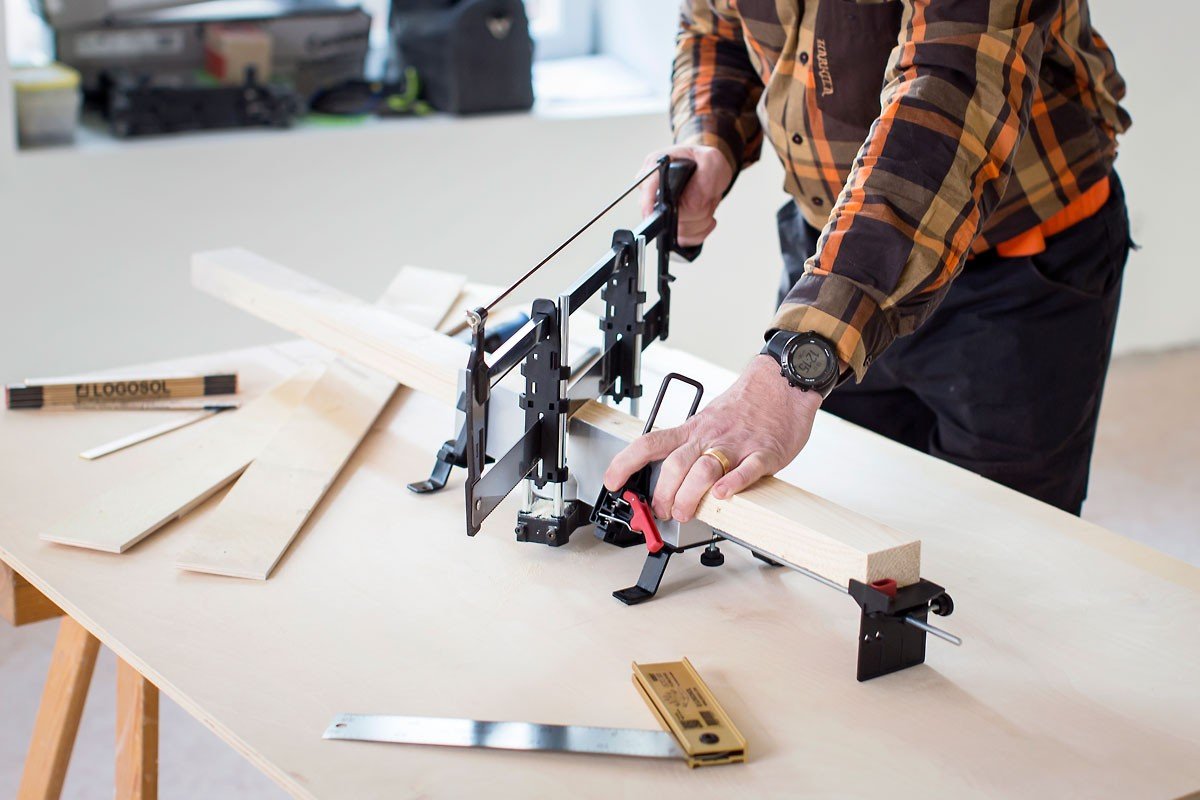

For best results, mount the Proman saw to a board and firmly clamp it to a table or workbench.

Manufactured in Sweden.

Includes

• PRM-24 24tpi Saw Blade for fine cuts in wood

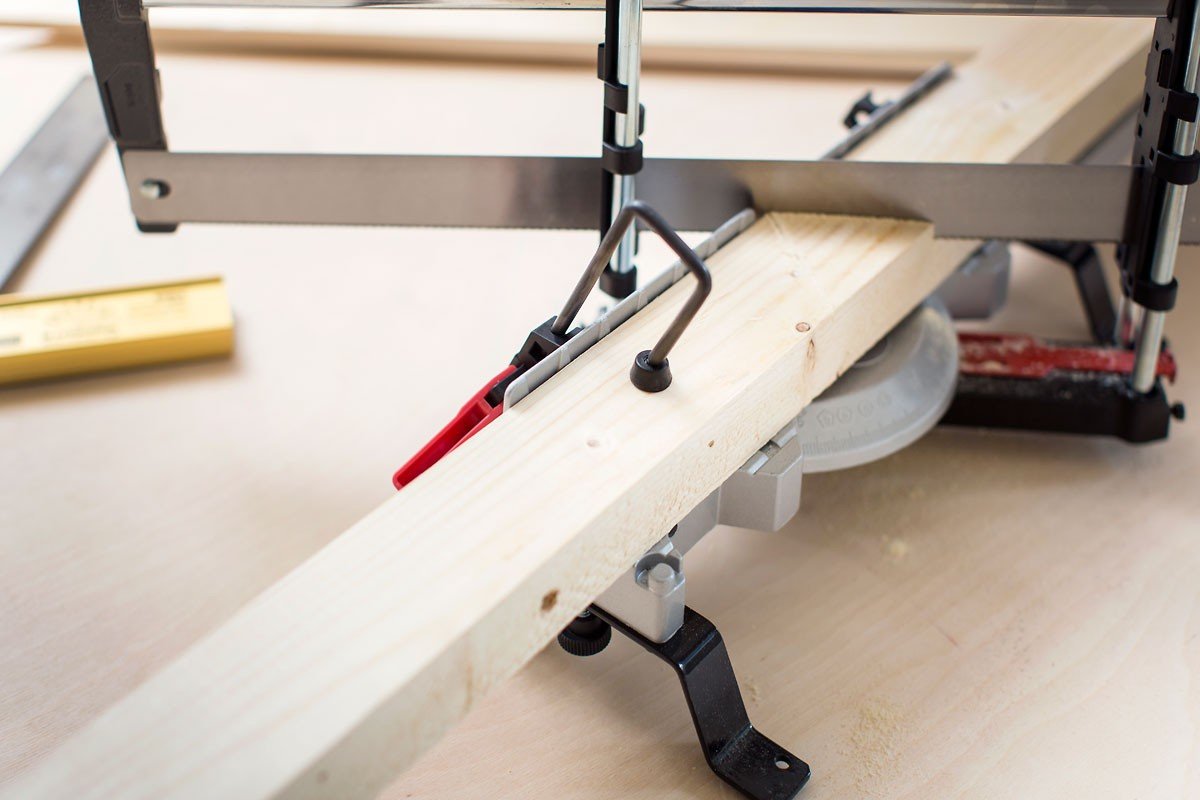

• One material hold down clamp which clamps from the front or above
  (Can be used on either side)
• Length stop - maximum capcity 30" (Can be installed on either side)

Specifications

• Table - 2-1/8" wide x 13-3/4" long
• Fence Height - 1-3/4"
• Maximum stock thickness - 4-1/4"
• Maximum stock width at 90° - 7"
• Maximum stock width at 45° - 4"
• Positive miter stops - 15°, 22-1/2°, 30°, 36° 45°, & 90°

Additional Information

Nobex Proman 110 Parts List (PDF)

Nobex Saw Manual (PDF)

Nobex Proman Assembly Instructions (PDF)
