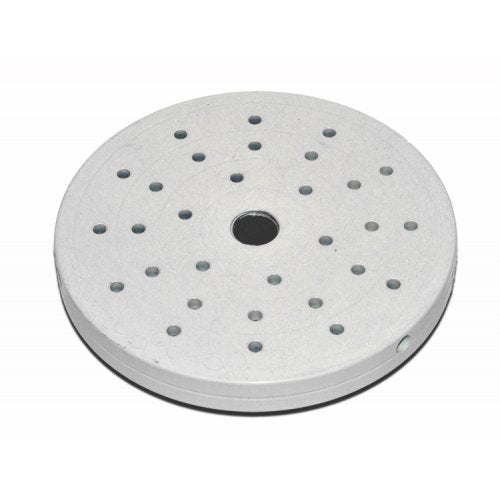

Oneway Cast Iron Faceplate - 10 inch
Oneway Cast Iron Faceplate - 10 inch
Couldn't load pickup availability
This is the biggest, beefiest, most massive faceplate we carry. Most turners will never need something this big. It's a heavy duty 10 inch cast iron faceplate ! If you're turning something too big for this faceplate, we're really impressed!

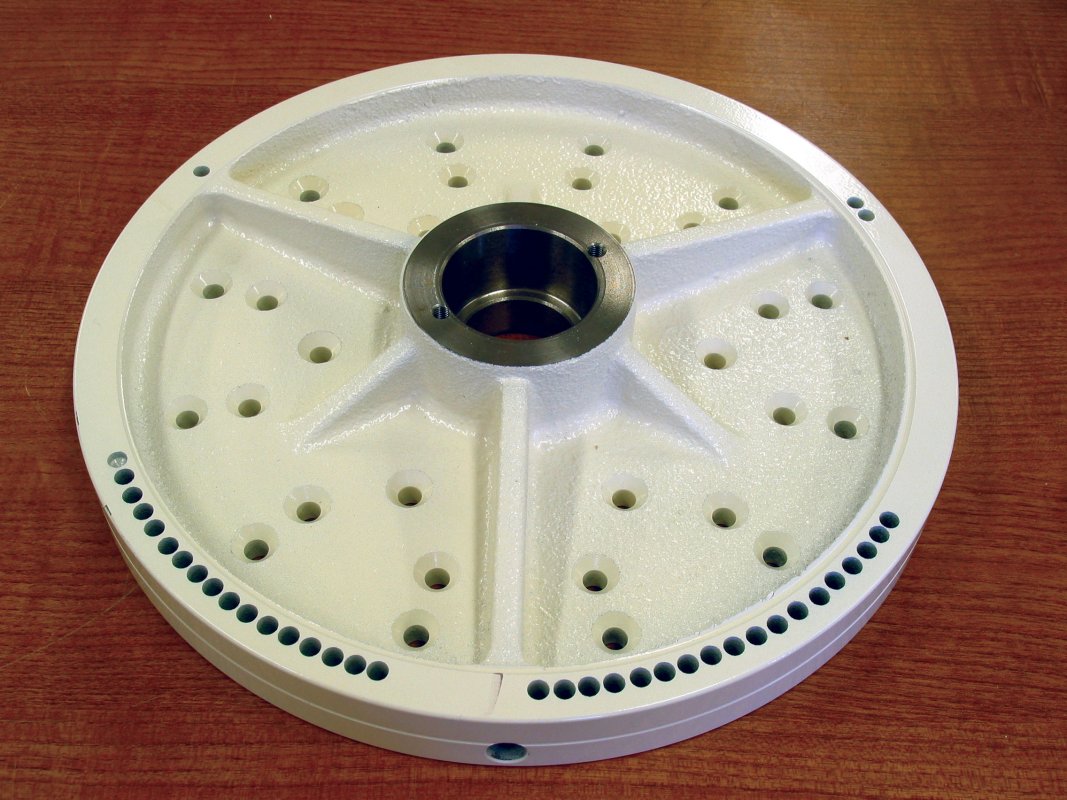

This big faceplate doesn't come direct-threaded to fit your lathe. It uses the same threaded inserts as the Oneway Stronghold chuck . The insert fits into the back of the faceplate so you can thread it onto your lathe spindle.
For all spindle sizes, a threaded insert is REQUIRED to adapt this faceplate. See the chart below for the sizes available. If you do not see your size call us for assistance. If you choose to order this faceplate without an insert and you do not already have an insert, it will not work.
| Threaded Inserts | |
|---|---|
| Size | Lathes |
| 1"-8tpi RH/LH | Some Delta, Jet, General, Rikon and many others |
| 1"-12tpi RH | Grizzly |
| 1-1/4"-8tpi RH/LH | Some Delta, General, Powermatic, Jet, Rikon |
| 1-1/2"-8tpi RH/LH | Some General, Powermatic & Conover (Conover requires a special insert because the spindle nose is longer than most lathes) |
| Blank Insert | This insert is for lathes with an unusual spindle size or thread pattern. You will need to have it custom threaded at a machine shop in your area. |
| No Insert | This facaplate REQUIRES an insert to operate. Only order your chuck without an insert if you already have one. |
| This is a general guide. If you are not certain which is the correct thread, check your lathe manual or call us. |
|
