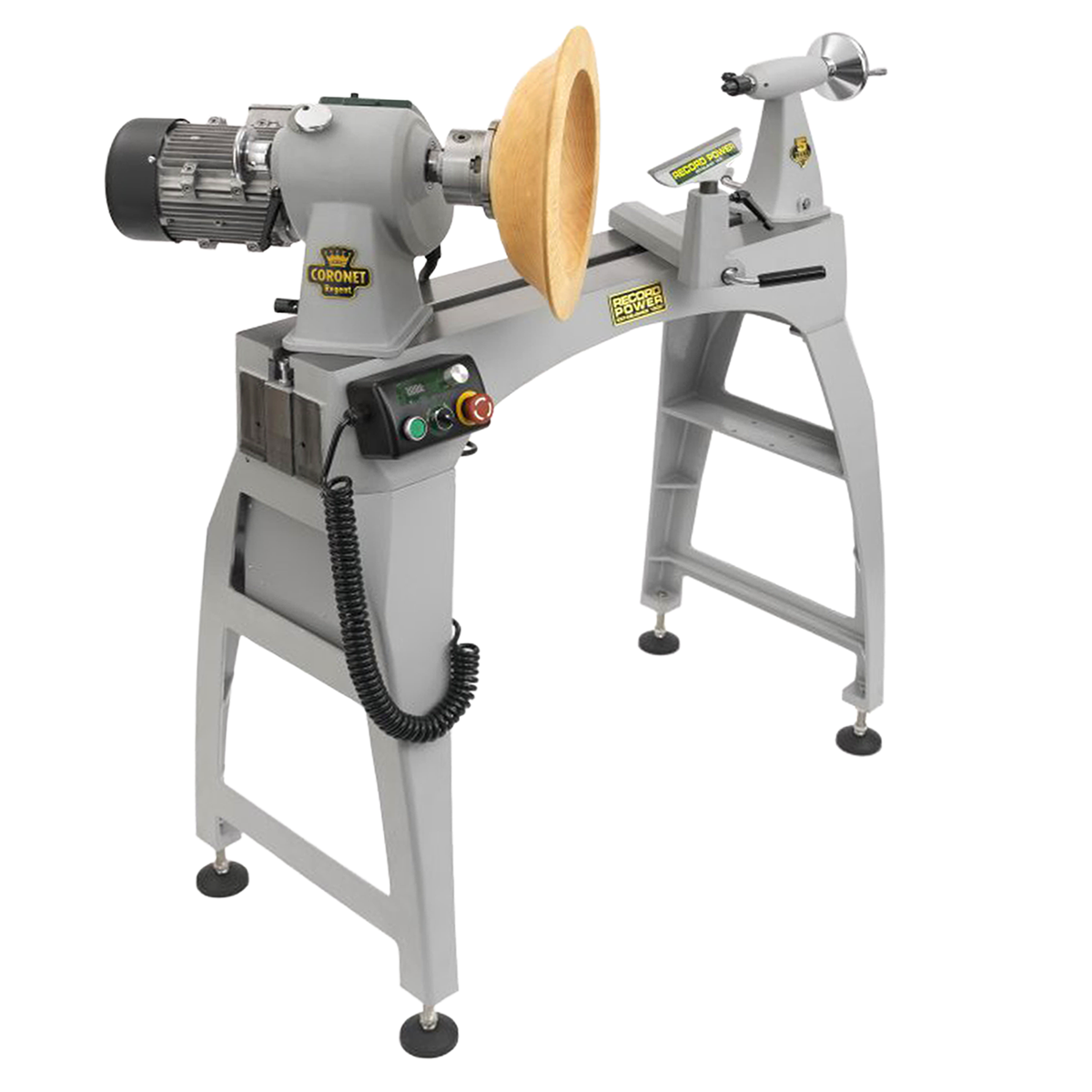

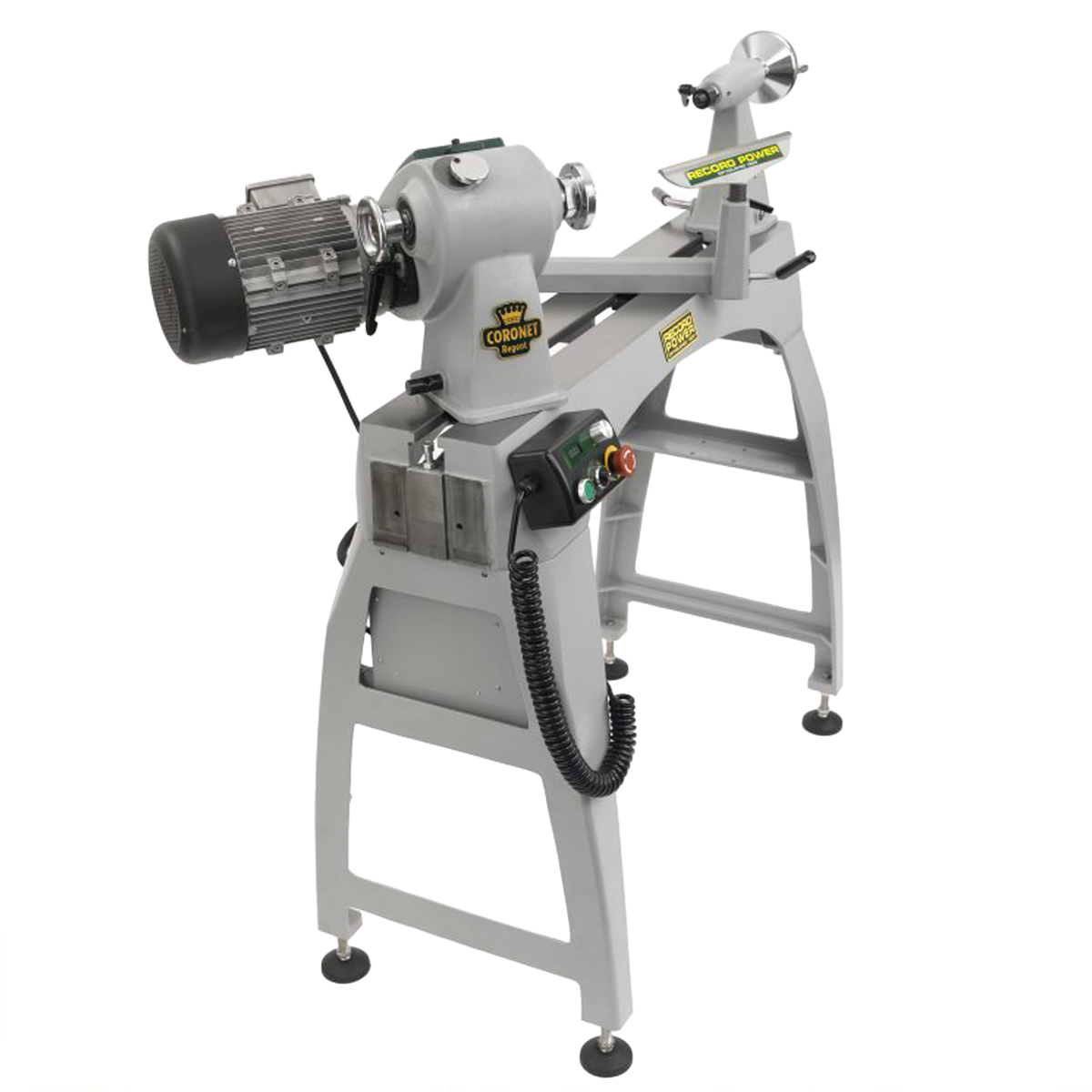

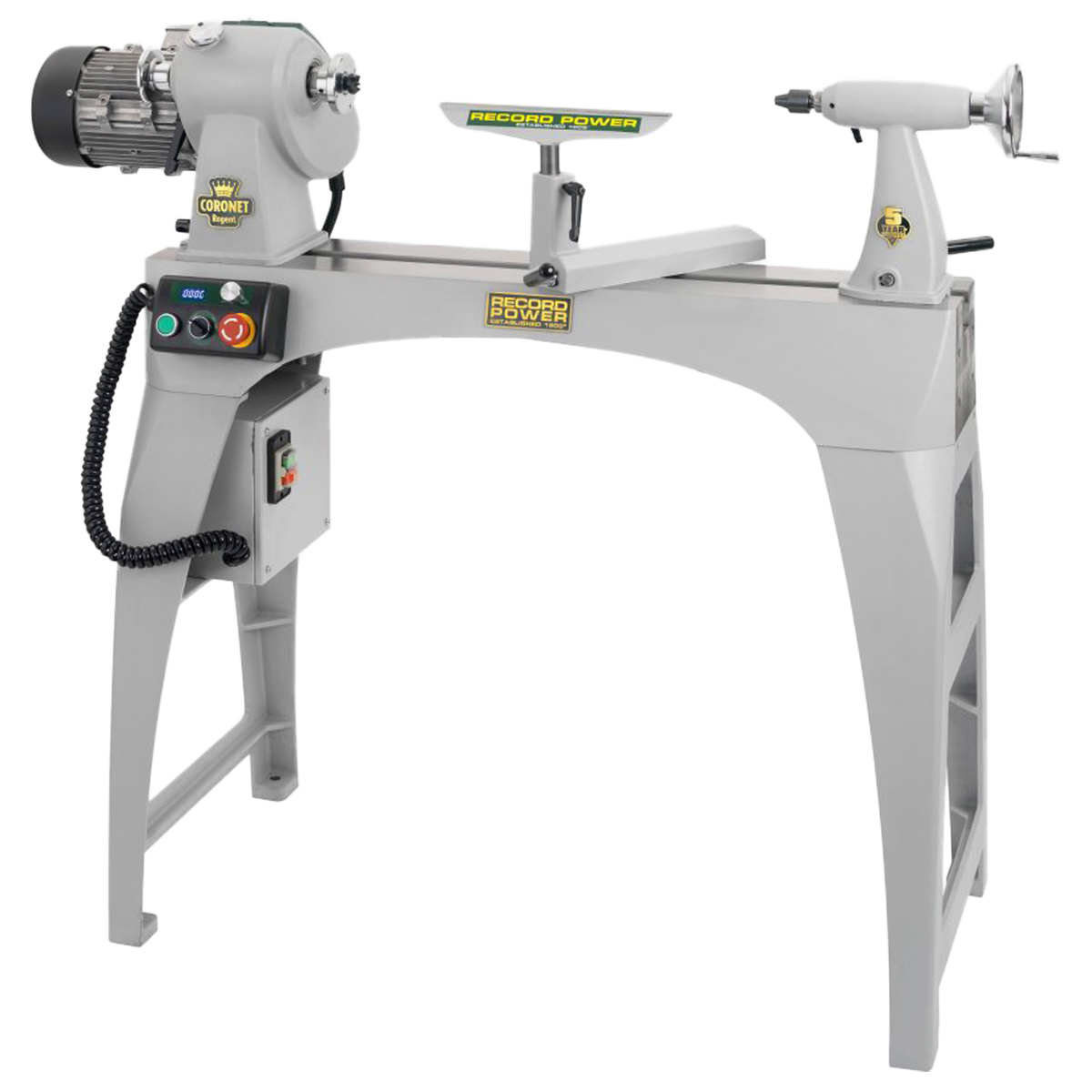

Record Power Coronet Regent 18 inch VS Lathe

The Regent is the largest lathe in the exclusive range of Coronet lathes from Record Power and is ideal for the woodturner who regularly needs the power, stability and capacities necessary for very large scale work. It is supported by large and heavy integral cast iron legs to give ample protection from vibration while turning out of balance timbers. The overall heavy-duty construction of the machine, along with the finely engineered and machined components make this lathe a pleasure to use.

The Regent offers unrivaled value-for-money in its class without compromising capacity or features. It offers the benefits of electronic variable speed, a rotating and sliding headstock, reverse function and solid cast iron build throughout, yet at a cost more commonly associated with either much smaller or less well-specified lathes.

Features:

• Cast Iron bed

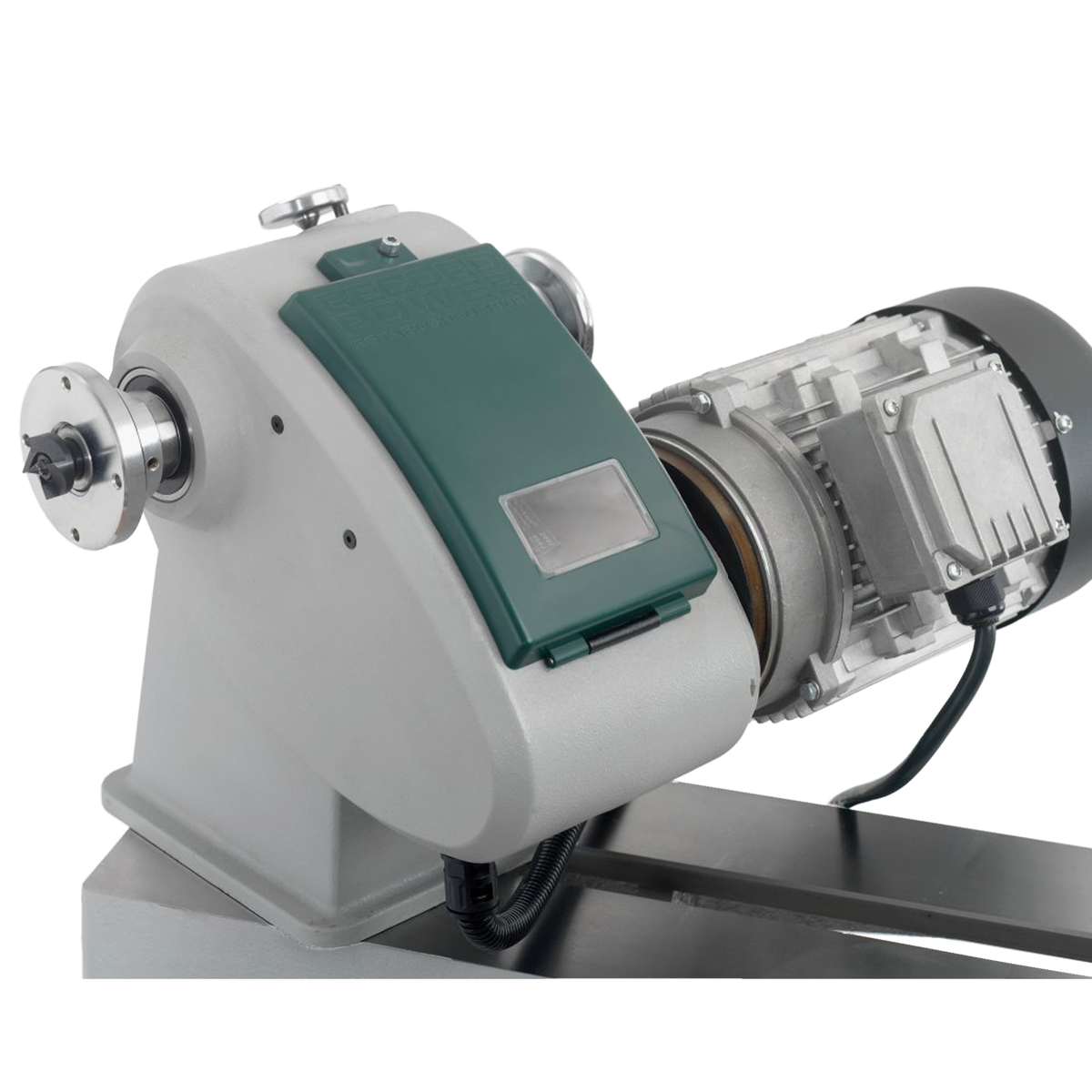

• Headstock rotates 360° and can be locked 90° to the bed

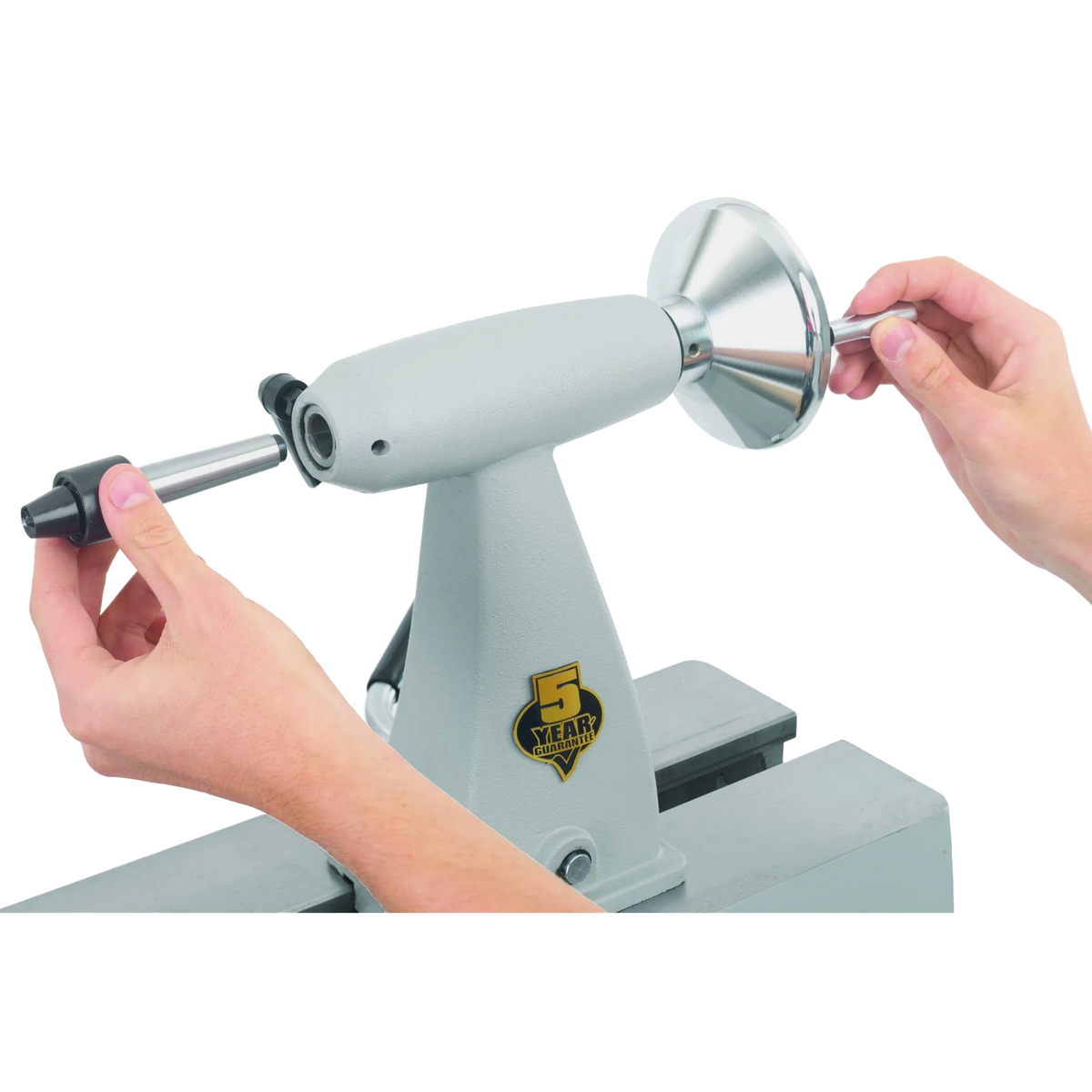

• Self-ejecting tailstock

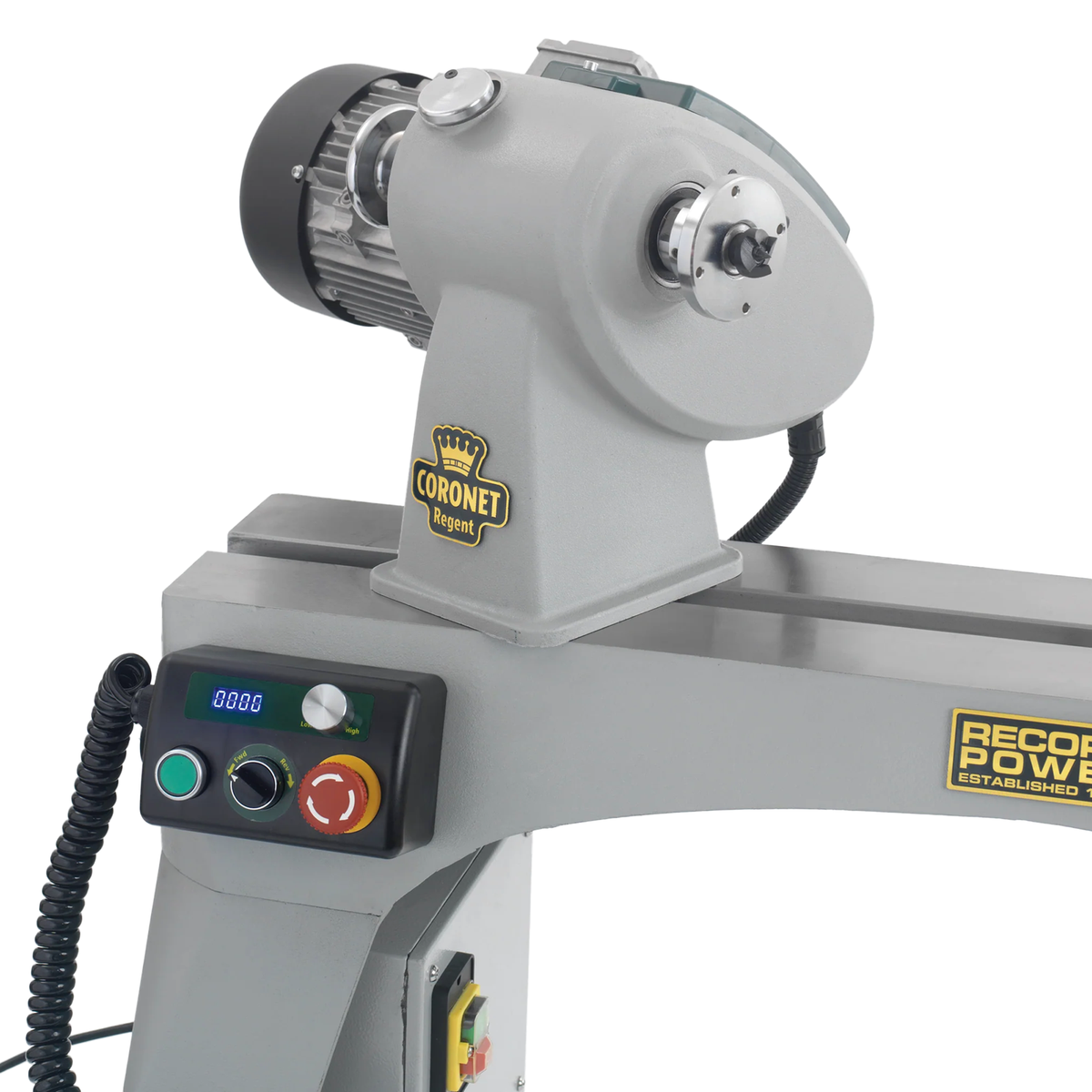

• Repostionable control panel

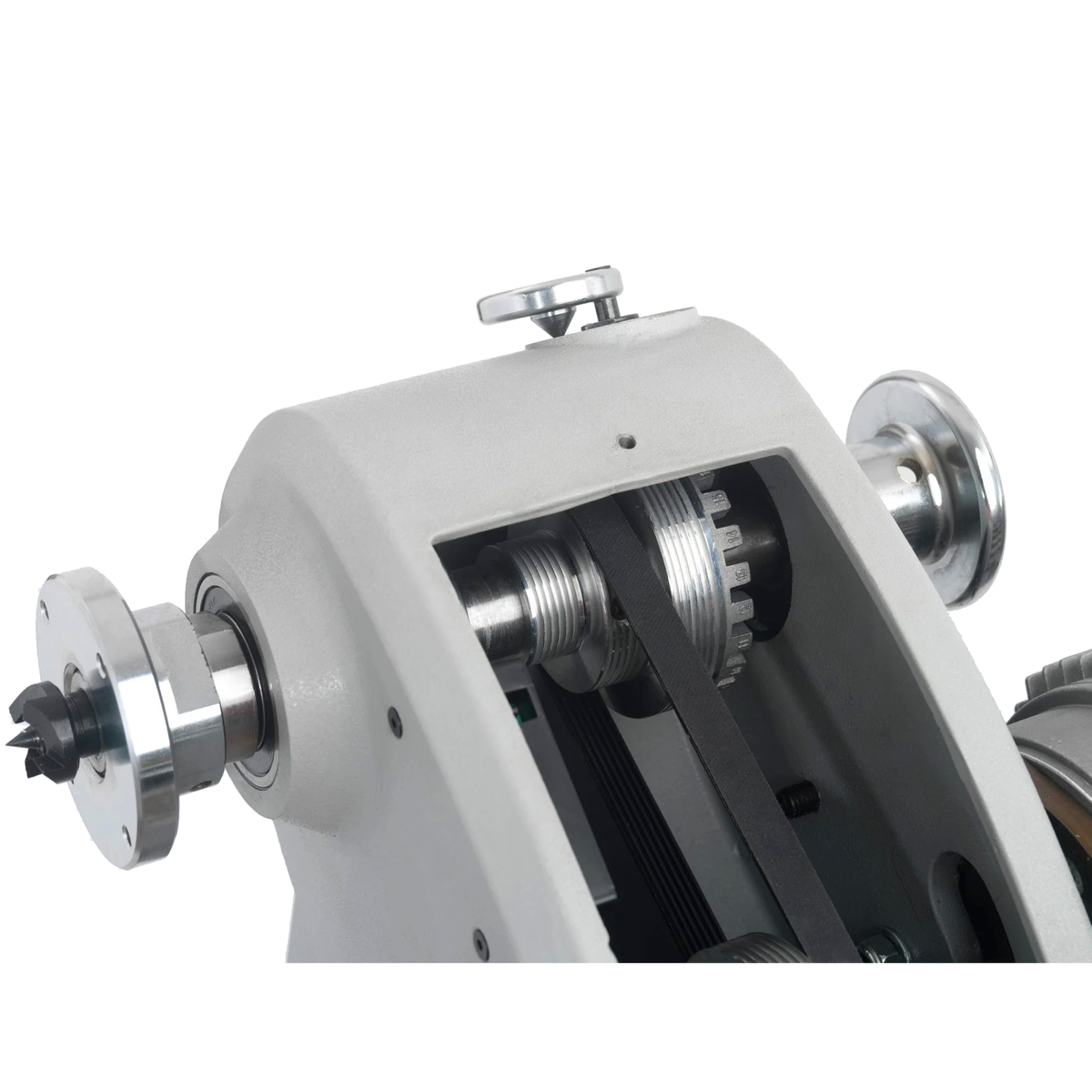

• 3-Step pulley system
• Adjustable feet (not shown in all photos above)
• 5 Year Warranty

Includes

• Tool Rest - 12"
• Face plate - 3-3/16" (82 mm)
• Live Center
• Drive Center - 4-prong
• Spindle wrenches
• Knockout bar

Specifications:

• Maximum bowl diameter - 39"
• Maximum swing over bed - 18"
• Maximum between centers - 24"
• Spindle height from floor - 46 to 47-1/2"
• Spindle speeds - 250 - 3880 rpm
• #2 Morse Taper
• Spindle Thread - 1-1/4" X 8 tpi
• Motor output - 1.5 kW (2 hp) - AC Variable Speed
• Power cord length - 7ft
• 230 V
• Weight: 319 lb
• Size: L 58" x D 21-1/4" x H 48-1/2"

PLEASE NOTE:  This lathe runs on 230 V power. It comes with a NEMA 6-15P plug. (See the picture to the right.) You will need a 230V 15A or 20A outlet with the correct configuration to use this lathe.

Additional Information

Record Power Regent Lathe Manual
