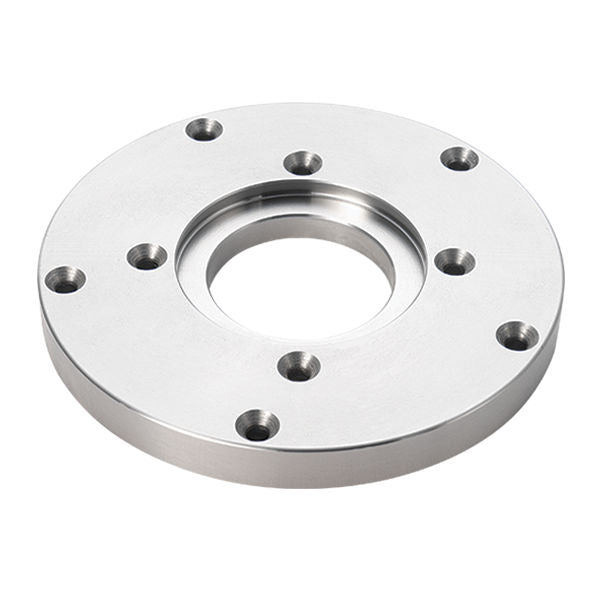

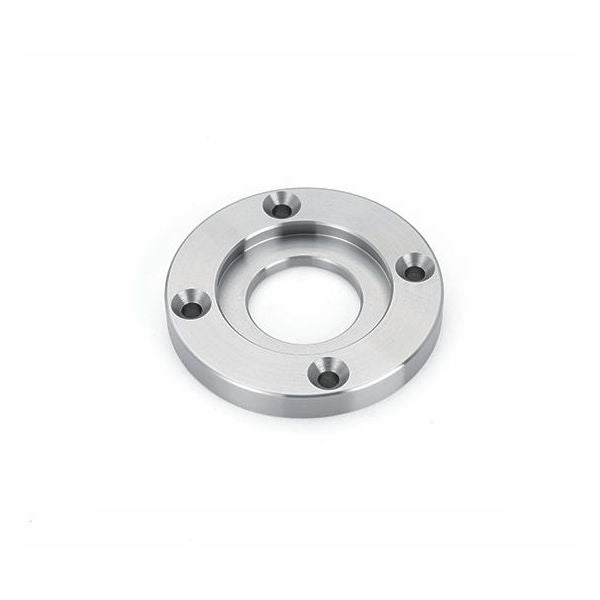

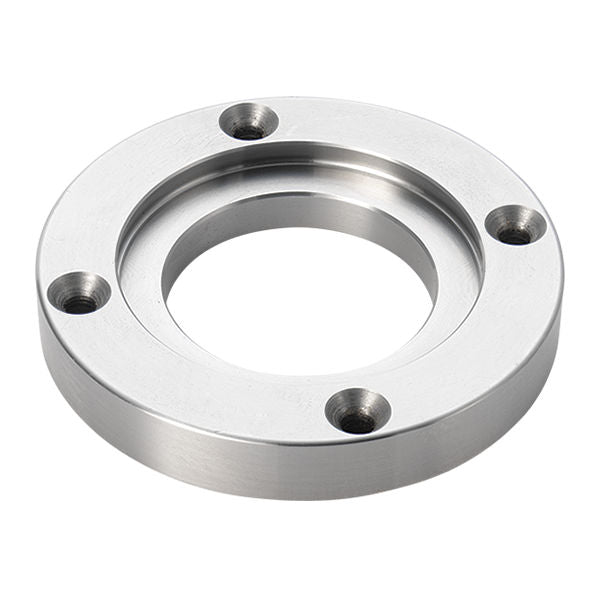

Record Power Faceplate Rings

Faceplates have always been regarded as a safe and secure holding method. However, they are a slower mounting method (especially when compared to a scroll action chuck). Now, you can have the best of both worlds. Faceplate Rings offer the same secure holding power of a faceplate, combined with the quick convenience of your chuck.

• The Faceplate Rings fit directly into your Record Power Chuck (appropriate jaw needs to be in the chuck). You don't have to remove the chuck from your lathe, as you would with traditional faceplate mounting.
• Fast mounting method for bowl blanks
• Best alternative to your woodworm screw mounting, which is only recommended for smaller bowls
• It is a strong mounting method, even with irregular sized wood, and rough cut surfaces

(Put your cursor over the small image to the left for a larger image.)

Size	Outside Diameter	Gripe Diameter	Inside Diameter	Compatible Chucks	Required Jaws	RP #
50mm - 2"	87mm (3-7/16")	60mm (2-3/8")	44mm (1-3/4")	SC3 and SC4 Chucks	62313 50mm Standard Jaws	62572
100mm - 4"	126mm (4-15/16")	60mm (2-3/8")	44mm (1-3/4")	SC3 and SC4 Chucks	62313 50mm Standard Jaws	62572
68mm - 2-11/16"	68mm (2-11/16")	42mm (1-5/8")	28mm (1-1/8")	SC1 and SC2 Chucks	62303 40mm Standard Jaws	62571
Metric measurements are binding. Inch measurements are approximate. All of the required jaws are standard equipment on the compatible chuck.
