Record Power SC3 and SC4 Lathe Chuck Jaws
Record Power SC3 and SC4 Lathe Chuck Jaws
Couldn't load pickup availability

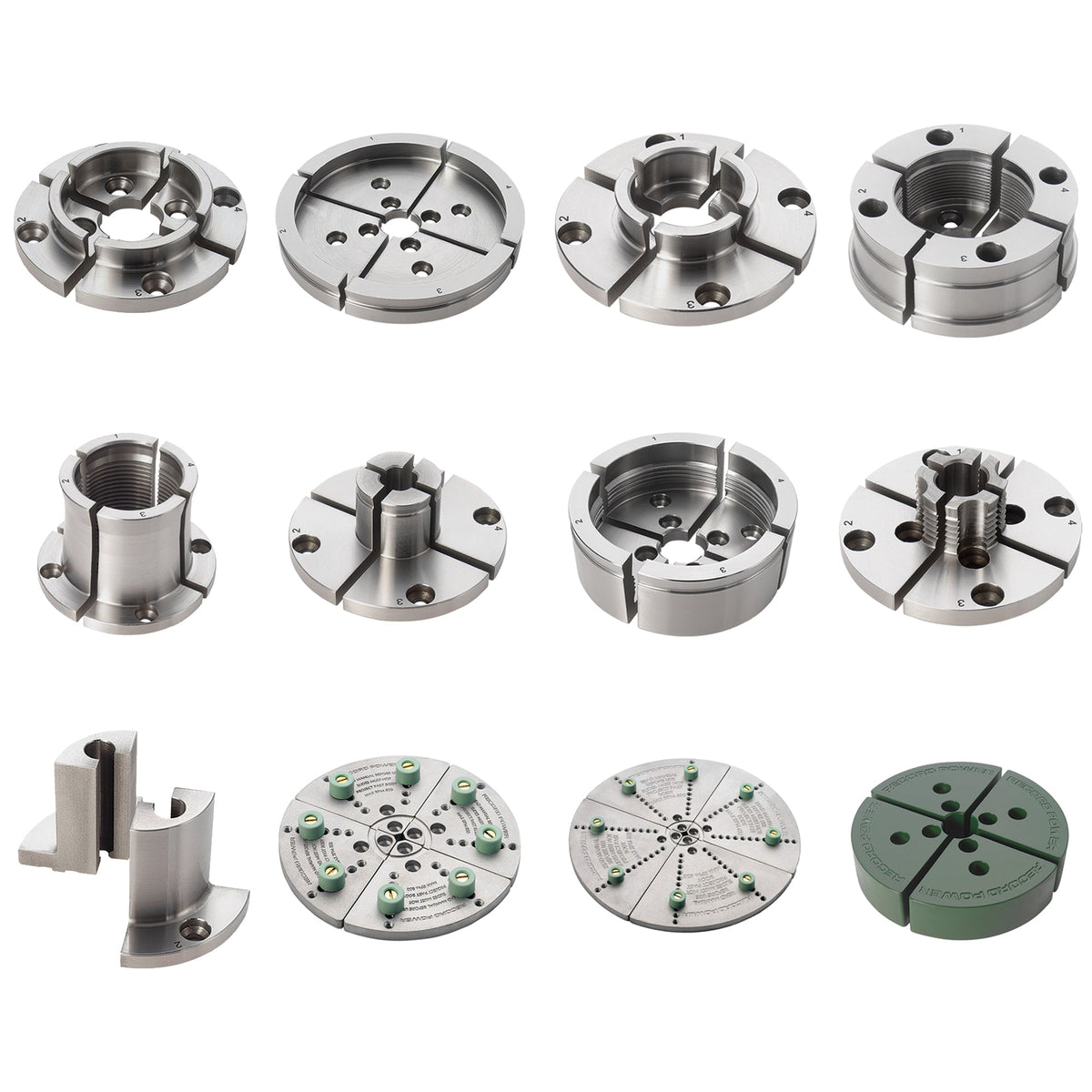

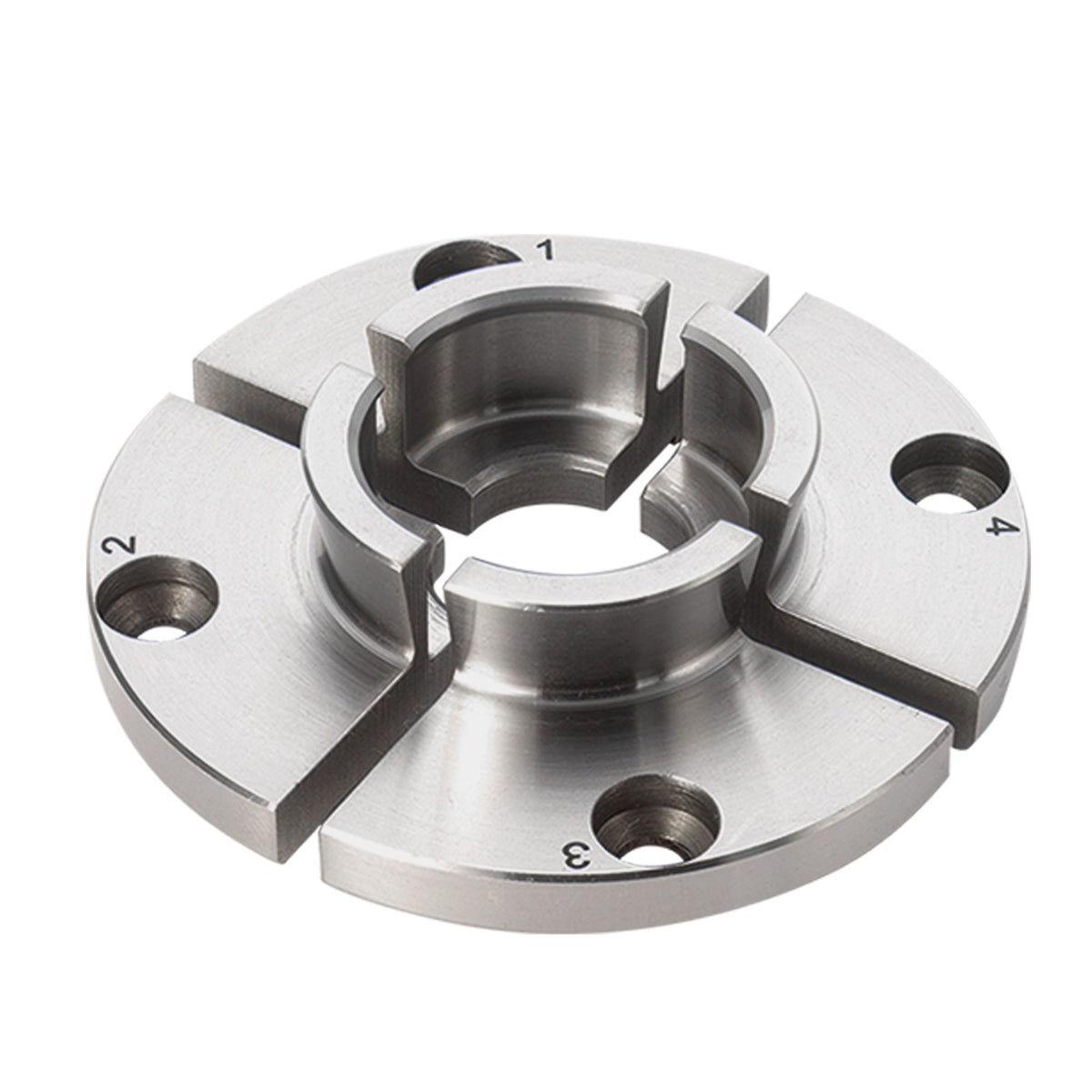

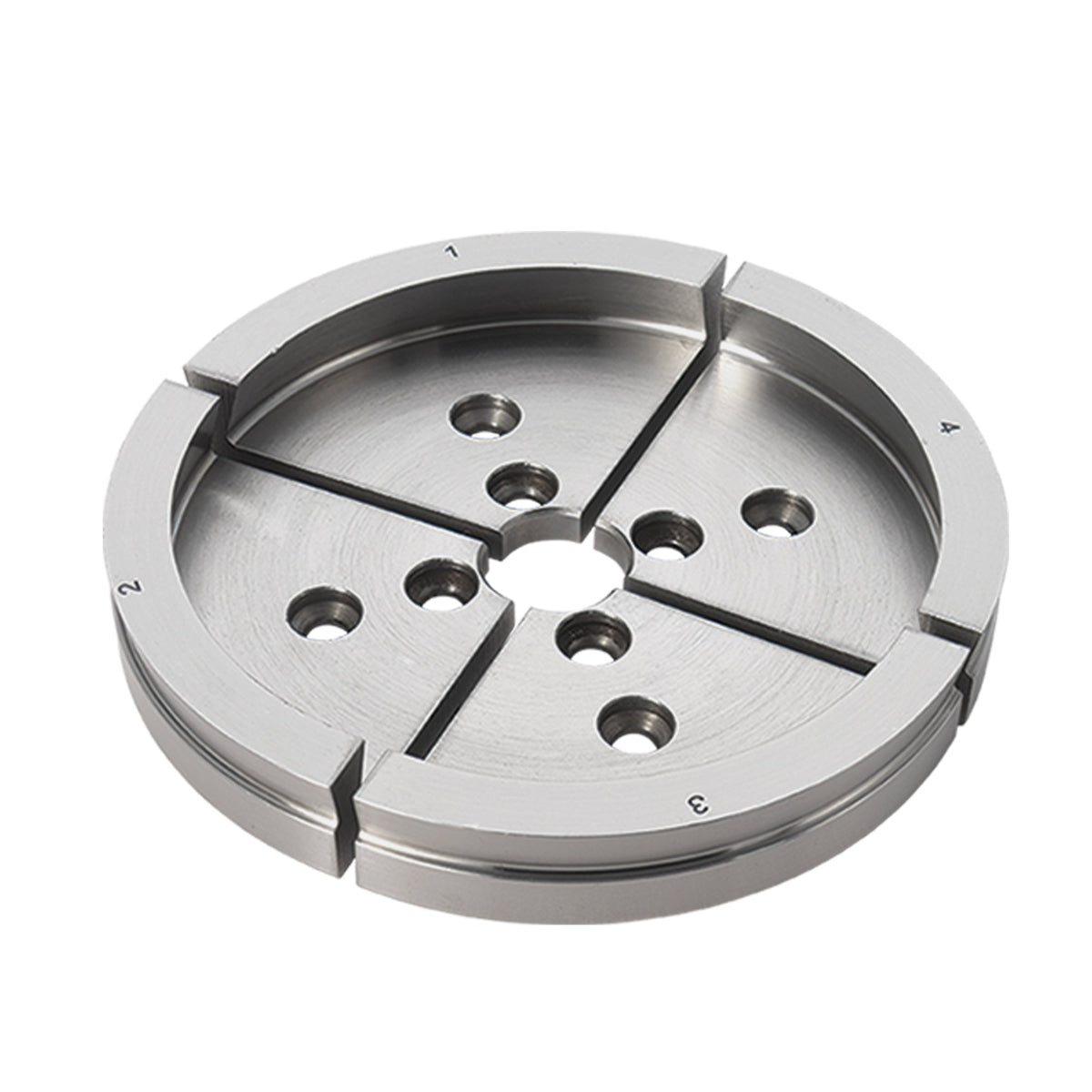

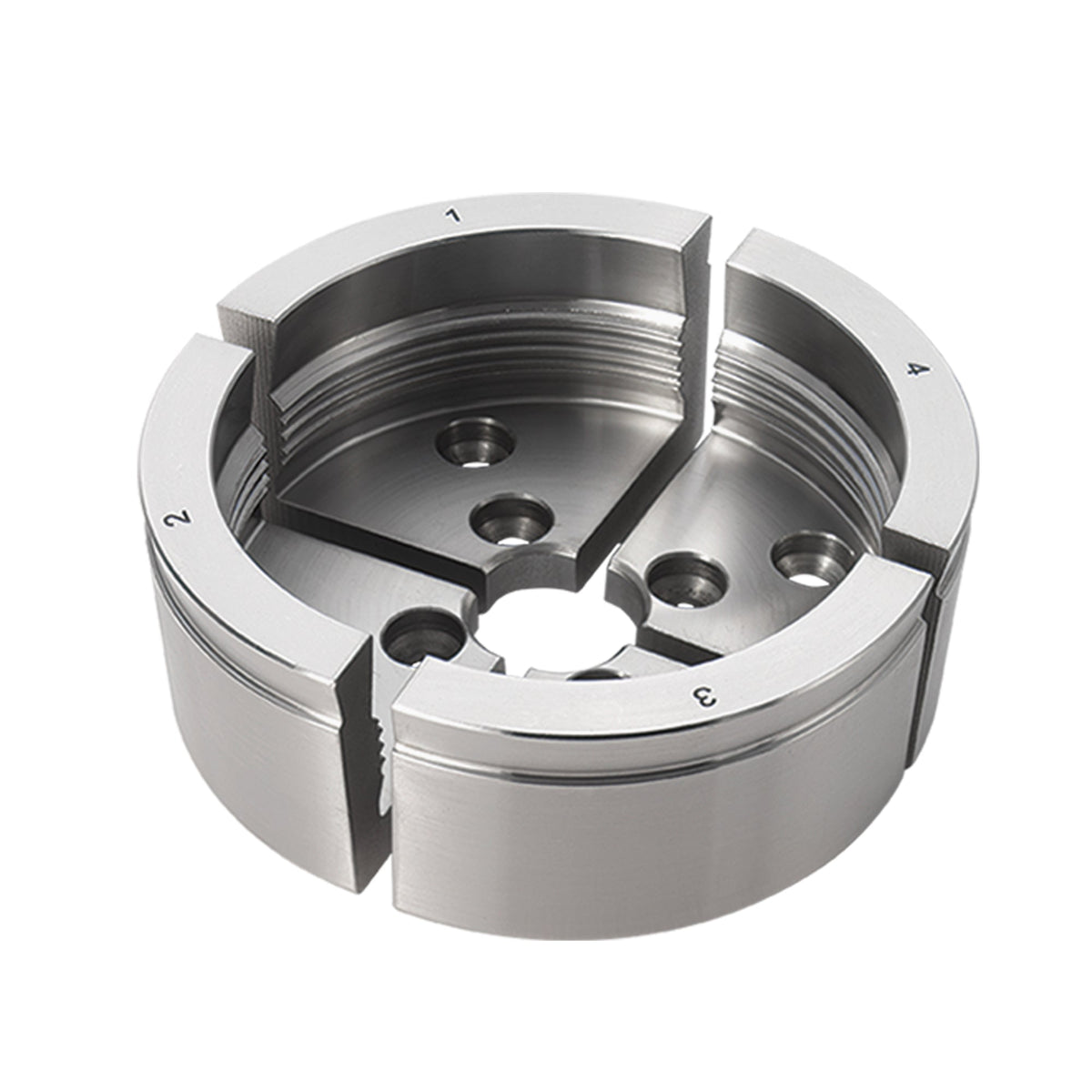

Record Power offers fourteen jaws designed to grip just about anything you could fit on their SC3 & SC4. The Record Power jaws offer the ability to rough turn a bowl, re-chuck a bowl to finish turn the outside, turn a box, drill a pen blank and many other operations.
| Type | Internal Grip | External Grip Round |
External Grip Square |
RP # | ||
|---|---|---|---|---|---|---|
 35 mm - 1 -3/8" |
1 -1/2" - 2 -5/16" (38-58 mm) |
1 -1/8" - 1 -7/8" (28-47 m) |
5/8" - 1 -7/16" (16-37 mm) |
62321 | ||
 50 mm - 2" ♦ |
2 -1/16" - 2 -13/16" (52-72 mm) |
1 -5/8" - 2 -3/8" (42-61 mm) |
1 -3/16" - 2" (30-51 mm) |
62313 | ||
 75 mm Heavy Bowl - 3" |
3 -3/16" - 4" (81-102 mm) |
1 -13/16" - 2 -9/16" (46-65 mm) |
1 -5/16" - 2 -1/8" (33-54 mm) |
62322 | ||
 100 mm Dovetail - 4" Deep Gripper |
3 -11/16" - 4 -1/2" (94-114 mm) |
3" - 3 -3/4" (76-95 mm) |
2 -1/8" - 2 -15/16" (54-74 mm) |
62329 | ||

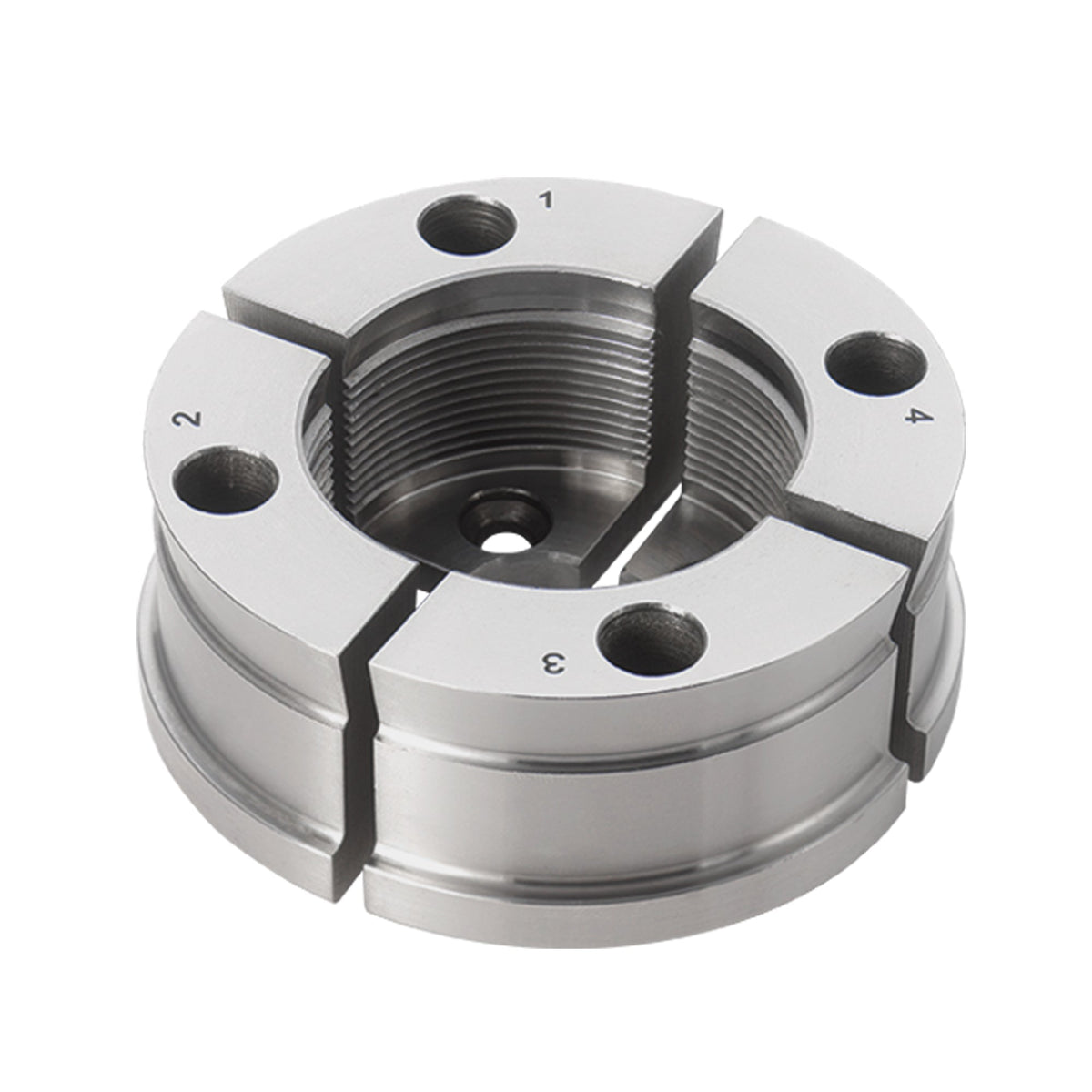

 130 mm Dovetail - 5 -1/8" |
4 -15/16" - 5 -3/4" (125-145 mm) |
4 -1/8" - 4 -13/16" (104-123 mm) |
2 -15/16" - 3 -11/16" (74-94 mm) |
62317 | ||

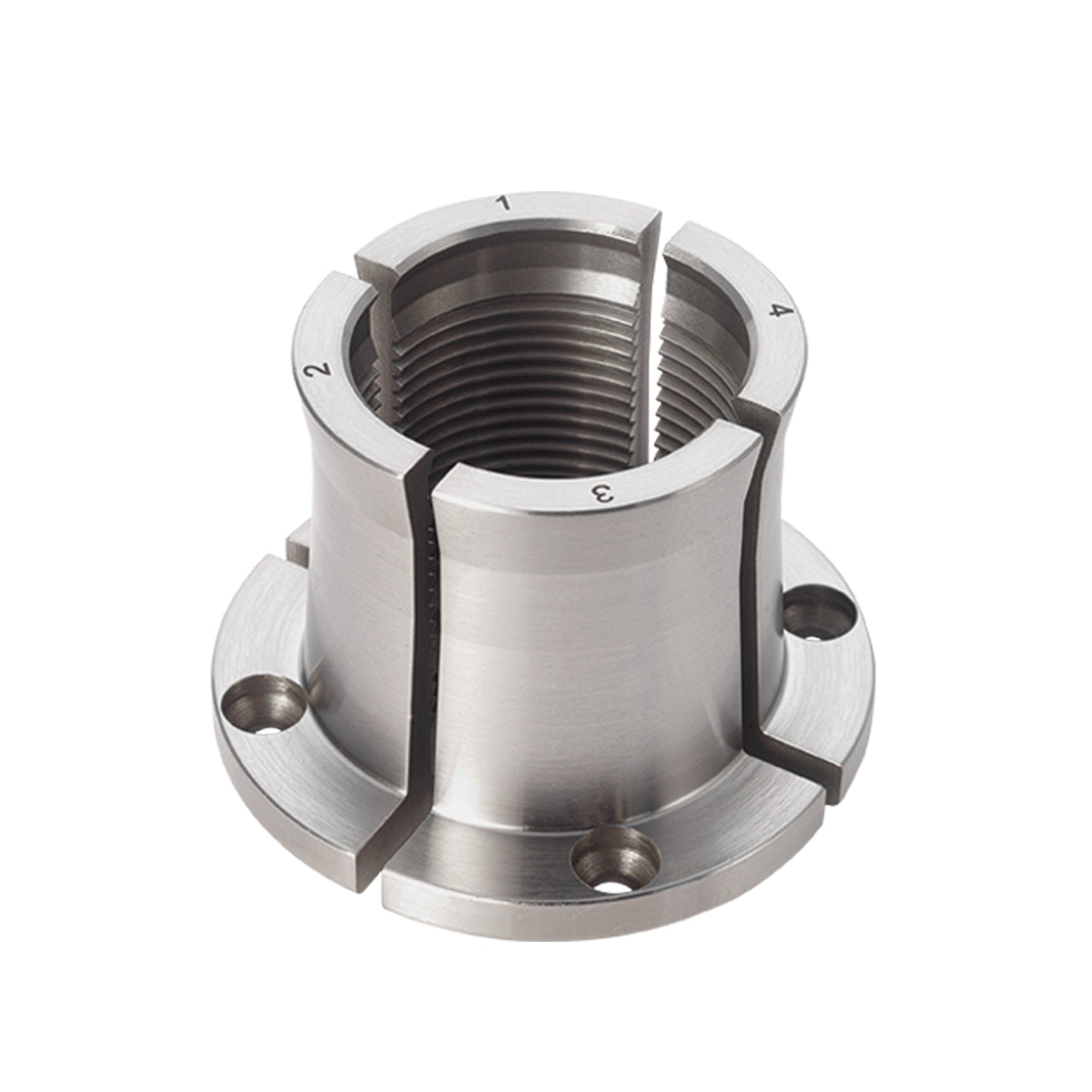

 Long Nose |
2 -1/8" - 2 -15/16" (54-74 mm) |
1 -1/2" - 2 -5/16" (38-58 mm) |
1 -1/16" - 1 -7/8" (27.5-48 mm) |
62323 | ||

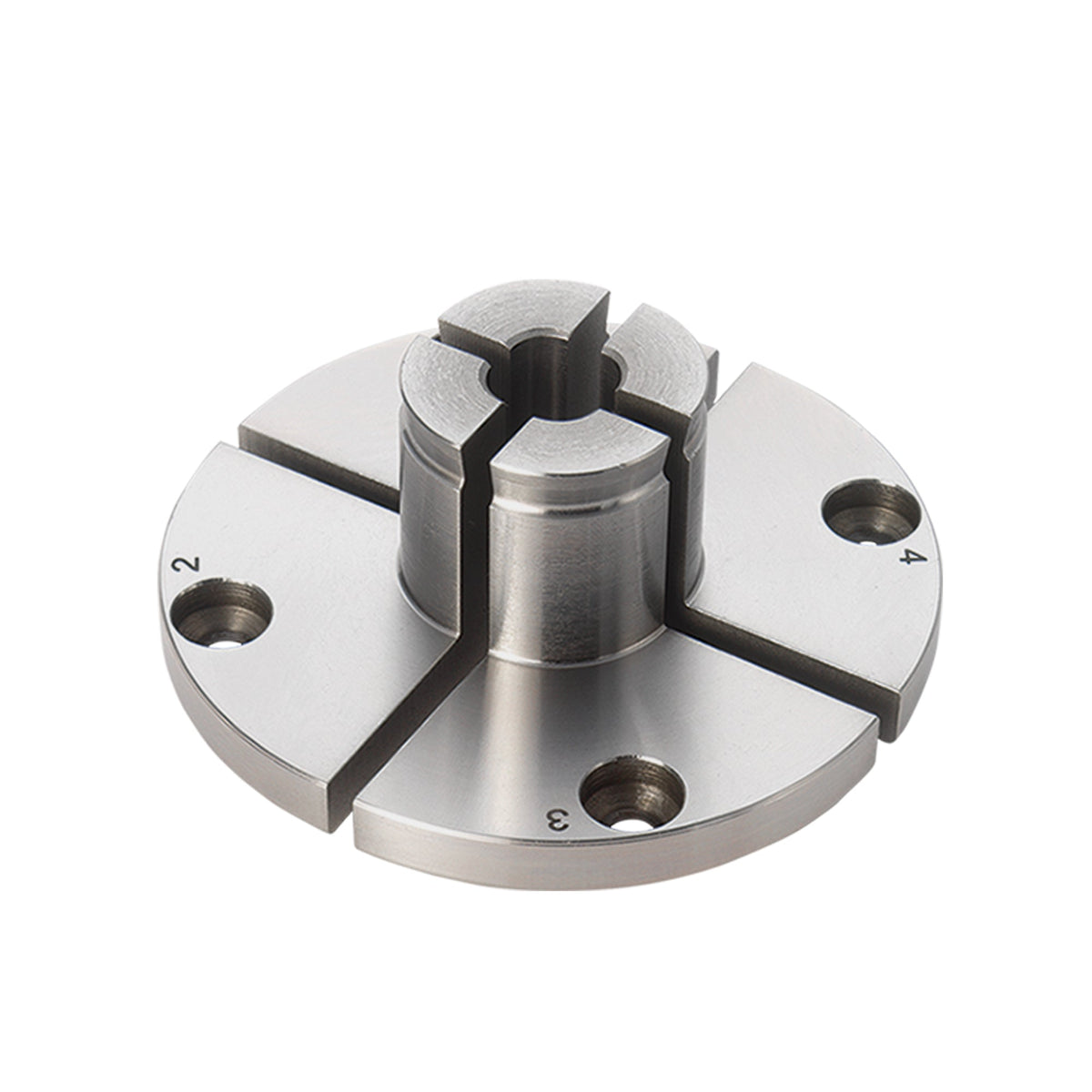

 Pin |
1" - 1 -3/4" (25-45 mm) |
3/8" - 1 -1/8" (9-28 mm) |
1/4" - 1 -1/16" (7-27 mm) |
62327 | ||

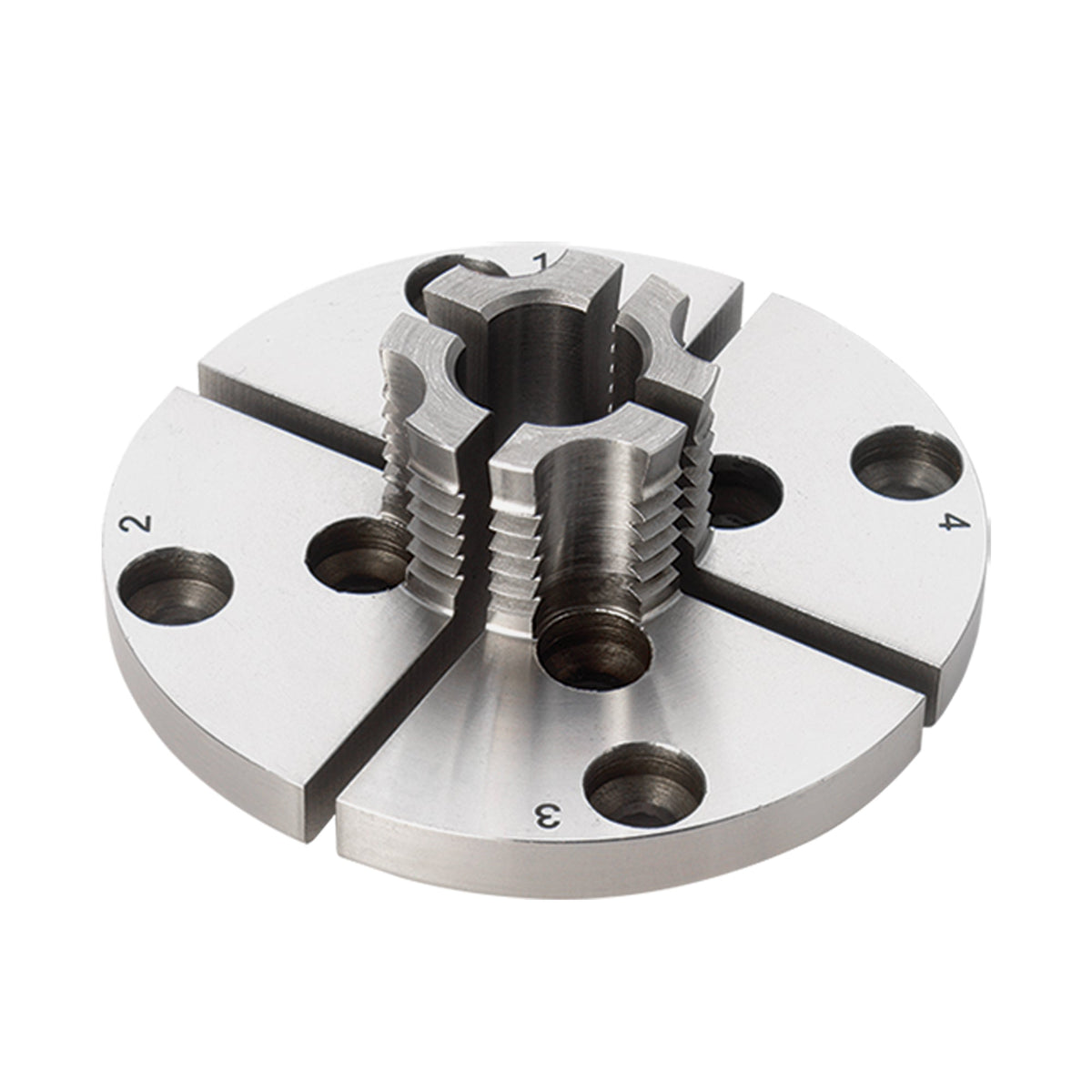

 Mini Spigot |
1" - 1 -13/16" (26-46 mm) |
1/2" - 1 -5/16" (13-33 mm) |
7/16" - 1 -1/4" (11-31 mm) |
62336 | ||

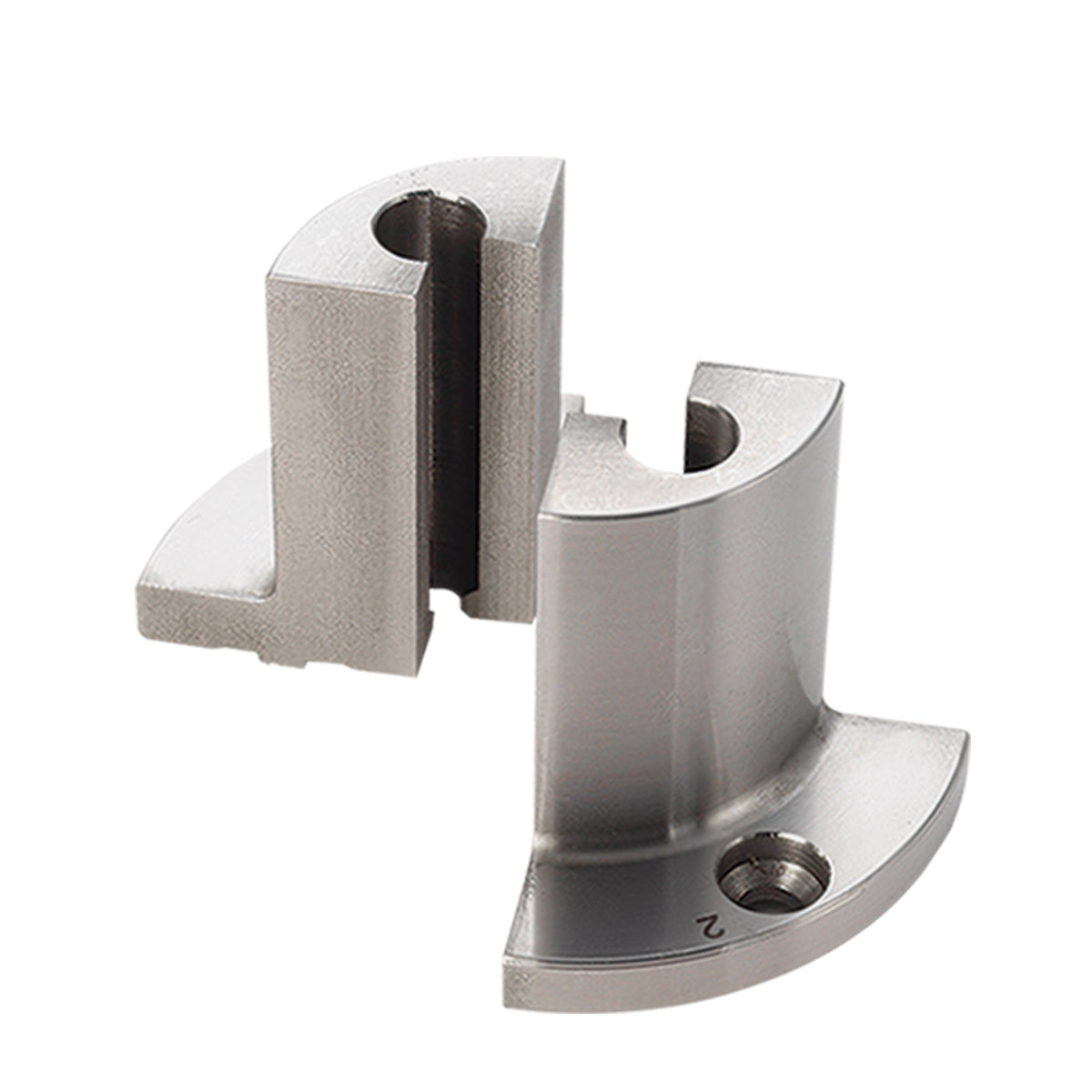

 Pen |
1" - 1 -13/16" (35-64 mm) |
7/16" - 13/16" (11-20 mm) |
3/8" - 1" (10-26 mm) |
62337 | ||
 Mini Remounting |
3 -3/4" - 8 -7/16" (95-215 mm) |
2 -5/16" - 6 -11/16" (59-170 mm) |
2 -1/6" - 6 -1/16" (53-154 mm) |
62356 | ||

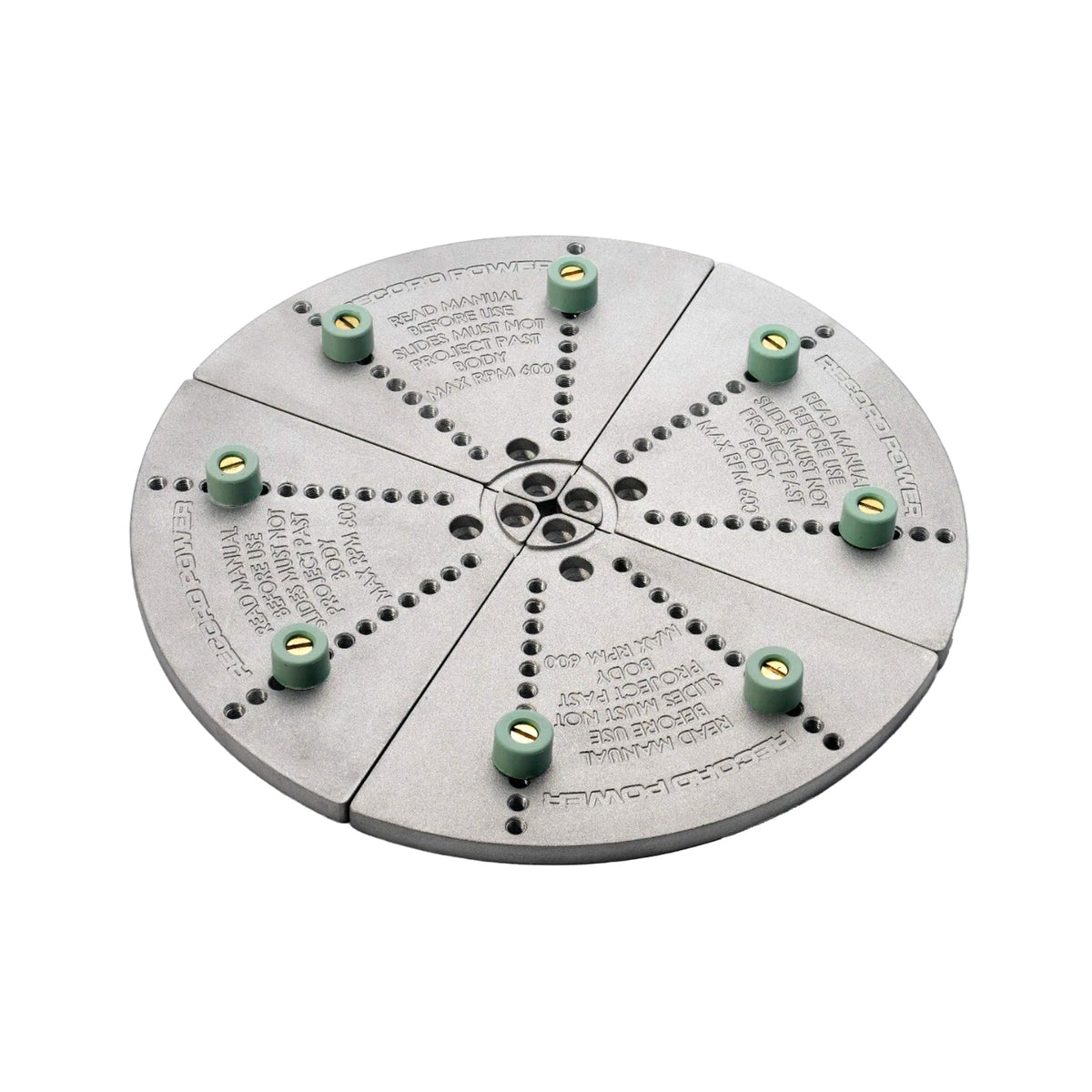

 Mega Remounting |
2 -1/6" - 12 -7/16" (53-316 mm) |
2 -3/16" - 10 -11/16" (55-272 mm) |
2" - 9 -13/16" (51-250 mm) |
62377 | ||

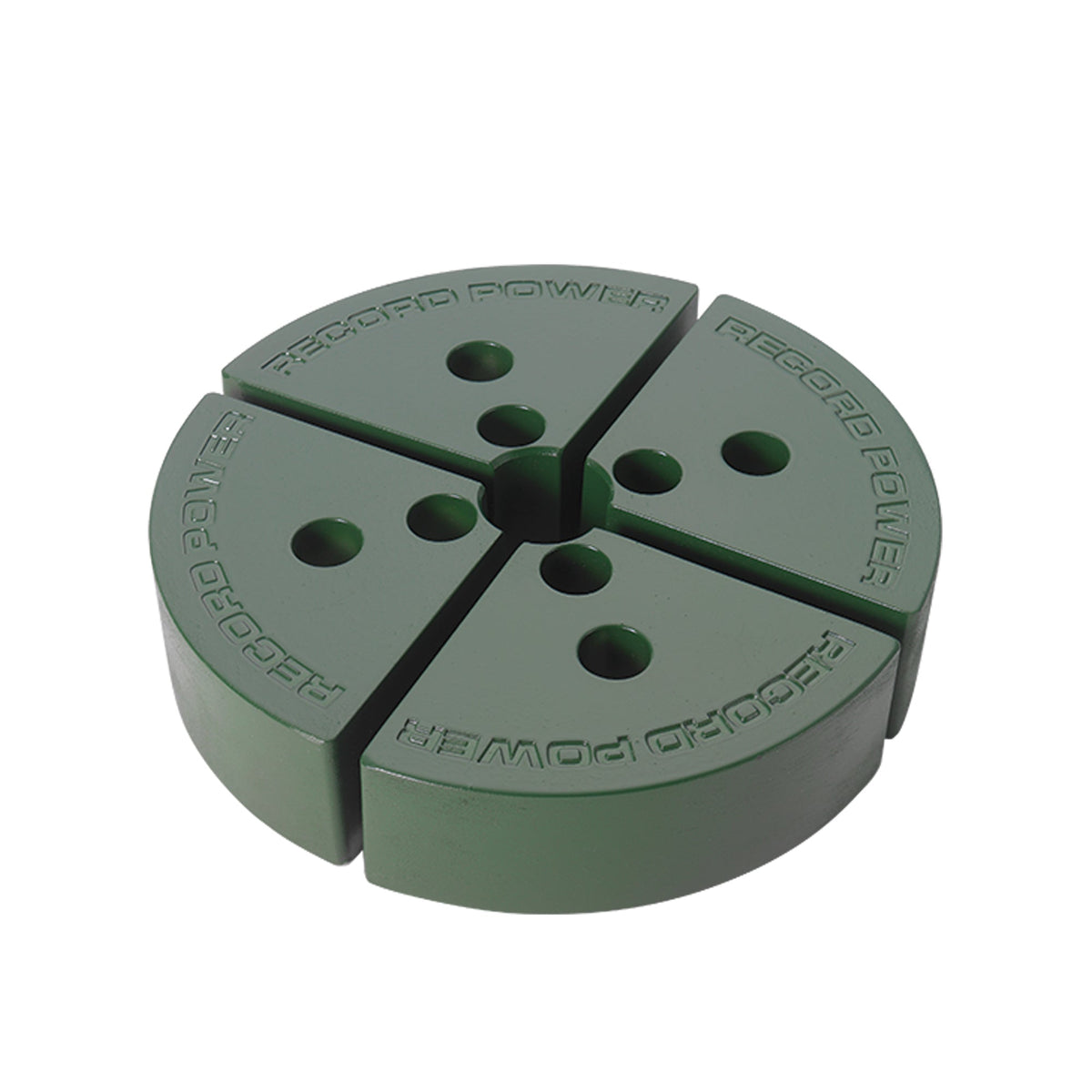

 Soft Plastic |
Custom Fit Outside Diameter 5 -1/2" (140 mm) |
62378 | Add to Cart | |||
|
Metric measurements are binding. Inch measurements are approximate. ♦ 50 mm Jaws are standard equipment on the SC3 & SC4 chucks. |
||||||
