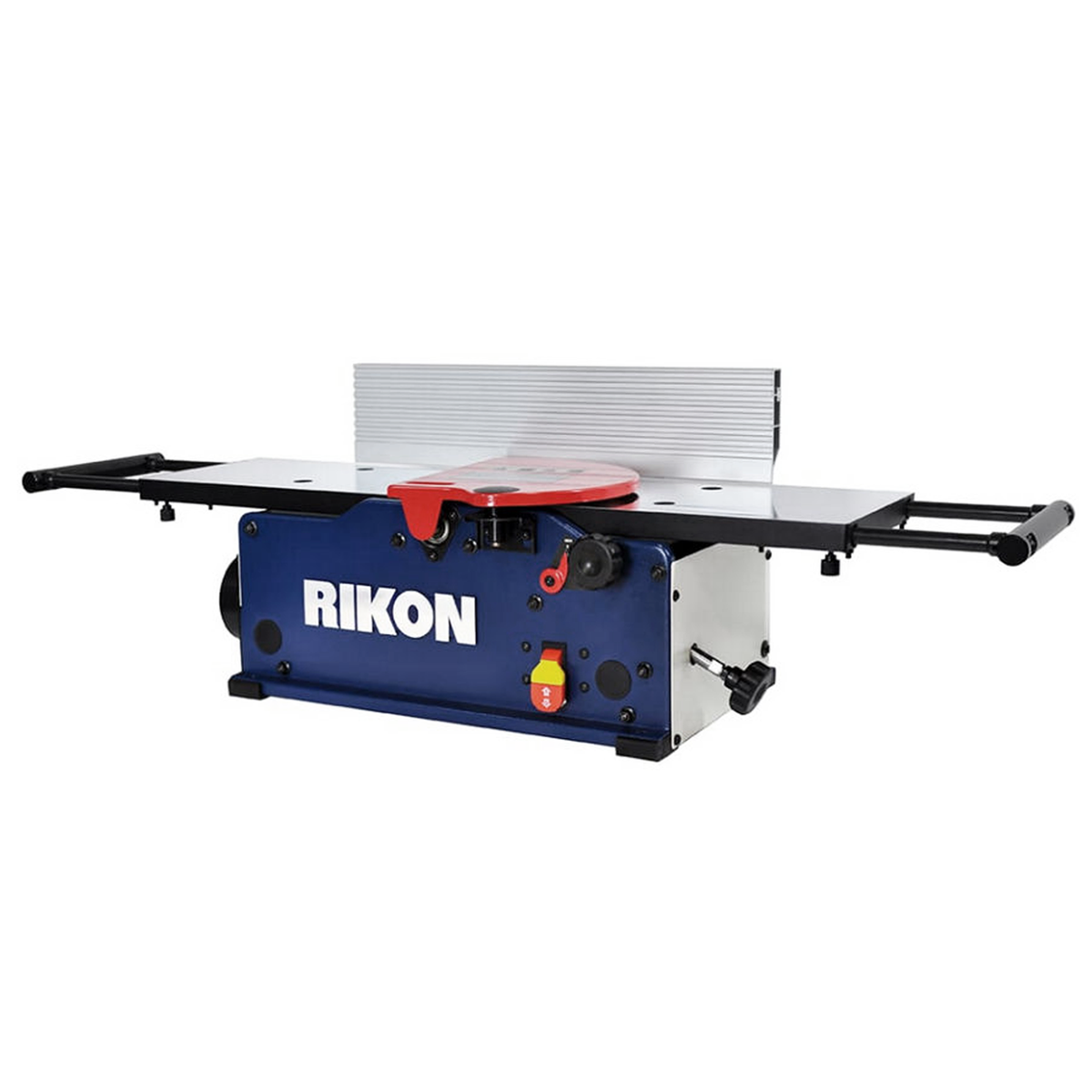

Rikon 12 inch Helical-style Benchtop Jointer 20-1200H

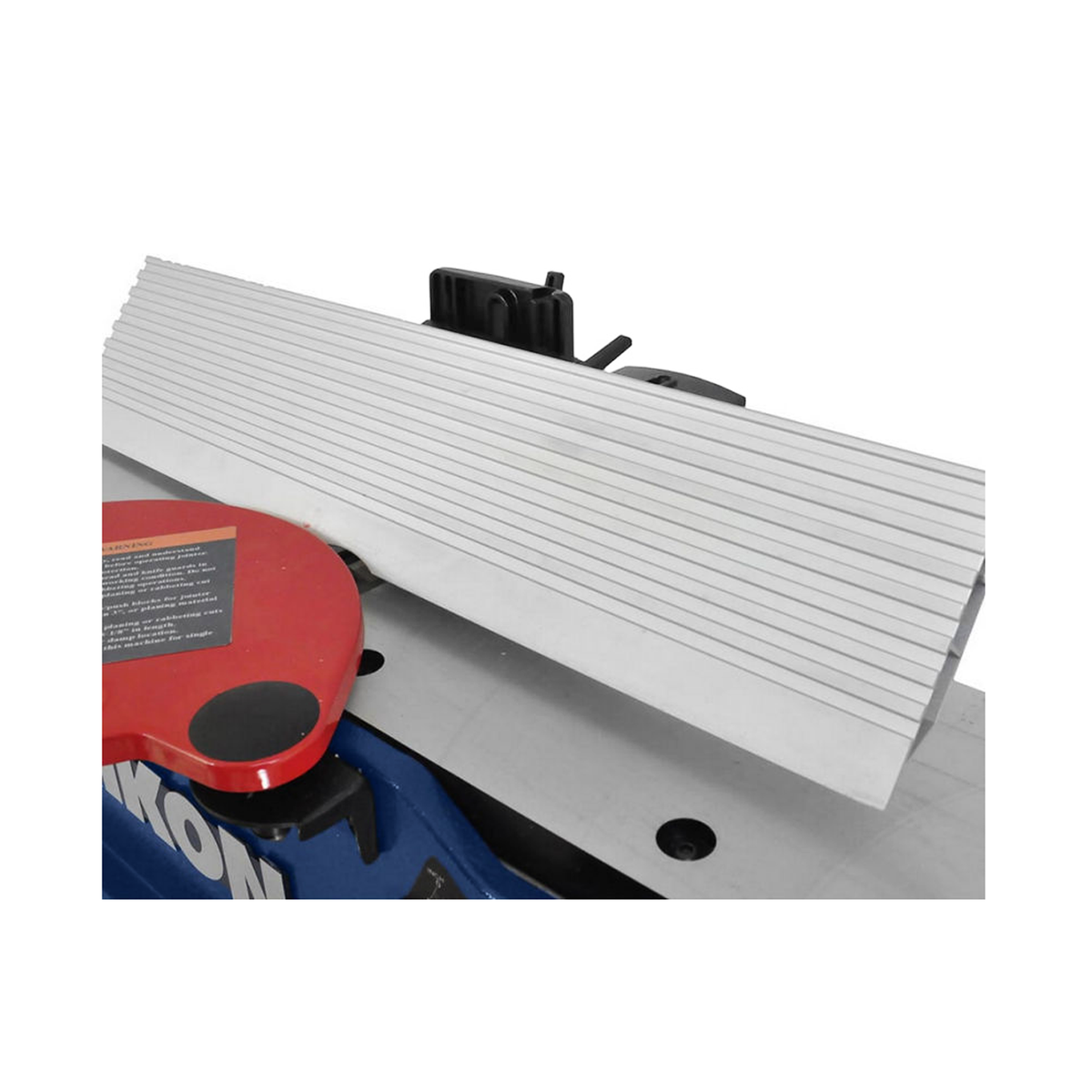

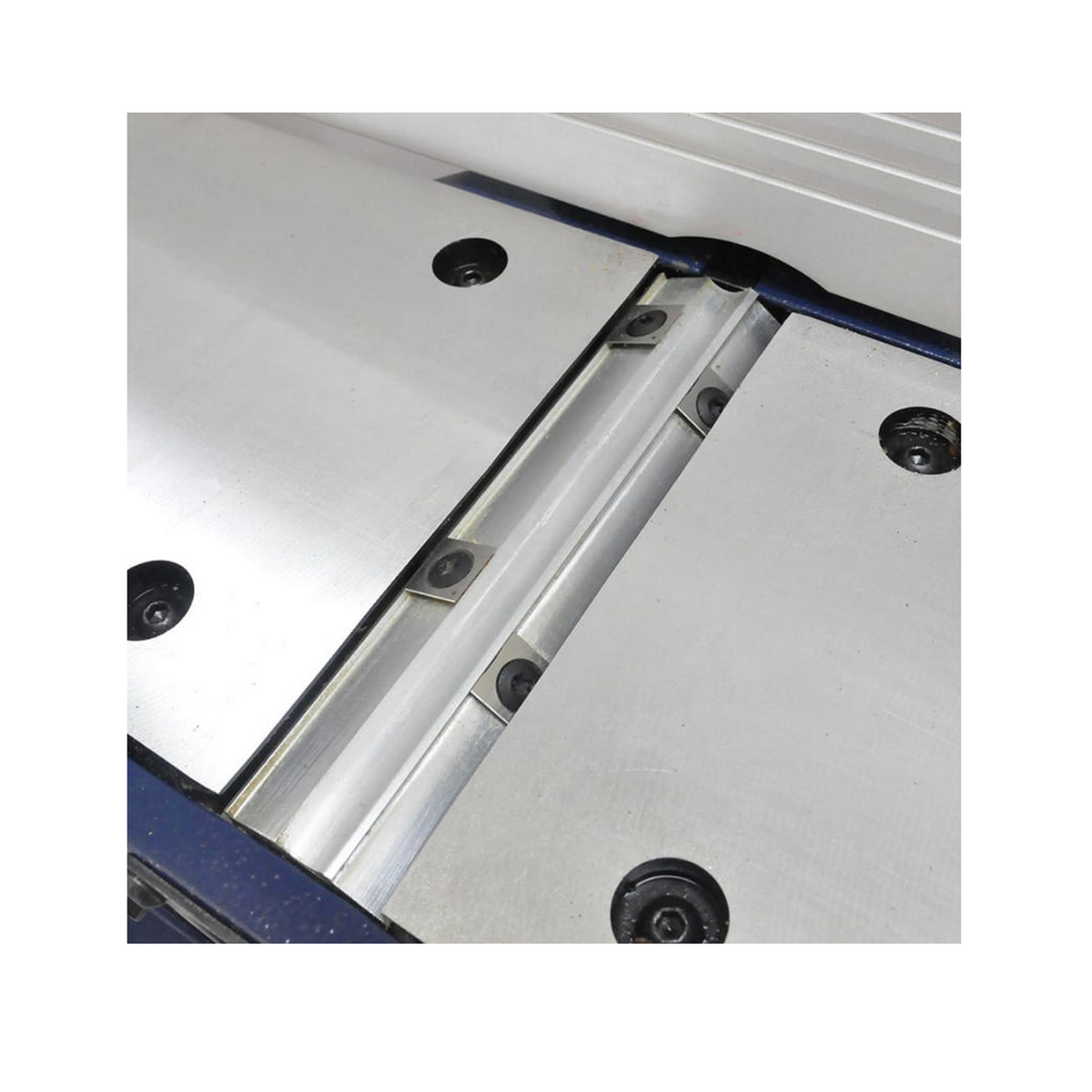

Rikon's 20-1200H 12" Benchtop Jointer has a 6-row helical-style cutter head with 24 HSS, 2-edge insert cutters for super cutting action, flat surfacing results, and easy knife changes. Table extensions expand the work surface from 34" to 54" long. It has rigid all-metal construction, machined cast iron tables, a quick depth setting mechanism with scale, adjustable fence that tilts from 90° to 45° quickly and accurately and a spring-loaded safety guard. It's a capable machine that will fit in even the most space-challenged shop.

The 20-1200H Jointer includes a FIVE-YEAR manufacturer's warranty.

Specifications

• Motor - 12 A, 120 V, 60 Hz, 19,000 rpm
• Overall Table Size - 34" x 12-3/16"
• Overall Table Size w/ extensions - 54" x 12-3/16"
• Stock Width - 3/4" - 12"
• Minimum Stock Length - 10"
• Minimum Stock Thickness - 1/2"
• Maximum Depth of Cut - 1/8"
• Cutterhead speed - 11,000 rpm
• 2-sided Knife Insert Size - 14.2 x 14.2 x 2 mm (0.56" x 0.56" x 0.077")
• Knife inserts - 24 in 6 rows
• Cutterhead diameter - 2"
• Fence size - 24" x 4-3/8"
• Fence Tilt - 90-135°
• Dust Port - 4" (4" to 2-1/2" & 2-1/4" adapter included)
• Overall dimensions - 54" long x 23" wide x 13" high (with extensions out)
• Base Size - 19" x 15-1/2"
• Net Weight - 87 lb
• Shipping Carton - 39" x 21" x 12-1/4"; 90 lb
• Five Year Warranty

Includes

• 24 2-sided HSS Inserts (installed)
• 4" to 2-1/2" & 2-1/4" dust port adapter
• Manual
• Jointer Push Blocks - 2
• Hex Wrenches - 2.5 mm & 4 mm
• T-Wrench - T25 Torx

Additional Information

Rikon 20-1200HSP Benchtop Jointer Manual
