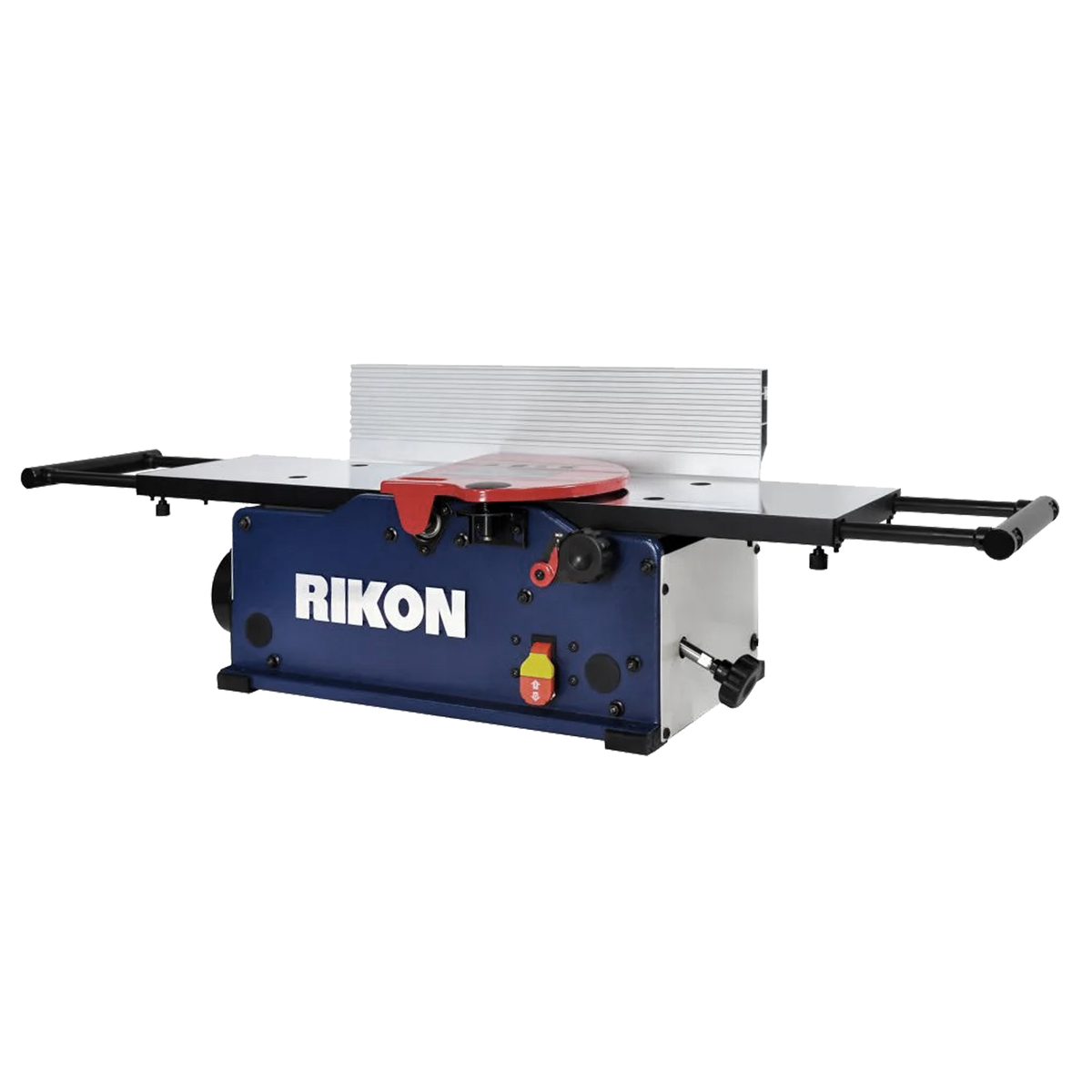

Rikon 8 inch Helical-style Benchtop Jointer 20-800HSP

Now with Synthetic Polymer Coating on the tables for reduced friction!

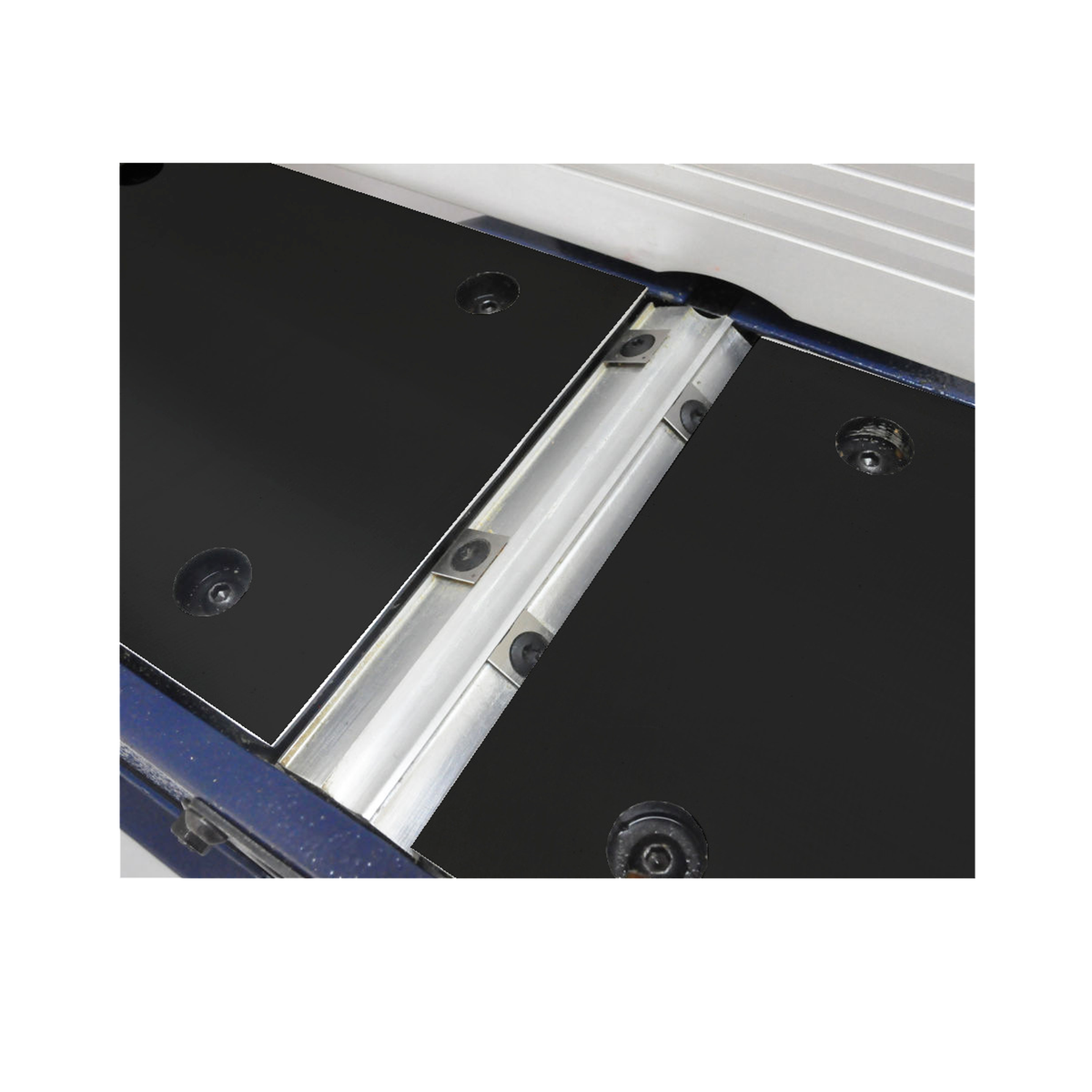

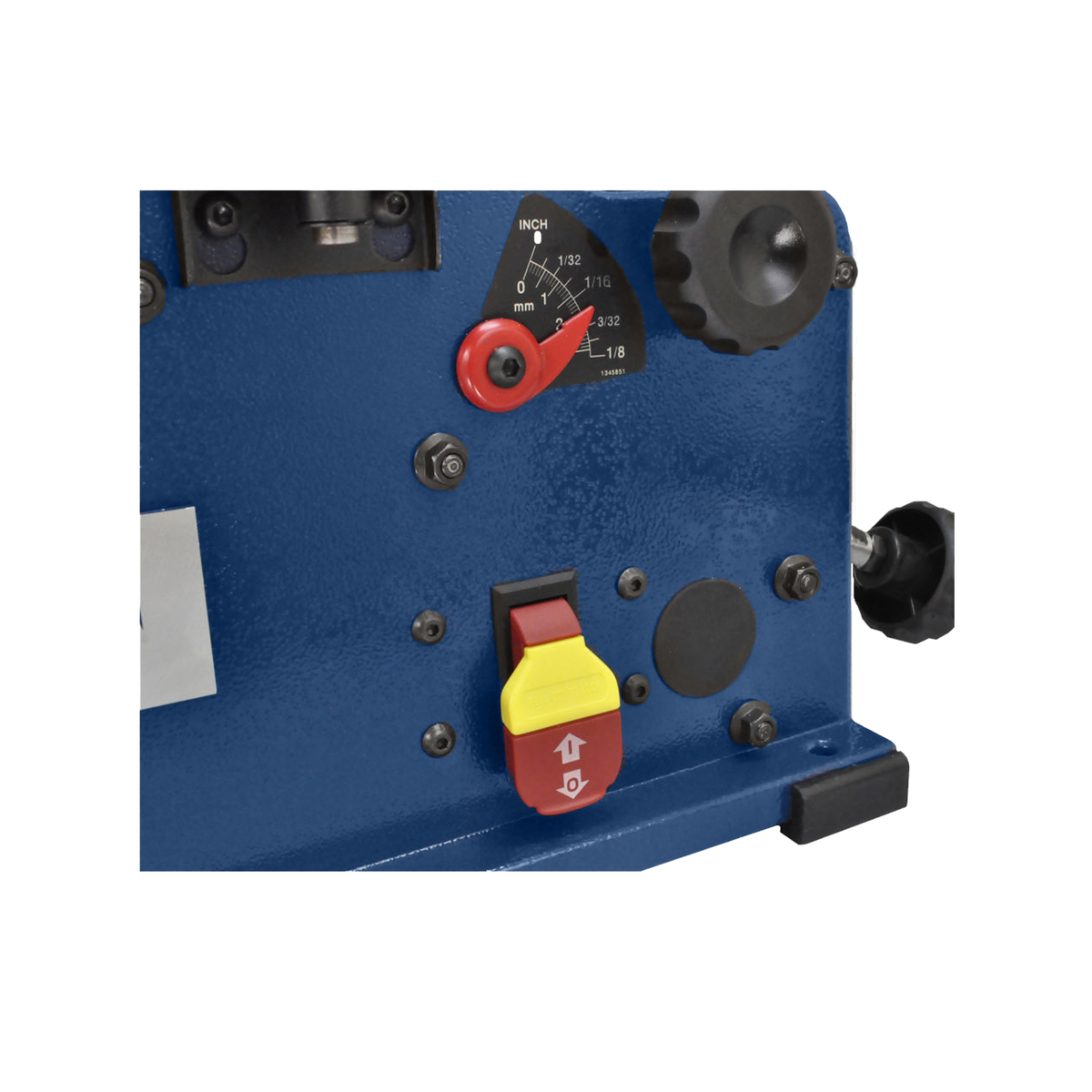

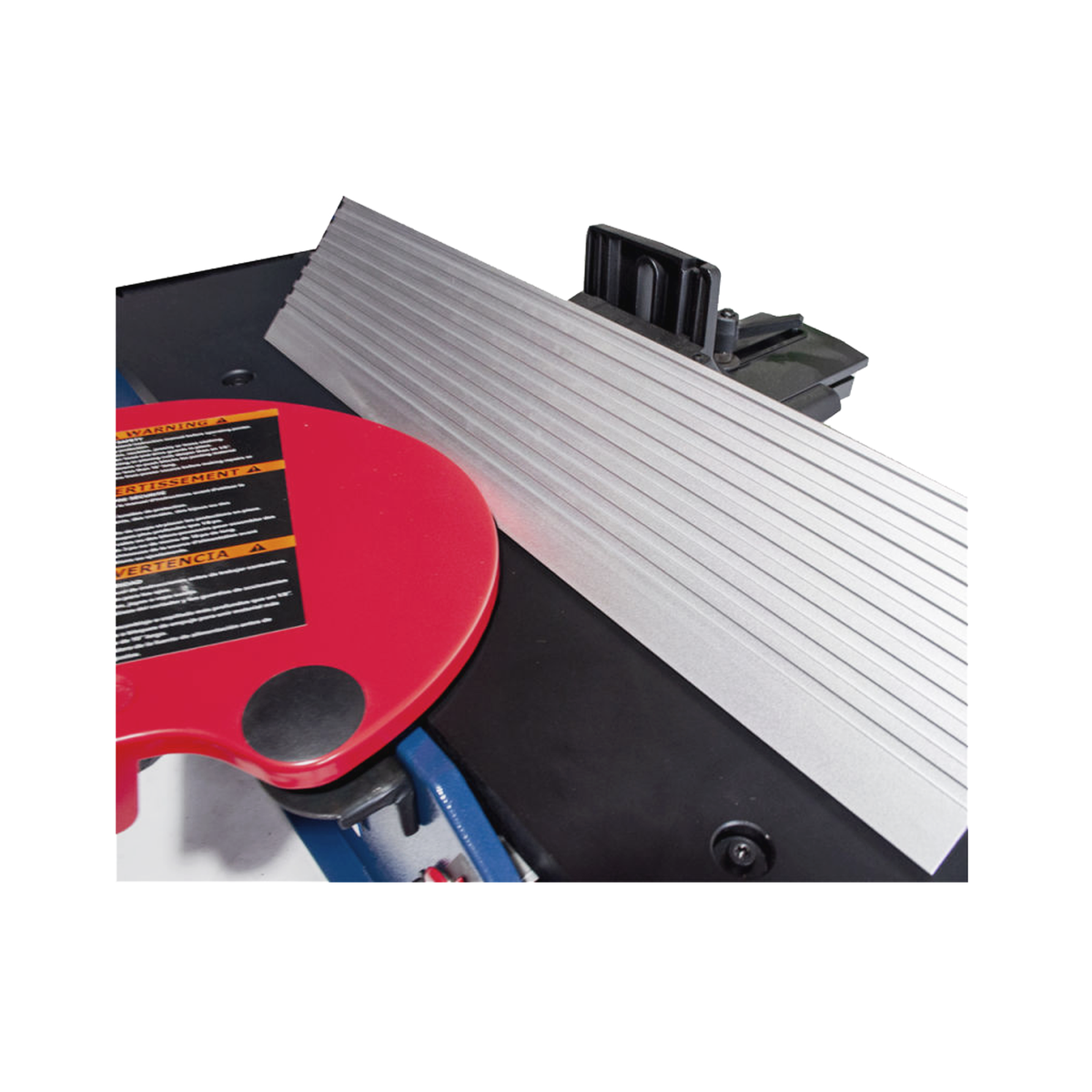

Rikon's 20-800HSP 8" Benchtop Jointer has a 6-row helical-style cutter head with 16 carbide , 2-edge insert cutters for super cutting action, flat surfacing results, and easy knife changes. Table extensions expand the work surface from 30-1/2 to 51-1/2 long. It has rigid all-metal construction, machined aluminum tables with Synthetic Polymer Coating, a quick depth setting mechanism with scale, adjustable fence that tilts from 90° to 45° quickly and accurately and a spring-loaded safety guard. It's a capable machine that will fit in even the most space-challenged shop.

The 20-800HSP Jointer includes a FIVE-YEAR manufacturer's warranty.

Specifications

• Motor - 10 A, 120 V 60 Hz, 20,000 rpm
• Overall Table Size - 30-1/2" x 8-3/16"
• Overall Table Size w/ extensions - 51-1/2" x 8-3/16"
• Outfeed Table Size - 14-1/4 x 8-3/16"
• Stock Width - 3/4" - 8"
• Minimum Stock Length - 10"
• Minimum Stock Thickness - 1/2"
• Maximum Depth of Cut - 1/8"
• Cutterhead speed - 12,000 rpm
• 2-sided Knife Insert Size - 14.2 x 14.2 x 2 mm (0.56" x 0.56" x 0.077")
• Knife inserts - 16 in 6 rows
• Cutterhead diameter - 2"

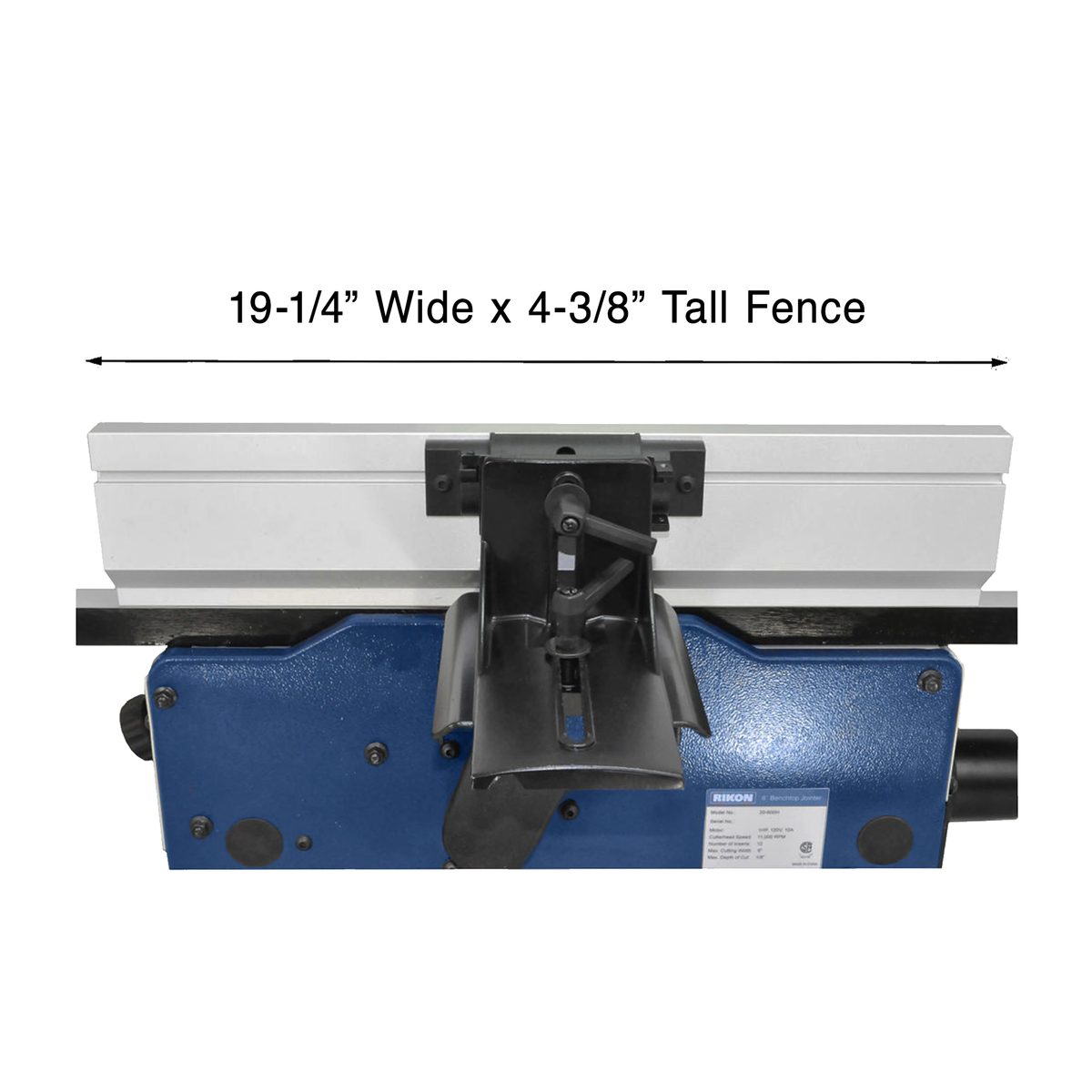

• Fence size - 19-3/4" x 4-3/8"
• Fence Tilt - 90-135°
• Dust Port - 4" (4" to 2-1/2" & 2-1/4" adapter included)
• Minimum Dust Collection airflow - 100 cfm
• No-load Noise level at 3 feet  <100 dB
• Overall dimensions - 51-1/2" long x 18-3/4" wide x 13" high (with extensions out)
• Base Size - 19" x 11-1/4"
• Net Weight - 49 lb
• Shipping Carton - 36-1/4" x 15-1/2" x 11-1/2"; 61 lb
• Five Year Warranty

Includes

• 16 2-sided Carbide Inserts (installed)
• 4" to 2-1/2" & 2-1/4" dust port adapter
• Manual
• Jointer Push Blocks - 2
• Hex Wrenches - 2.5 mm & 4 mm
• T-Wrench - T25 Torx

Additional Information

Rikon 20-800HSP Benchtop Jointer Manual
