Shaper Tools

Shaper Tools Flat-tip Up-Spiral Router Bits

$25.00 USD

Sale Sold out

Shipping calculated at checkout.

Bit Type Spiral Upcut Flat Bit - 1/8 inch x 1/2 inch Spiral Upcut Flat Bit - 1/4 inch x 3/4 inch Spiral Upcut Flat Bit - 1/4 in x 1 inch Spiral Upcut Flat Bit - 4mm x 15mm Spiral Upcut Flat Bit - 6mm x 30mm Spiral Upcut Flat Bit - 8mm x 35mm

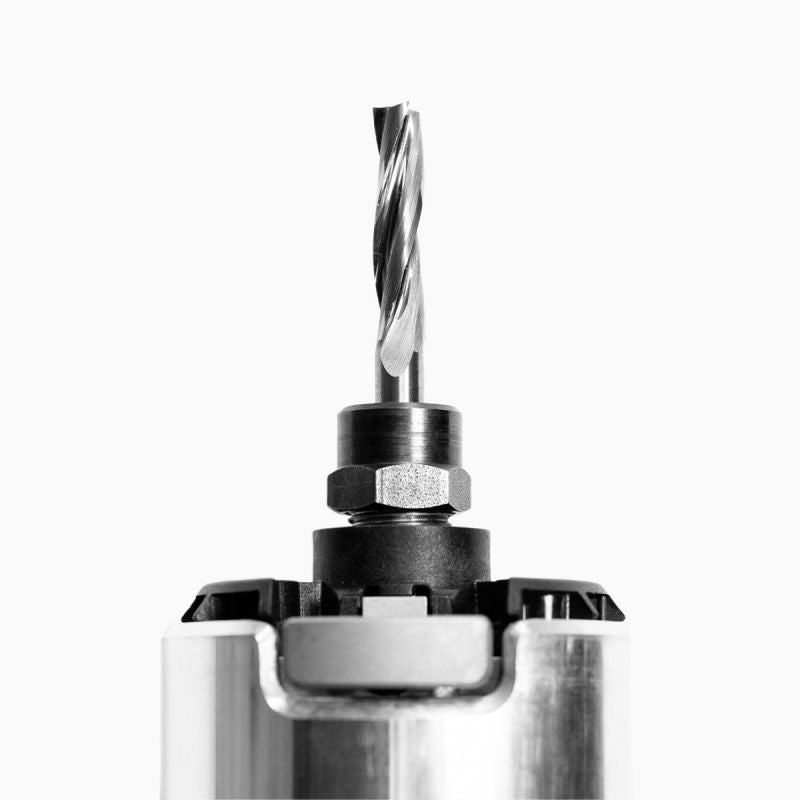

Shaper Origin Router Bits

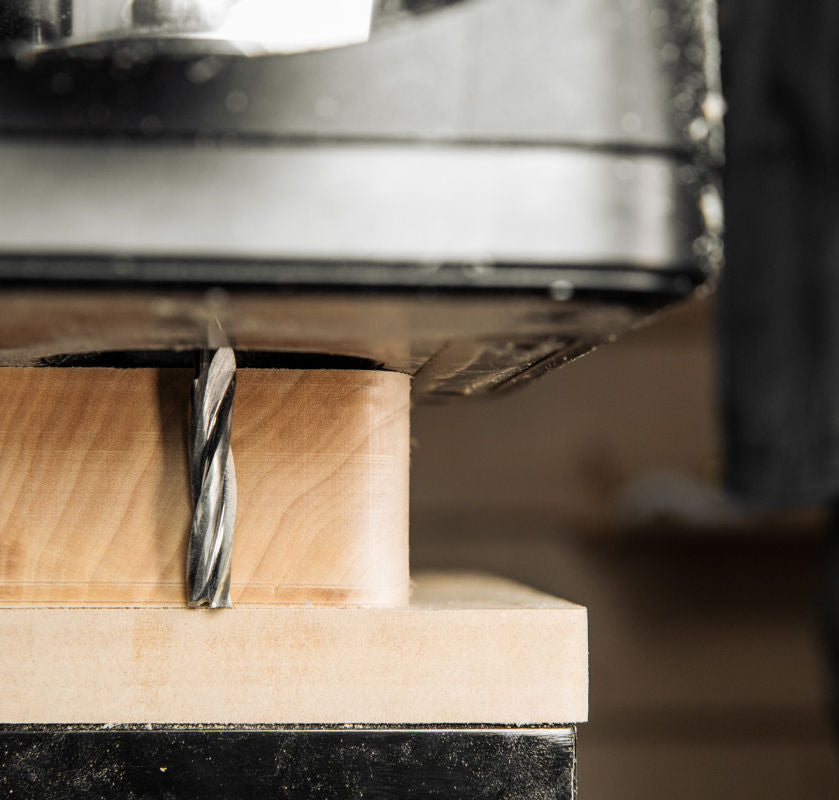

Flat-nose Spiral Up-Cut Bits are the most commonly used bits for machining wood. They're available in 1/8", 1/4", 4mm, 6mm & 8mm diameters. 1/4&quot is the most popular size.

Specifications

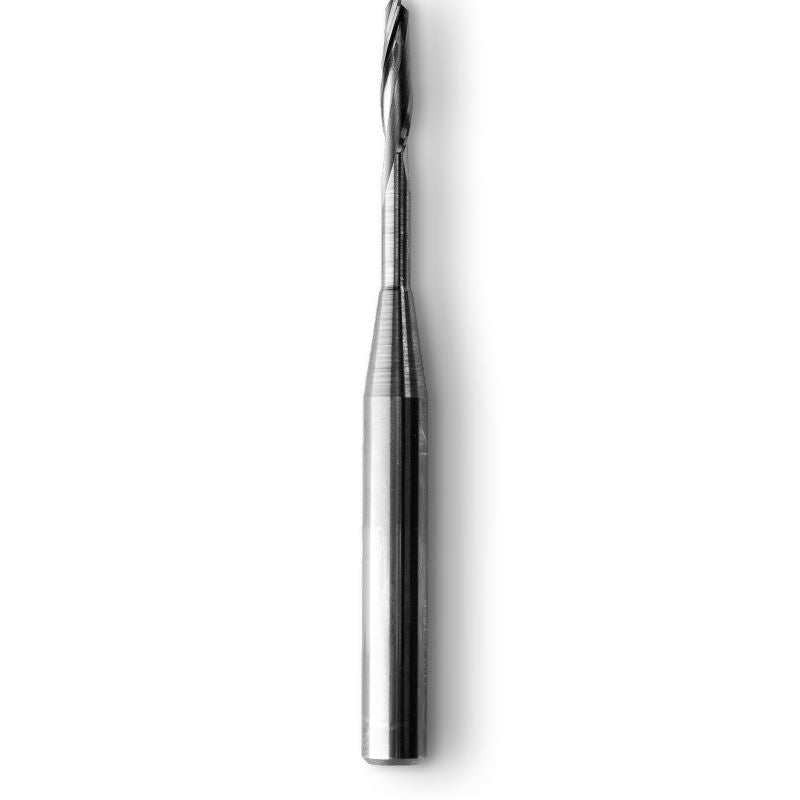

Spiral Up-Cut - 1/8" x 1/2"

Material — Solid Carbide
Overall Length — 2.0"
Shank Diameter — 0.25"
Cutter Diameter — 0.125"
Cutter Length — 0.50"
End Type — Flat Nose Upcut

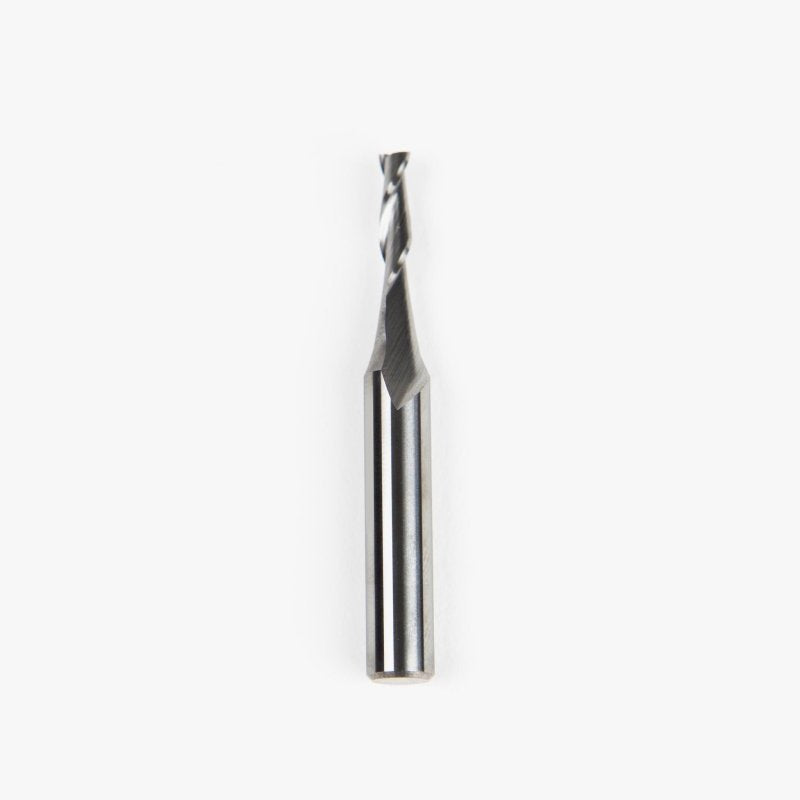

Spiral Up-Cut - 1/4" x 3/4"

Material — Solid Carbide
Overall Length — 2.5"
Shank Diameter — 0.25"
Cutting Diameter — 0.25"
Cutting Length — 0.75"
End Type — Flat Nose Upcut

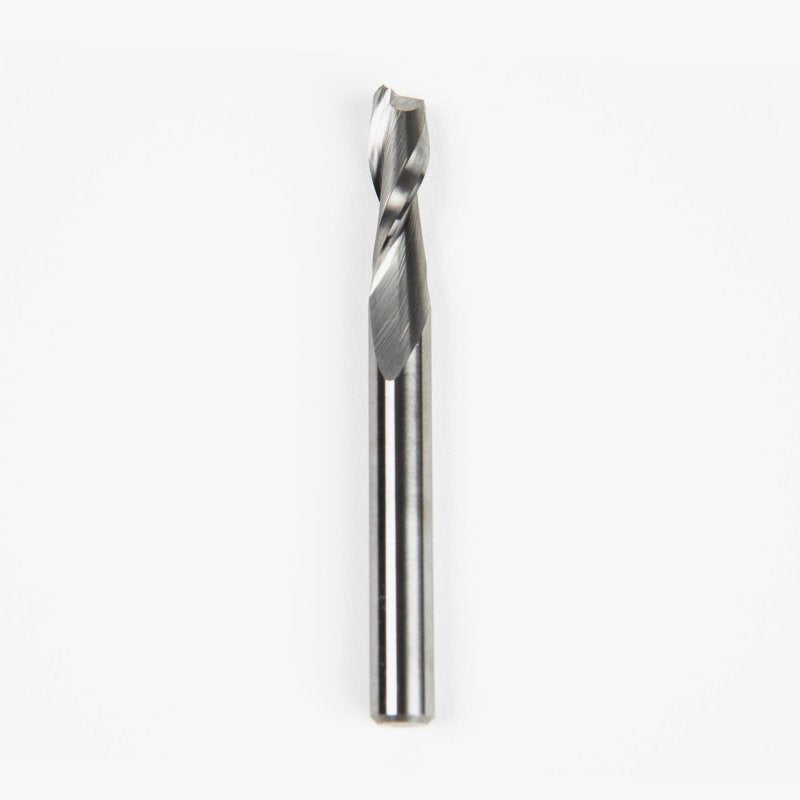

Spiral Up-Cut - 1/4" x 1"

Material — Solid Carbide
Overall Length — 2.5"
Shank Diameter — 0.25"
Cutting Diameter — 0.25"
Cutting Length — 1"
End Type — Flat Nose Upcut

Spiral Up-Cut - 4mm x 15m

Material — Solid Carbide
Overall Length — 80mm (~3-5/32")
Shank Diameter — 8mm
Cutting Diameter — 4mm
Cutting Length — 15mm
Usable Length — 30mm
End Type — Flat Nose Upcut

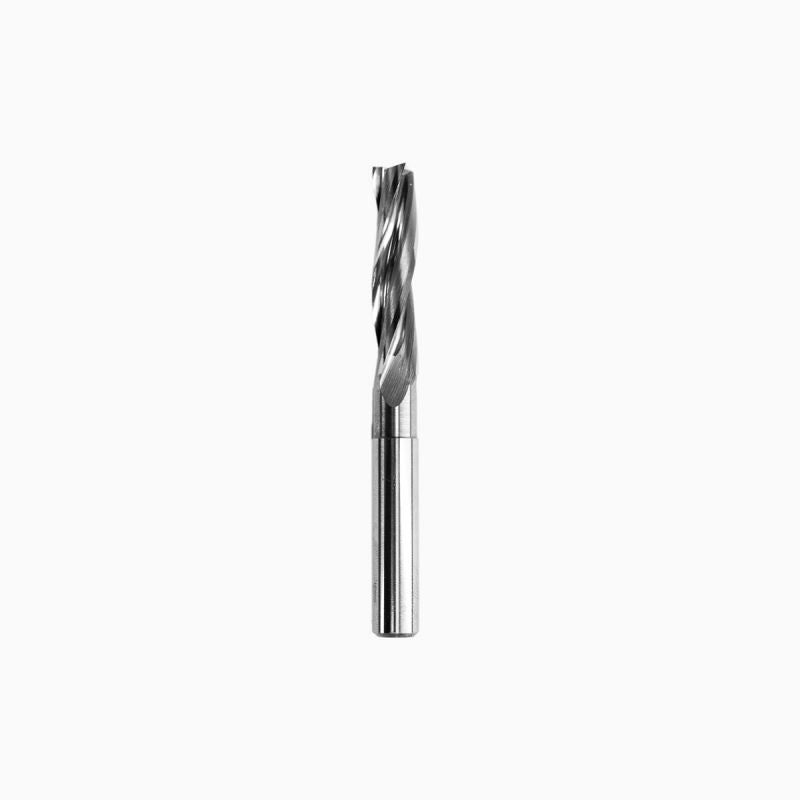

Spiral Up-Cut - 6mm x 30m

Material — Solid Carbide
Overall Length — 80mm (~3-5/32")
Shank Diameter — 8mm
Cutting Diameter — 6mm
Cutting Length — 30mm
Usable Length — 45mm
End Type — Flat Nose Upcut

Spiral Up-Cut - 8mm x 35m

Material — Solid Carbide
Overall Length — 85mm (~3-3/8")
Shank Diameter — 8mm
Cutting Diameter — 8mm
Cutting Length — 35mm
Usable Length — 47mm
End Type — Flat Nose Upcut

Due to Shaper policy, Highland Woodworking cannot ship Shaper products outside the U.S. Any Shaper order that we ship requires a U.S. shipping address.
