Shaper Tools Up-Spiral O-Flute Router Bits

$32.00 USD

Sale Sold out

Shipping calculated at checkout.

Bit Type 1/8 inch x 1/4 inch - 1/4 inch shank 1/8 inch x 1/2 inch - 1/4 inch shank 1/4 inch x 1-1/2 inch - 1/4 inch shank 5mm x 20mm inch - 8mm shank

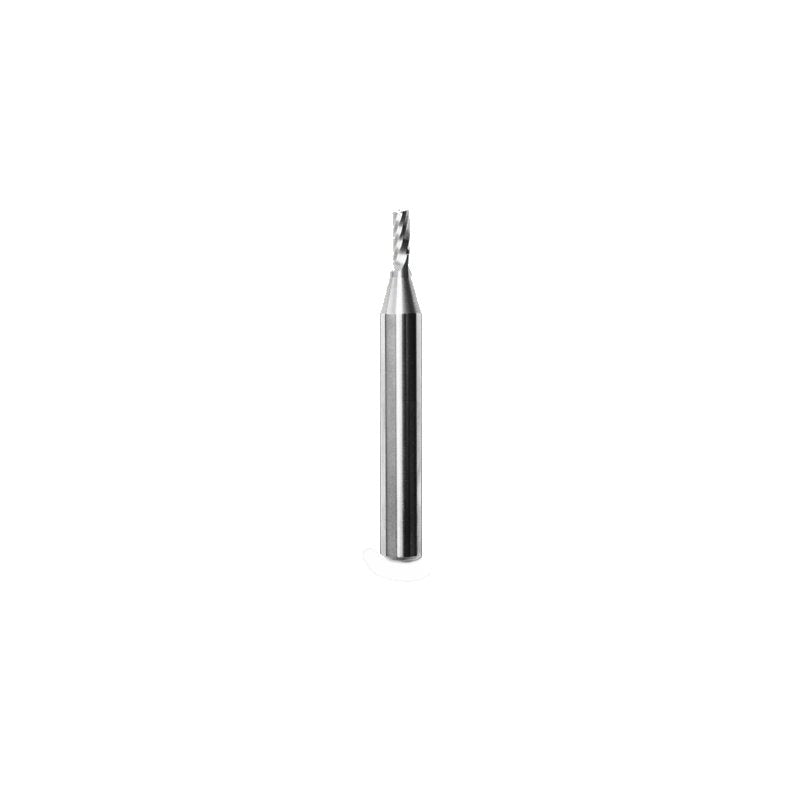

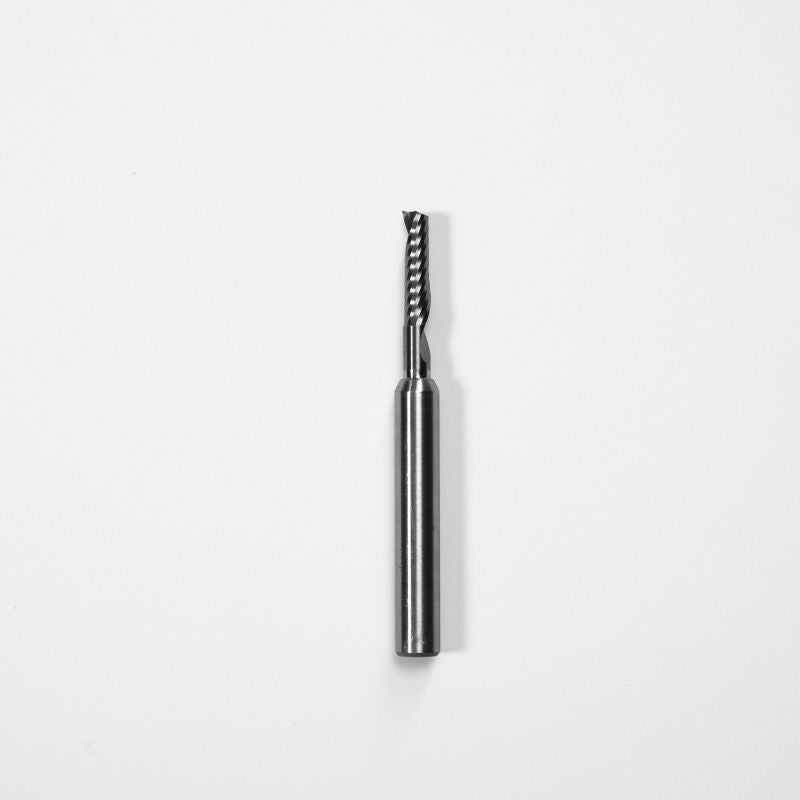

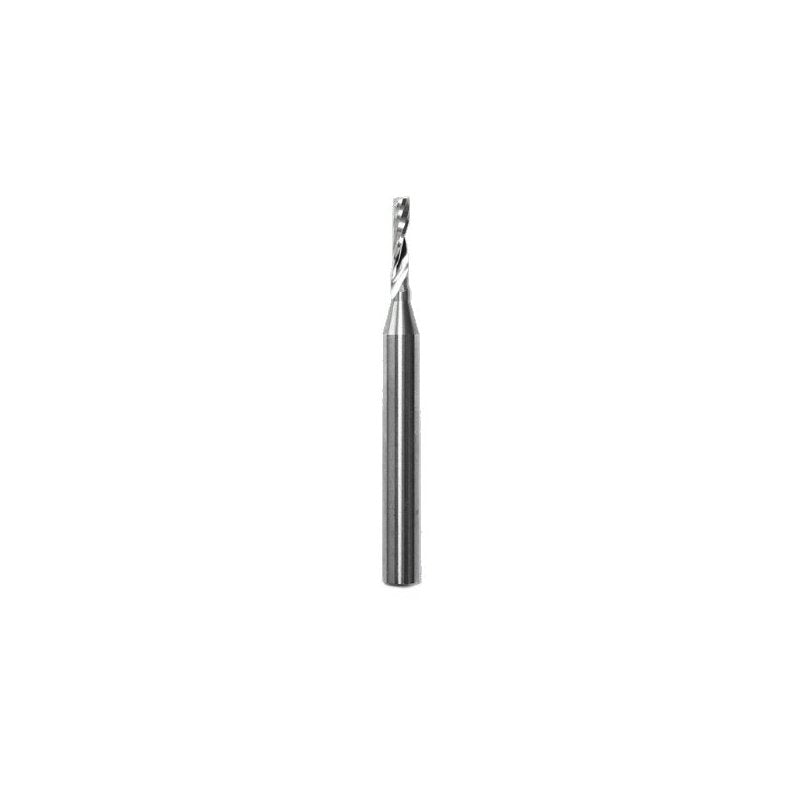

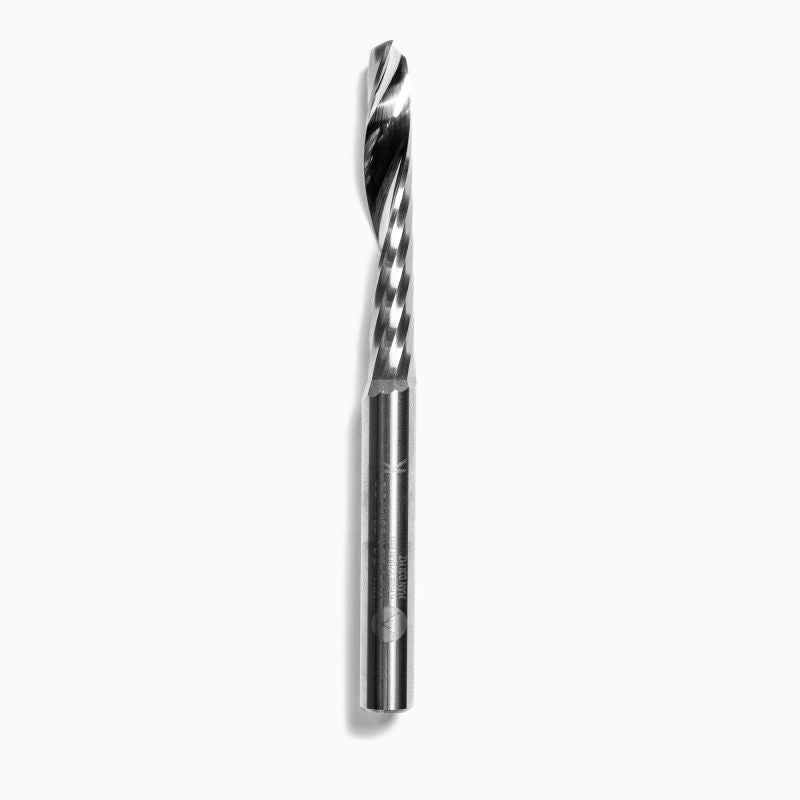

Shaper Tools Up-Spiral O-Flute Router Bits

Flat-nose Spiral Up-Cut Bits are the most commonly used bits for machining wood. They're available in 1/8" 1/4" & 8mm diameters. 1/4&quot is the most popular size.

O-Flute Spiral Up-Cut Bits are desgined for use in acrylics and non-ferrous metals. They have polished flutes to promote clean chip ejection.

Specifications

O-Flute Spiral Up-Cut - 1/8" x 1/4"

Material — Solid Carbide
Overall Length — 2"
Shank Diameter — 0.25"
Cutter Diameter — 0.125"
Cutter Length — 0.25"
End Type — Flat Nose Upcut

O-Flute Spiral Up-Cut - 1/8" x 1/2"

Material — Solid Carbide
Overall Length — 2.5"
Shank Diameter — 0.25"
Cutter Diameter — 0.125"
Cutter Length — 0.50"
End Type — Flat Nose Upcut

O-Flute Spiral Up-Cut - 1/4" x 1-1/2"

Material — Solid Carbide
Overall Length — 3"
Shank Diameter — 0.25"
Cutter Diameter — 0.25"
Cutter Length — 1.50"
End Type — Flat Nose Upcut

O-Flute Spiral Up-Cut - 5mm x 20mm

Material — Solid Carbide
Overall Length — 78mm
Shank Diameter — 8mm
Cutter Diameter — 5mm
Cutter Length — 20mm (~3/4")
End Type — Flat Nose Upcut

Due to Shaper policy, Highland Woodworking cannot ship Shaper products outside the U.S. Any Shaper order that we ship requires a U.S. shipping address.
