Stanley Block Plane Iron

We offer Stanley replacement irons for he models below. Please check your model AND specifications to be sure you order the correct one. If you don't see the size you need, we have a wider selection in Hock blades .

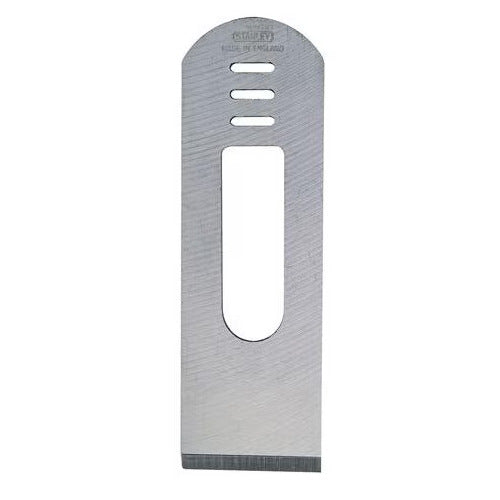

Stanley # 12-504

Replacement iron for the Stanley Low Angle Block Plane (model 60-1/2A, not 60-1/2) manufactured after 1988. Fits Stanley models 12-960 & 12-060. The blade is hardened, tempered high-carbon chrome steel for excellent edge retention.

Specifications

• Length - 4-3/8" (111mm)
• Blade Width - 1-3/8" (35mm)
• Blade Thickness - 0.094" (2.4mm)
• Bevel Angle - 25°
• Center Slot - 5/8" wide x 1-7/8" long
• Adjustment groves - three

Stanley # 12-508

Replacement iron for the Stanley Standard Angle Block Plane (model 9-1/2A, not 9-1/2) manufactured after 1988. Fits Stanley models 12-220G, 12-020G, 12-920 & 12-220. The blade is hardened, tempered high-carbon chrome steel for excellent edge retention.

Specifications

• Length - 4-3/8" (111mm)
• Blade Width - 1-5/8" (41mm)
• Blade Thickness - 0.094" (2.4mm)
• Bevel Angle - 25°
• Center Slot - 5/8" wide x 1-7/8" long
• Adjustment groves - three

Stanley # 12-143

Replacement iron for the modern Stanley Sweetheart Low Angle Block Plane (model 60-1/2). Fits Stanley model 12-139. The blade is extra-thick A2 steel for excellent edge retention.

Specifications

• Length - 4-1/4" (108mm)
• Blade Width - 1-5/8" (41mm)
• Blade Thickness - 1/8" (3.18mm)
• Bevel Angle - 25°
• Center Slot - 3/8" wide x 1-1/16" long
• Adjustment holes - two
