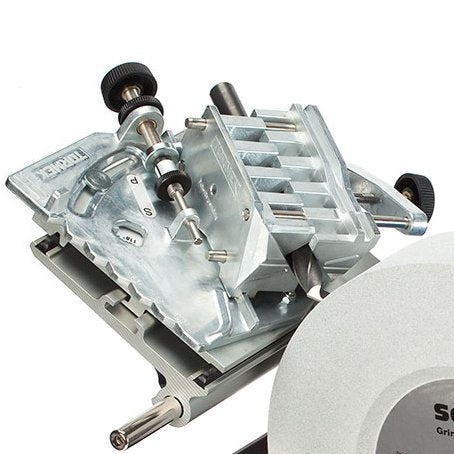

Tormek DBS-22 Drill Bit Sharpening Jig

Tormek's Drill Bit Sharpening Jig works with all Tormek sharpener models. The jig sharpens twist bits from 1/8" (3mm) to 7/8" (22mm) in diameter. In addition to providing an accurate & heat-free grind, the DBS-22 jig will grind a 4-facet chisel edge onto the bit end. This creates a crisp point compared to a conventional cone point bit and keeps your drill bit from walking as you begin the hole, while taking less thrust force to drill the hole. As a result, less heat is generated prolonging the life of the bit. You can set any point angle for the bit between 90° & 150° and at four different clearance angles, giving you the flexibility to provide the best bit geometry for a given drilling task.

Additional Information

Find details on the Tormek Drill Bit Sharpening Jig in the Tormek DBS-22 Drill Bit Sharpening Jig Brochure . The brochure includes answers to the most common questions we get asked about the drill jig:

• How does the Tormek Drill Bit Jig actually work?
• Why is Tormek's 4-facet point so beneficial?
• Why does a Tormek sharpened drill last longer?
• How do you know if the steel has become overheated when using a dry grinder?
