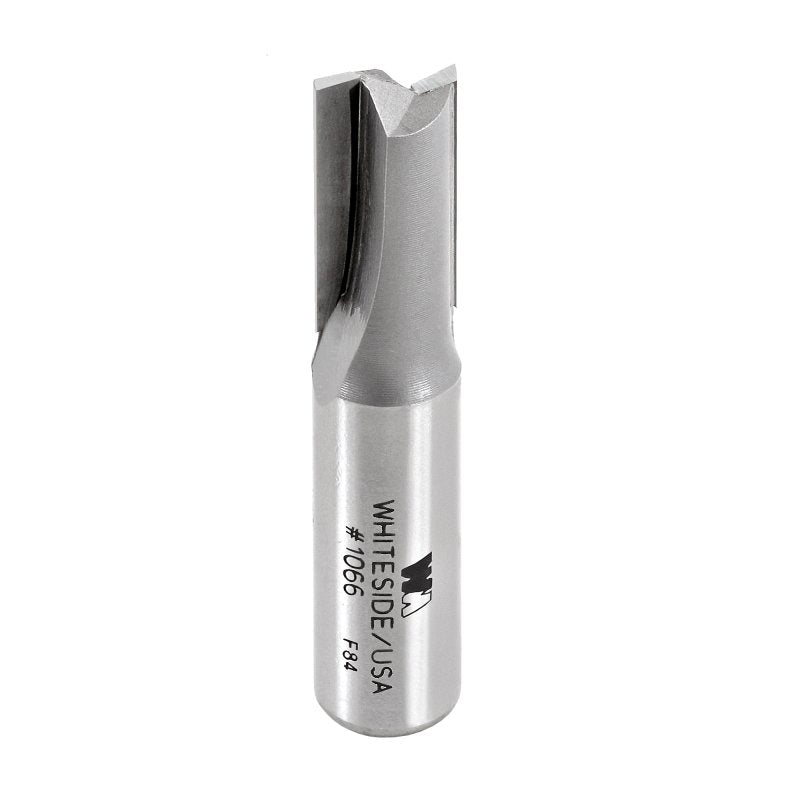

Whiteside Straight Router Bit
Whiteside Straight Router Bit
Couldn't load pickup availability
The versatile straight router bit is commonly used to rout grooves, dadoes and rabbets, rout mortises for hinges or tenons, cut grooves for inlays, flatten or shape panels, and cleanly cut round holes or holes of any desired shape. When used following a template, they also work well for making duplicates of simple or complex shapes.
All bits are carbide-tipped or solid carbide.
| Cutting Diameter | Cutting Length | OAL | Shank | HW # | Whiteside # | ||
|---|---|---|---|---|---|---|---|
| 1/16" | 3/16" | 1-1/2" | 1/4" | 109403 | SC062 ♦ ♦ | ||
| 1/8" | 3/8" | 2" | 1/4" | 109404 | SC09A ♦ | ||
| 3/16" | 1/2" | 2" | 1/4" | 109405 | SC11A ♦ | ||
| 7/32" | 3/4" | 2" | 1/4" | 109406 | SC13 ♦ | ||
| 15/64" - 6 mm | 3/4" | 2-3/4" | 1/2" | 109223 | SC235 ♦ | ||
| 1/4" | 3/4" | 2-1/4" | 1/4" | 102450 | 1013 | ||
| 1/4" | 3/4" | 2-3/8" | 1/2" | 108202 | 1058 | ||
| 1/4" | 1" | 2-1/4" | 1/4" | 108400 | 1014 | ||
| 5/16" | 1" | 2-3/4" | 1/4" | 102451 | 1020 ♦ | ||
| 5/16" | 1" | 2-5/8" | 1/2" | 108203 | 1060 | ||
| 5/16" | 1" | 2-3/4" | 8 mm | 104528 | 1020x8 ♦ | ||
| 3/8" | 1" | 2-1/2" | 1/4" | 108402 | 1022 | ||
| 3/8" | 1" | 2-5/8" | 1/2" | 108204 | 1062 | ||
| 3/8" | 1-1/4" | 2-7/8" | 1/2" | 102260 | 1063 | ||
| 7/16" | 1" | 2-1/2" | 1/4" | 108403 | 1024 | ||
| 7/16" | 1-1/4" | 3-1/4" | 1/2" | 102261 | 1065L♦ | ||
| 31/64" | 3/4" | 2-1/4" | 1/4" | 108404 | 1024A ♦ | ||
| 31/64" | 1" | 2-5/8" | 1/2" | 102262 | 1065A ♦ | ||
| 1/2" | 1" | 2-1/2" | 1/4" | 108405 | 1026 | ||
| 1/2" | 1" | 2-5/8" | 1/2" | 102263 | 1066 | ||
| 1/2" | 1-1/4" | 2-7/8" | 1/2" | 108206 | 1067 ♦ | ||
| 1/2" | 1-1/2" | 3-1/8" | 1/2" | 108207 | 1069 | ||
| 1/2" | 2" | 4-1/8" | 1/2" | 108208 | 1072 | ||
| 1/2" | 2-1/2" | 4-3/8" | 1/2" | 102264 | 1073 | ||
| 9/16" | 3/4" | 2-1/4" | 1/4" | 108406 | 1027 | ||
| 9/16" | 1-1/4" | 3" | 1/2" | 108209 | 1075 | ||
| 19/32" | 3/4" | 2-1/4" | 1/2" | 108210 | 1075A ♦ | ||
| 5/8" | 3/4" | 2-1/8" | 1/4" | 108407 | 1028 | ||
| 5/8" | 1-1/4" | 3" | 1/2" | 102265 | 1077 | ||
| 11/16" | 1-1/4" | 2-1/2" | 1/2" | 108211 | 1083 | ||
| 23/32" | 3/4" | 2-1/8" | 1/4" | 108408 | 1029A ♦ | ||
| 23/32" | 1" | 2-1/2" | 1/2" | 102266 | 1083A ♦ | ||
| 3/4" | 3/4" | 2-1/8" | 1/4" | 108409 | 1030 | ||
| 3/4" | 1-1/4" | 3" | 1/2" | 108212 | 1085 | ||
| 3/4" | 2" | 3-5/8" | 1/2" | 102268 | 1087 | ||
| 7/8" | 1-1/4" | 3" | 1/2" | 108213 | 1091 | ||
| 1" | 1-1/4" | 3" | 1/2" | 108214 | 1093 | ||
| 1" | 2" | 3-3/4" | 1/2" | 102269 | 1095 | ||
| 1-1/2" | 1-1/4" | 3" | 1/2" | 108215 | 1099 <18 | ||
| 1-3/4" | 1-1/4" | 3" | 1/2" | 108216 | 1100 <18 | ||
|
♦ Solid Carbide. ♦ Single Flute. ♦ Undersized for plywood dado. <18 Warning! Max RPM - 18,000 OAL = Over All Length ♦ Leigh Dovetail system equivalent. |
|||||||
About Whiteside
Whiteside Machine Company was founded in 1970 in Bill Whiteside's basement where he supplied tooling to NC's huge furniture making industry. Whiteside is still family-owned but has now grown to occupy a 40,000 square foot factory in Claremont, NC.
Whiteside offers a full range of router bits. Their rigid quality control and precision manufacturing techniques have repeatedly resulted in highest ratings in Fine Woodworking magazine tool reviews.
In the years that we've sold Whiteside router bits, we've experienced the company's commitment to excellent quality and superb customer service. We think you'll be pleased each time you use these fine tools in your shop.
We toured the Whiteside factory in Episode 1 of The Highland Woodworker. Watch the whole episode or just the factory tour (about 6:30).
