Whiteside Table Edge Router Bit
Whiteside Table Edge Router Bit
Couldn't load pickup availability
Table edge bits are similar to standard edge profile bits. However, they feature larger diameters for profiling large workpieces like tables.
| Profile |
Profile
Width |
Diameter |
Cutting
Height |
OAL | Shank | HW # | WM # | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|

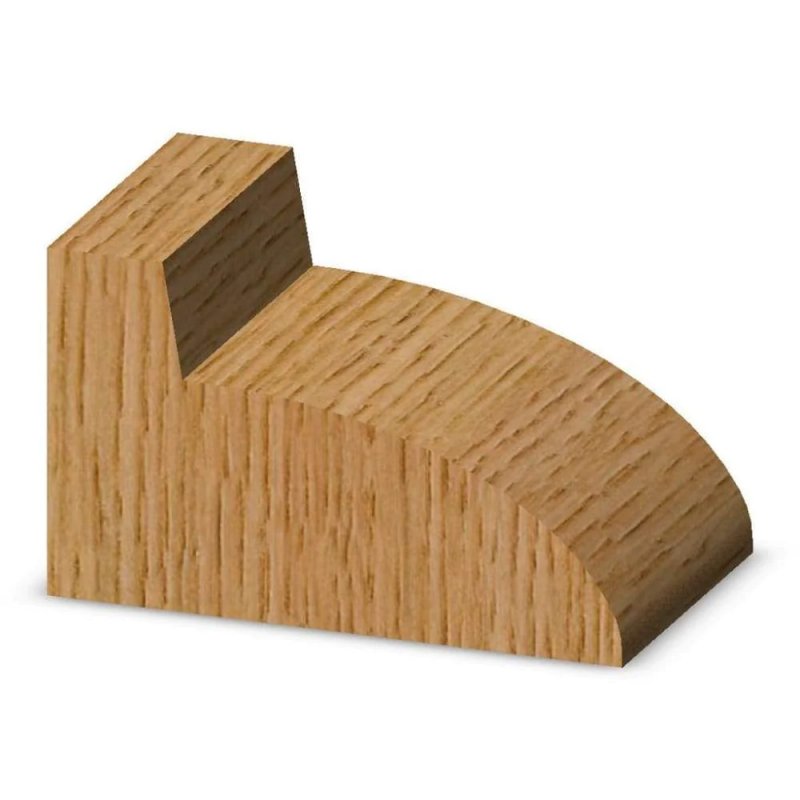

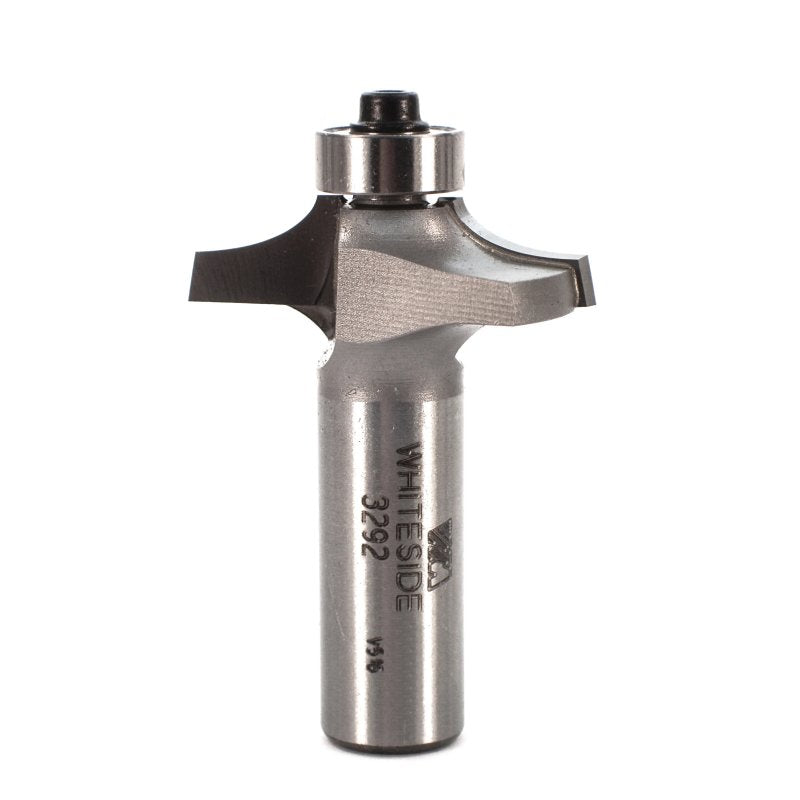

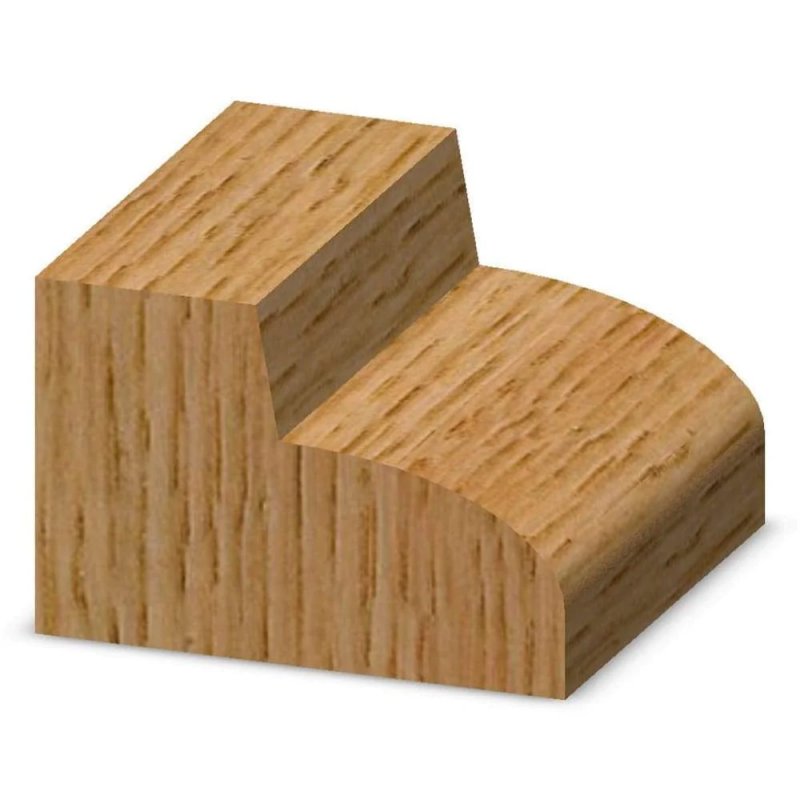

Small Thumbnail |
7/16" | 1-3/8" | 3/8" | 2" | 1/2" | 102217 |
3292
<18 |
||||

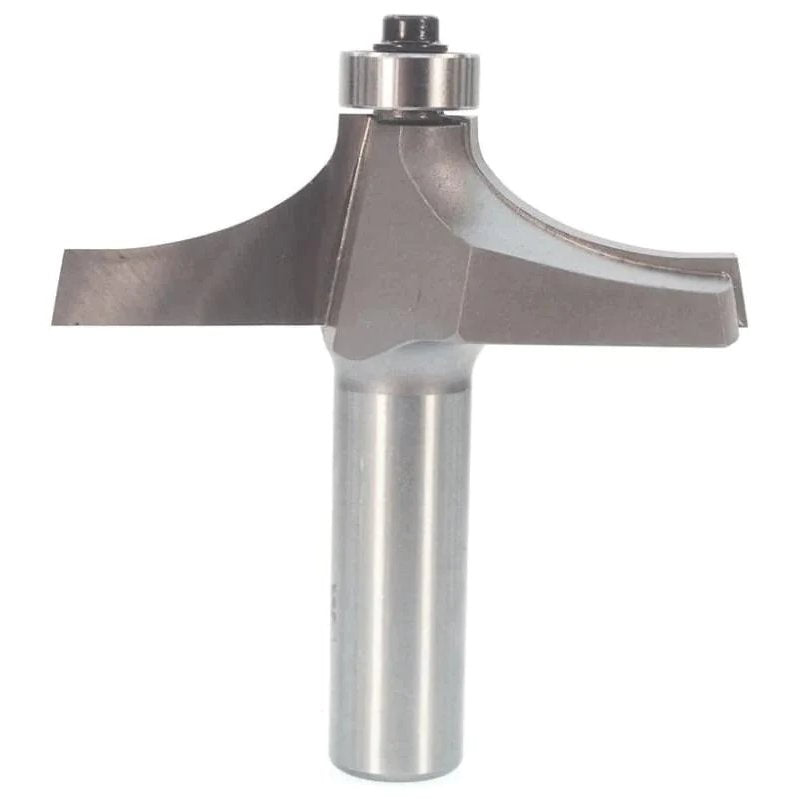

Large Thumbnail |
1" | 2-1/2" | 3/4" | 2-1/2" | 1/2" | 108273 |
3294
<12 |
||||

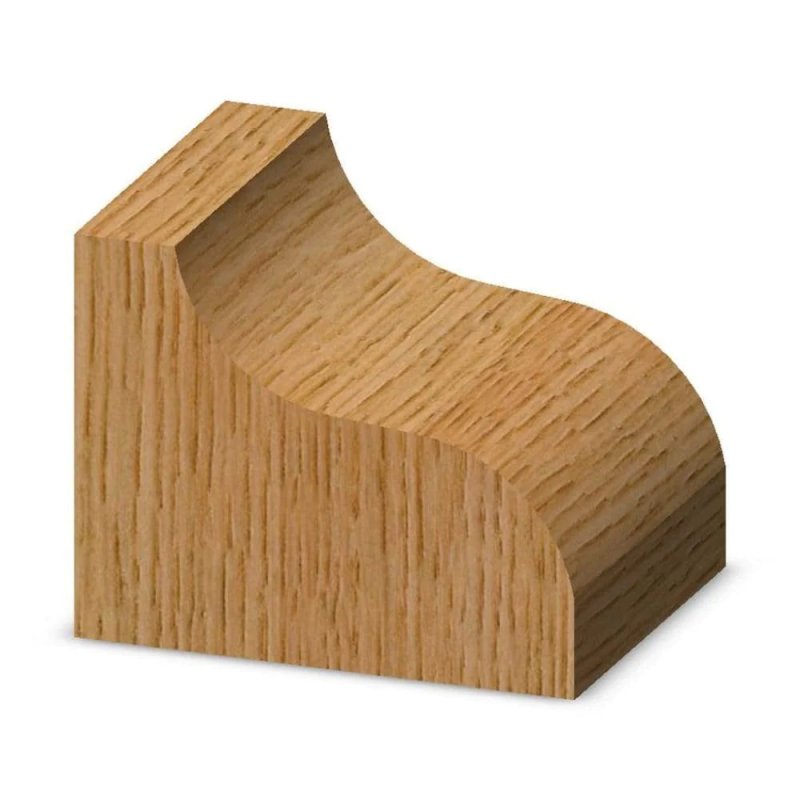

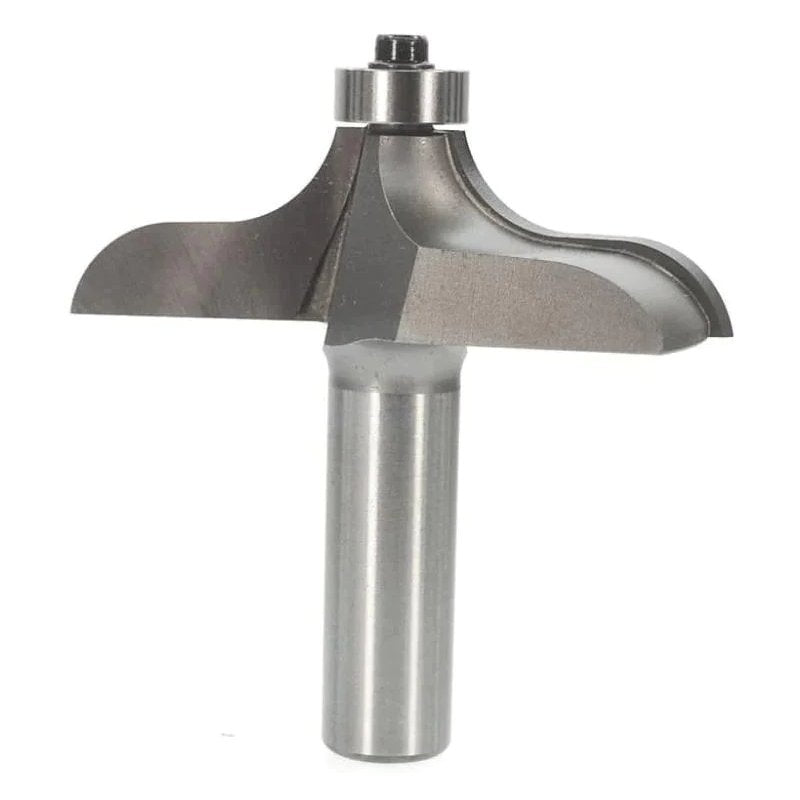

Traditional |
1" | 2-1/2" | 3/4" | 2-1/2" | 1/2" | 103235 |
3296
<12 |
||||

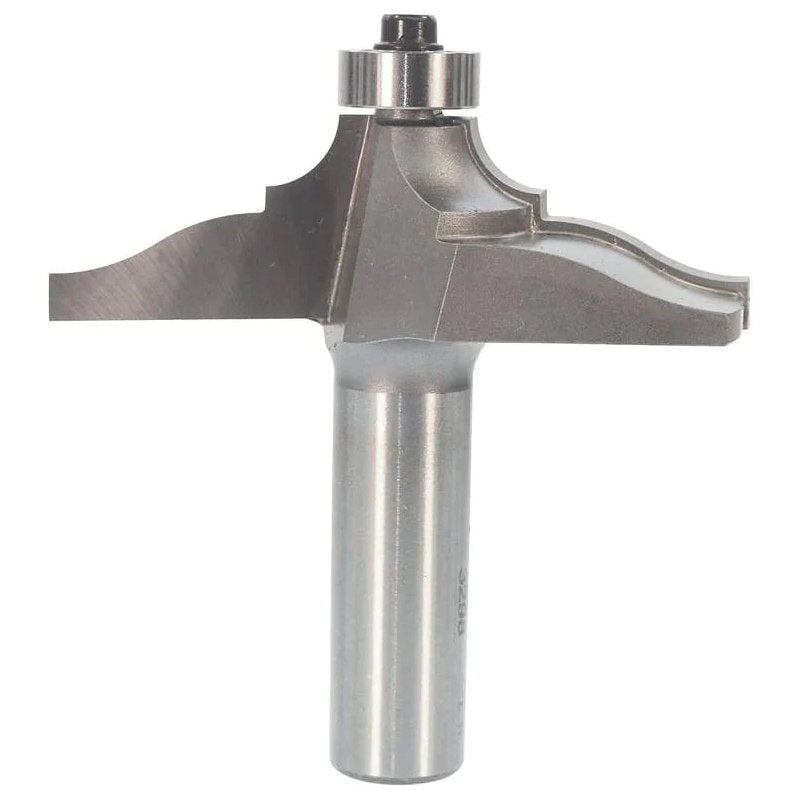

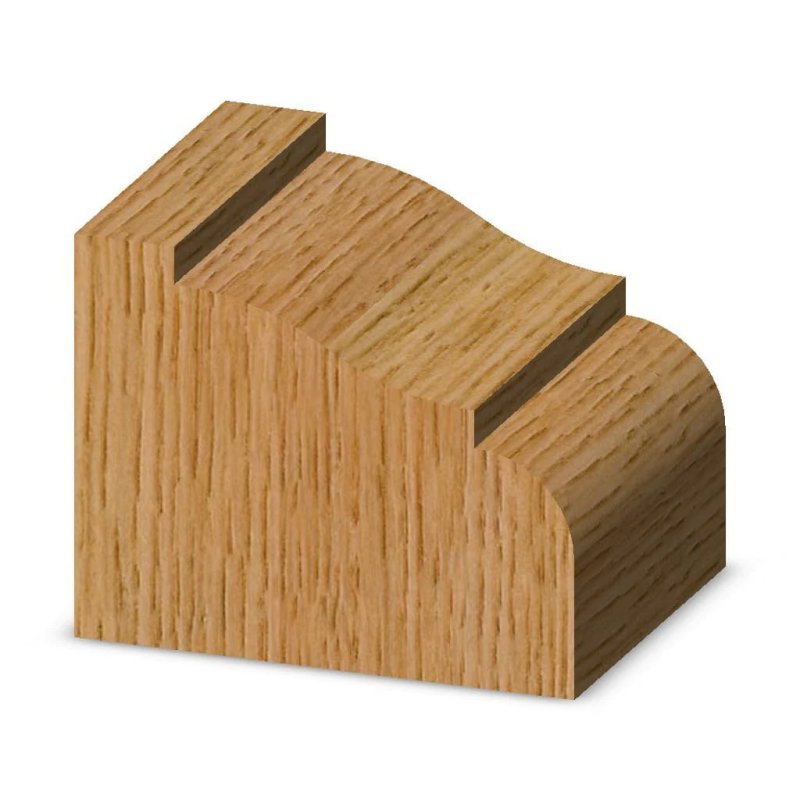

Classical Ogee |
1" | 2-1/2" | 3/4" | 2-1/2" | 1/2" | 108274 |
3298
<12 |
||||

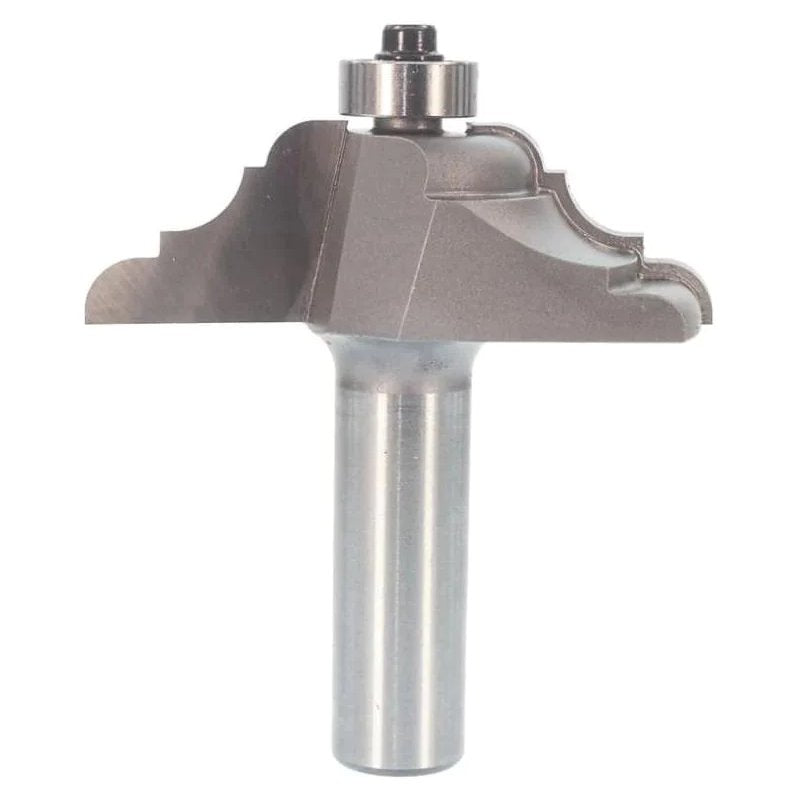

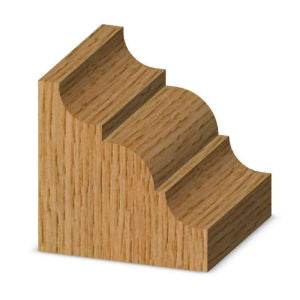

French Baroque |
7/8" | 2-1/4" | 3/4" | 2-1/2" | 1/2" | 108275 |
3300
<12 |
||||

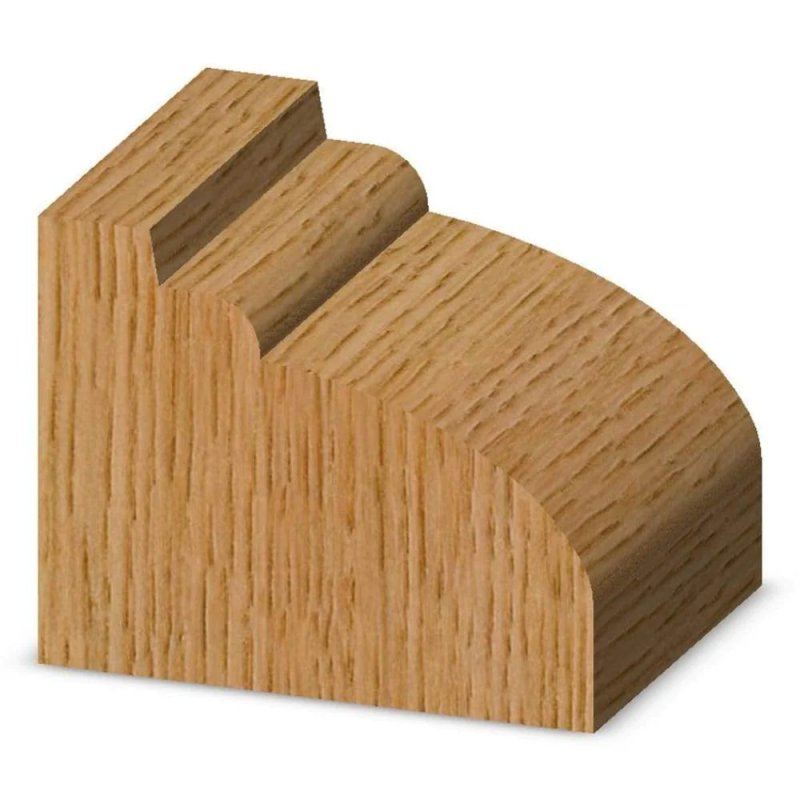

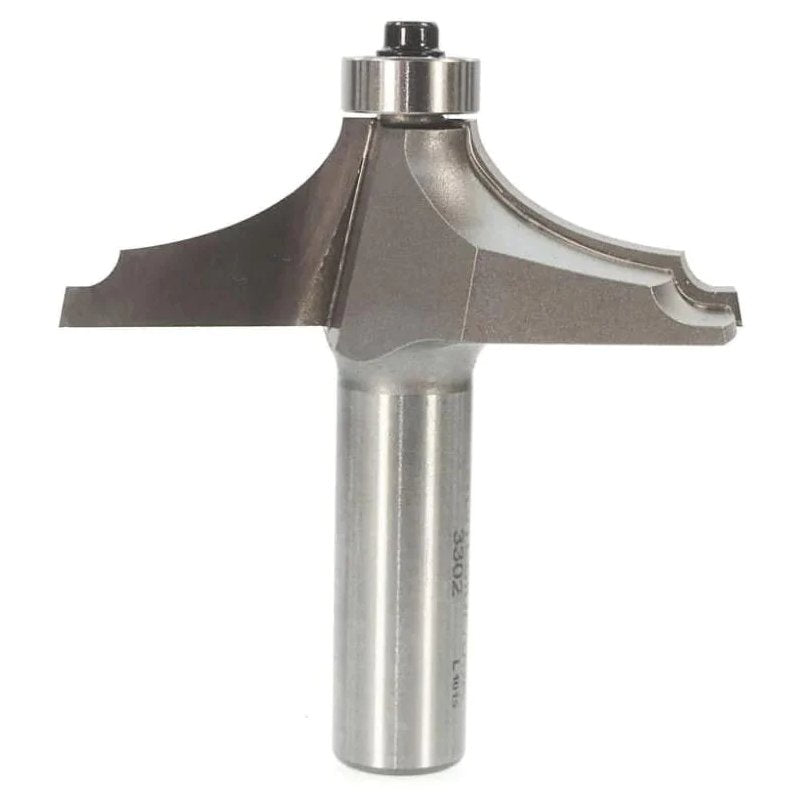

Thumbnail & Bead |
1" | 2-1/2" | 3/4" | 2-1/2" | 1/2" | 103240 |
3302
<12 |
||||
| All bits use a 3/16" ID x 1/2" OD bearing. | |||||||||||
| OAL = Over All Length | |||||||||||
| <18 Warning! Max RPM - 18,000 | |||||||||||
| <12 Warning! Max RPM - 12,000 | |||||||||||
